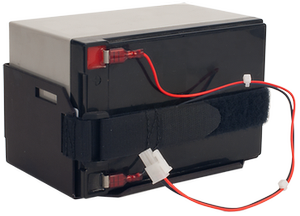

BP12 12 Ah 12 V Sealed Rechargeable Battery with Mounts

Overview

The BP12 is a rechargeable, 12 V, 12 Ah battery pack that can power a Campbell Scientific system that has components that have above-average power requirements, such as satellite transmitters.

Read More

Images

Detailed Description

The BP12 requires a regulated charging source (provided by the CH150 or CH200 regulator connected to an unregulated solar panel or a wall charger). The BP12 includes a 24 in. attached cable that terminates in a connector for attaching the battery to a CH150 or CH200 regulator. The BP12 also comes with a 24 in. cable for use with the CR6 datalogger or other products that need a pigtail termination instead of a white connector. (This cable is bagged and taped to the battery.) Switching the standard cable for the pigtail cable is easily accomplished by the user. The BP12 is shipped with hardware for mounting the battery in our enclosures. An ENC16/18 or larger enclosure is recommended.

Specifications

Battery Type Sealed lead acid (SLA)
UL Approval File Number MH16464
Output Voltage 12 Vdc
Nominal Rating 12 Ah
Battery Cables Length 0.6 m (2 ft)
Dimensions
  • 15.0 x 9.4 x 8.9 cm (5.9 x 3.7 x 3.5 in.) for battery only
  • 19.1 x 10.3 x 9.7 cm (7.5 x 4.0 x 3.8 in.) for battery with mounting bracket
Weight 4.4 kg (9.8 lb)

Compatibility

Note: The following shows notable compatibility information. It is not a comprehensive list of all compatible or incompatible products.

Mounting Equipment

Product Compatible Note
ENC10/12
ENC10/12R
ENC12/14
ENC14/16
ENC16/18

Miscellaneous

Product Compatible Note
34029
34031

Videos & Tutorials

Frequently Asked Questions

Number of FAQs related to BP12: 6

Expand AllCollapse All

  1. Are replacement lead wires sold for the BP12?

    Yes. These leads are pn 22024, Battery Cable.

  2. Should the BP12 be fully charged before deployment?

    Yes. It is a good idea to fully charge the BP12 with the CH100/CH200 before deployment.

  3. Why is the battery in the BP12 and BP24 assembly taller than the bracket?

    The discrepancy is not a mistake—the bracket is intentionally designed to be shorter than the battery. When mounted inside an enclosure, the back of the battery rests against the mounting grommets. The lid to the mounting bracket compresses the battery slightly, holding the battery firmly in place.

  4. Is the battery mounting bracket for the BP12 battery sold separately?

    Yes. The BP12 Mounting Bracket is available as pn 8061. To mount the bracket to the enclosure’s backplate, it may be necessary to purchase four pn 505 screws and four pn 6044 grommets.

  5. How can the age of a sealed rechargeable battery be determined?

    Look for a stamp on top of the battery. The stamp may be in a date format of YYMMDDXX where:

    • YY is the year.
    • MM is the month.
    • DD is the day.
    • XX is the manufacturing plant.

    This indicates the age of the battery.

  6. Can the BP12 be charged with commercially available chargers (trickle charge, float charge, etc.)?

    Trickle chargers and float chargers vary. It is possible to do this, but ensure that the regulator voltage will match the battery specifications [13.65 V – (18 mV) x (T-25°C)] for float charging.

Visit the FAQ Library
