14291 Field Power Cable, 12 Vdc Plug to Pigtail

Overview

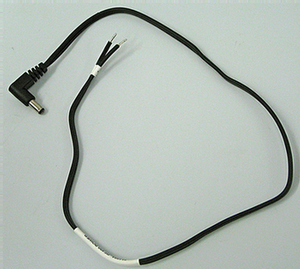

The 14291 power cable terminates in a barrel plug on one end and two pigtails on the other end. The cable is 2 ft long.

Read More

Images

Detailed Description

For some circumstances, the 14291 Field Power Cable is required for the datalogger to power a spread-spectrum radio, MD485 Multidrop Modem, or SC532A. The cable's right-angle barrel plug connects to the device, and its two-conductor pigtail connects to the 12V and G terminals of a datalogger.

The 14291 is required when the device is connected to the datalogger's RS-232 port instead of its CS I/O port. It is also required when the device is connected to the CS I/O port of an older datalogger. Newer dataloggers supply 12 V power on pin 8 of their CS I/O port. Some older dataloggers lack 12 V power on pin 8 and therefore require the 14291. The table below indicates whether or not 12 V is supplied on pin 8.

12 V on
pin 8
Product Description
yes CR10X wiring panel (black panel with green terminal blocks)
no CR10WP Wiring Panels (black panel with gray terminal strips, not green) used with CR10s and CR10Xs
no all CR10 silver wiring panels
yes CR23X
yes 21X with serial numbers >13,443
no 21X with serial numbers < 13,443
yes CR500 with serial numbers >1765
no CR500 with serial numbers < 1765
yes 700X with serial numbers >2779
no 700X with serial numbers < 2779


Prior to June 23, 2009, the 14291 had a straight barrel connector. The 14291 was redesigned to have a right-angle connector so that the cable would fit better in an enclosure.

Specifications

Voltage Rating 300 V
Amperage 7 to 10 A
Length 0.6 m (2 ft) including connector

DC Plug

Outer Diameter 0.55 cm (0.22 in.)
Inner Diameter 0.25 cm (0.1 in.)
Height 1.2 cm (0.47 in.)

Connector

Outer Diameter 0.94 cm (0.37 in.)
Length 3.0 cm (1.18 in.) including cable strain relief
Height 1.8 cm (0.71 in.)
