CM235 Magnetic Mounting Stand

Overview

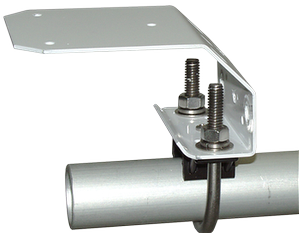

The CM235 consists of rectangular plate, mounting bracket, U-bolts, lock washers, and nuts. It allows one peripheral with a magnetic base to be mounted to a crossarm or mast. Devices that have a magnetic base include our GPS16X-HVS Geographic Position Receiver, some GPS antennas, and some short-range omnidirectional antennas.

Images


Specifications

Platform Area 8.8 x 8.8 cm (3.5 x 3.5 in.)
Dimensions 8.89 x 11.43 x 6.35 cm (3.5 x 4.5 x 2.5 in.)
Weight 0.32 kg (0.7 lb)

Compatibility

Note: The following shows notable compatibility information. It is not a comprehensive list of all compatible or incompatible products.

Mounting Equipment

Product Compatible Note
CM10 (retired)
CM106 (retired)
CM106B
CM110
CM115
CM120
CM202
CM202SS
CM203
CM204
CM204SS
CM206
CM6 (retired)
UT10
UT20
UT30

Additional Compatibility Information

Devices with a Magnectic Base

Devices that have a magnetic base include our GPS16X-HVS Geographic Position Receiver, some GPS antennas, and some short-range omnidirectional antennas.

Crossarms

The U-bolt and V-block use the bracket's bottom holes to attach to a crossarm.

Mast or Vertical Pole

The U-bolt and V-block use the bracket's side holes to attach to a tripod or tower mast or to a user-supplied vertical pole.

User-Supplied Vertical Pole

The CM235 can mount to a 0.75 to 1 in. IPS pipe (1 to 1.5 in. OD).
