SC110 Two Cables, RS-232 to Datalogger Control Port

Overview

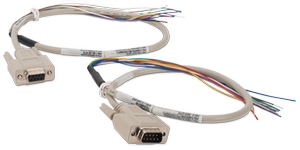

The SC110 consists of two cables to connect a datalogger with RS-232 DCE and DTE devices. One end of each cable provides stripped, tinned leads for attachment to the control ports on a CR800, CR850, CR1000, CR3000, CR6, or CR1000X datalogger. On the other end, one of the cables is fitted with a 9-pin male connector, and the other cable is fitted with a 9-pin female connector.

Read More

Benefits and Features

  • Connects RS-232 ports on devices to stripped wire ends that can connect to dataloggers

Images

Detailed Description

The SC110 provides (1) 17855 DTE Cable and (1) 17856 DCE Cable. On one end, both cables have stripped and tinned leads that connect to the COM ports of a CR800, CR850, CR1000, CR3000, CR6, or CR1000X. On the other end, the 17855 DTE cable has a 9-pin male connector, and the 17856 DCE cable has a 9-pin female connector. By having two cables, connection to either an RS-232 DCE or DTE device is supported—depending on the cable used.

Stripped-Tinned Leads:

Lead Color Desc. 17855
Connection
17856
Connection
White pin 2 Rx on logger Tx on logger
Brown pin 3 Tx on logger Rx on logger
Yellow pin 5 Gnd on logger Gnd on logger
Clear shield Gnd on logger Gnd on logger

Specifications

Length 0.6 m (2 ft) for each cable
Weight 0.1 kg (0.3 lb)

Compatibility

Datalogger Considerations

Compatible Dataloggers

CR200(X) Series CR800/
CR850
CR1000 CR3000 CR5000 CR7X CR9000X CR6 CR1000X

Frequently Asked Questions

Number of FAQs related to SC110: 1

  1. Most third-party modems require a null modem cable, SC105, SC110 cable, or SC932A to interface with a datalogger.  Many modems manufactured by Campbell Scientific can connect directly to a datalogger’s CS I/O port using an SC12 or serial cable.
