17855 Serial Cable, DB9 Male to Pigtail
Wires a DB9 Connection to a Terminal Block
weather applications water applications energy applications gas flux & turbulence applications infrastructure applications soil applications

Overview

The 17855 provides a convenient method for wiring a DB9 connection to a terminal block. One end of the cable is fitted with a DB9 male connector. The other end of the cable has stripped and tinned leads. This cable is commonly used to connect the RS-232 port of an AVW200, cellular modem, or other serial DCE device to the terminals on a datalogger.

Read More

Images

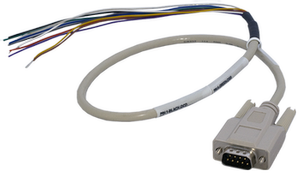

17855 serial cable
17855 serial cable
17855 serial cable
17855 serial cable
17855 connected to a datalogger and a serial modem
17855 connecting two dataloggers

Detailed Description

Stripped-Tinned Lead Connections:

Lead Color DB9 Pin Number DTE Function
Black 1 DCD
White 2 RD
Brown 3 TD
Red 4 DTR
Yellow 5 GND
Green 6 DSR
Blue 7 RTS
Purple 8 CTS
Gray 9 RI
Clear Shell GND

Specifications

Length 0.6 m (2 ft)
Weight 63 g (0.14 lb)

Compatibility

The 17855 is compatible with devices that have a DB9 female port or wiring terminals.
