Serial Communications Data cables for physical connections

About Serial Communications

Data cables are used to physically connect two devices so that data can be transmitted between them. For example, a data cable may be used to connect a data logger to a communication peripheral, a data logger to a computer, a computer to a communication peripheral, or one communication peripheral to another.

Product Line
Retired Products

Product Line

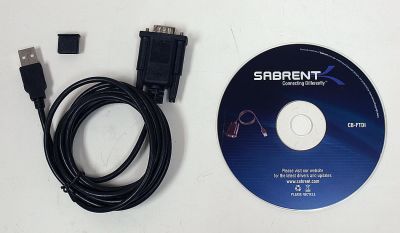

17394 Converter, USB to DB9 Pin (Male) RS-232

The 17394 is a six-foot interface cable fitted with a USB connector on one end and a 9-pin pin (male) RS-232 connector on the other end. The USB connector attaches to the USB port of a PC. The RS-232...read more

18663 Null Modem Cable, 9-Pin PIn (Male) to 9-Pin Pin (Male)

This 1 ft, null modem cable has 9-pin connectors on both ends for connecting the data logger's RS-232 port to a peripheral's RS-232 port. An interface such as the SC105 or SC932A is typically not requ...read more

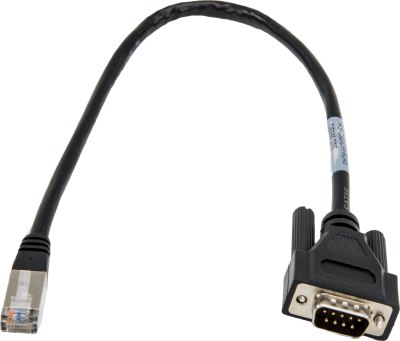

31055 CPI/RS-232 Data Cable, RJ45 to DB9 Pin (Male)

The 31055 adapts an RS-232/CPI RJ45 port to a DB9 pin (male) connector. This cable is offered to make it easier to connect a DCE serial device, such as a cellular modem, to the RS-232/CPI port. ...read more

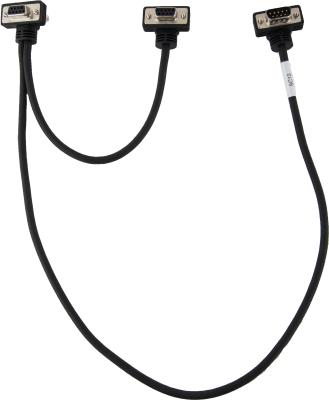

SC12 Robust CS I/O Cable, 2 ft

The SC12 is our standard cable for connecting the data logger's 9-pin serial I/O port to most peripherals with a 9-pin port. It is supplied with many of our standard communications peripherals. ...read more

Other Products

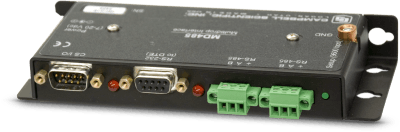

MD485 RS-485 Multidrop Interface

The MD485 is an intelligent RS-485 interface that permits a PC to address and communicate with one or more data loggers over a distance of up to 1200 m. This interface also supports data-logger-to-dat...read more

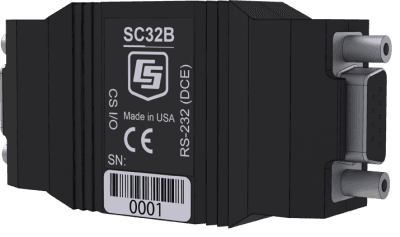

SC32B Optically Isolated RS-232 Interface

The SC32B Optically Isolated Interface is used to connect the CS I/O port on a data logger with the RS-232 port on a PC. This interface converts the RS-232 voltage levels of the computer to the CMOS l...read more

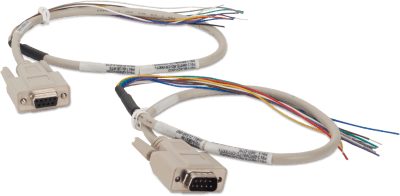

SC110 Two Cables, RS-232 to Data Logger Control Port

The SC110 consists of two cables to connect a data logger with RS-232 DCE and DTE devices. One end of each cable provides stripped, tinned leads for attachment to the control ports on a CR800, CR850,...read more

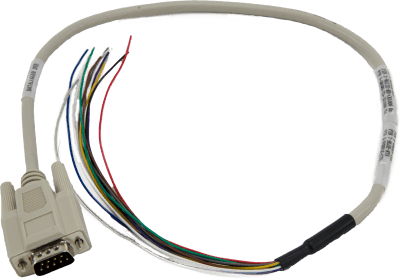

17855 Serial Cable, DB9 Pin (Male) to Pigtail

The 17855 provides a convenient method for wiring a DB9 connection to a terminal block. One end of the cable is fitted with a DB9 pin (male) connector. The other end of the cable has stripped and tinn...read more

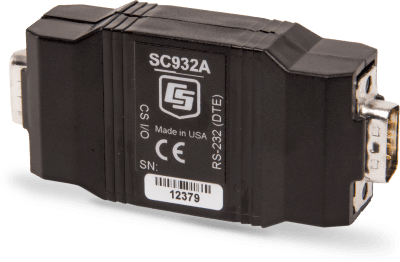

SC932A RS-232 DCE Interface, CS I/O to 9-Pin

The SC932A supports two-way communications between a data logger and a device that is configured with an RS-232 DCE serial port. Common Campbell Scientific devices used with the SC932A include our SRM...read more

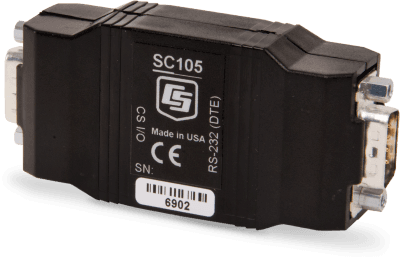

SC105 CS I/O to 9-Pin RS-232 DCE Synchronous Interface

The SC105 is a CS I/O to RS-232 adapter used to connect a Campbell Scientific data logger to an RS-232 DCE device. Common DCE devices used with the SC105 include cellular modems, radios, and smart ser...read more

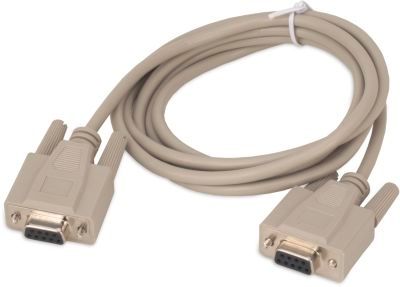

13657 Null Modem Cable, 9-Pin Socket (Female) to 9-Pin Socket (Female)

The 13657 null modem cable has DB9 socket (female) to DB9 socket (female) connectors. The length is 6 ft (2 m). This cable is commonly used with the NL100, SDM-CAN, and SDM-SIO4 peripherals.read more

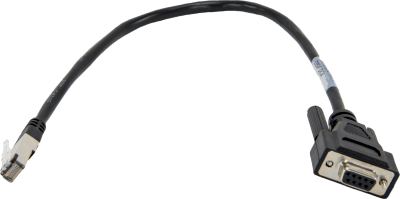

31056 CPI/RS-232 Data Cable, RJ45 to DB9 Socket (Female)

The 31056 adapts an RS-232/CPI RJ45 port to a DB9 socket (female) connector. This cable is offered to make it easier to connect a DTE serial device, such as a computer or terminal server, to the RS-23...read more

10873 Serial Data Cable, 9-Pin Socket (Female) to 9-Pin Pin (Male)

The 10873 is a serial cable that is useful for connecting the RS-232 port of the data logger to the 9-pin RS-232 port of a computer. The cable is six feet long.read more

SC12R-6 Robust CS I/O Cable, 6 ft

The SC12R-6 connects two or more 9-pin peripherals to the CS I/O port of a Campbell Scientific data logger. The SC12R-6 may be "daisy-chained" to connect one additional peripheral with each additional...read more

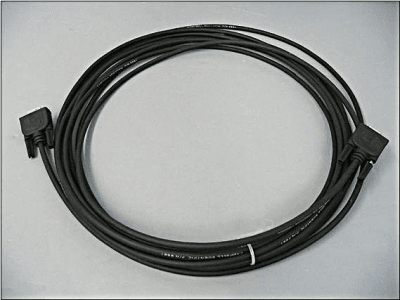

COMCBL2-L Weatherproof Cable, 9-Pin Pin (Male) to 9-Pin Socket (Female)

This weatherproof cable is terminated with a D-sub 9-pin pin (male) (DE-9M) connector on one end and a D-sub 9-pin socket (female) (DE-9F) connector on the other. A typical use is to connect a sensor...read more

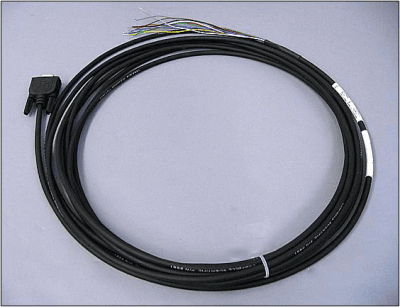

COMCBL1-L Weatherproof Cable with Pigtails, 9-Pin Pin (Male)

This weatherproof cable is terminated with a D-sub 9-pin pin (male) (DE-9M) connector on one end and a pigtail on the other. A typical use is to connect a sensor or peripheral with a DE-9F connection...read more

SC929 Interface Cable, CS I/O to RS-232

The SC929 is a cable interface between a data logger and a computer. One end of the cable connects to the data logger's CS I/O port. The other end connects directly to the 9-pin serial port of a compu...read more

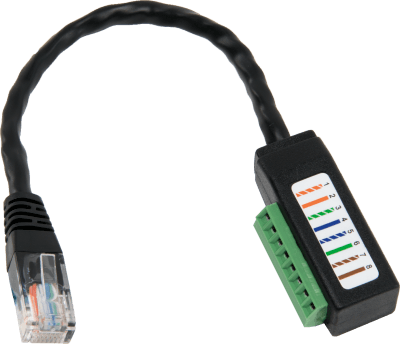

31897 RJ45 Pin (Male) to Terminal Dongle Data Cable

The 31897 can be plugged into the RJ45 RS-232 port on a CR6 or CR1000X datalogger to connect the data logger to an RS-232 sensor. read more

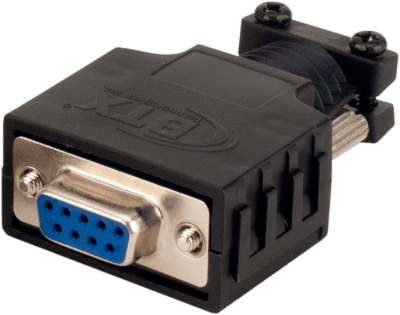

28840 Interface with Hood and Hardware Kit, DB9 Socket (Female) to Terminal Block

This interface is a socket (female) fitting that allows wiring of a serial device with stripped and tinned leads to a serial port. A protective hood for the fitting is included.read more

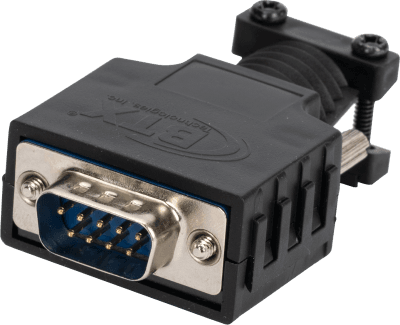

28841 Interface with Hood and Hardware Kit, DB9 Pin (Male) to Terminal Block

This interface is a pin (male) fitting that allows wiring of a serial device with stripped and tinned leads to a serial port. A protective hood for the fitting is included.read more

10871 RS-232 Data Cable Adapter, DB9 Pin (Male) to DB25 Socket (Female)

The 10871 provides a 9-pin pin (male) connector on one end and a 25-pin socket (female) connector on the other end. Typically, this serial adapter is used to connect the data logger's 9-pin RS-232 por...read more

15751 RS-232 Data Cable Adapter, DB9 Socket (Female) to DB25 Pin (Male)

This specialized 9-pin to 25-pin adapter is commonly used to connect a RAD modem with a data logger.read more

7026 RS-232 Data Cable, DB9 Socket (Female) to DB25 Pin (Male)

The 7026 is a molded, jacketed, serial cable. It is typically used to connect Campbell Scientific interfaces with 25-pin serial connectors (e.g., SC32A, SC532A, SC932A) to a computer with a 9-pin seri...read more
