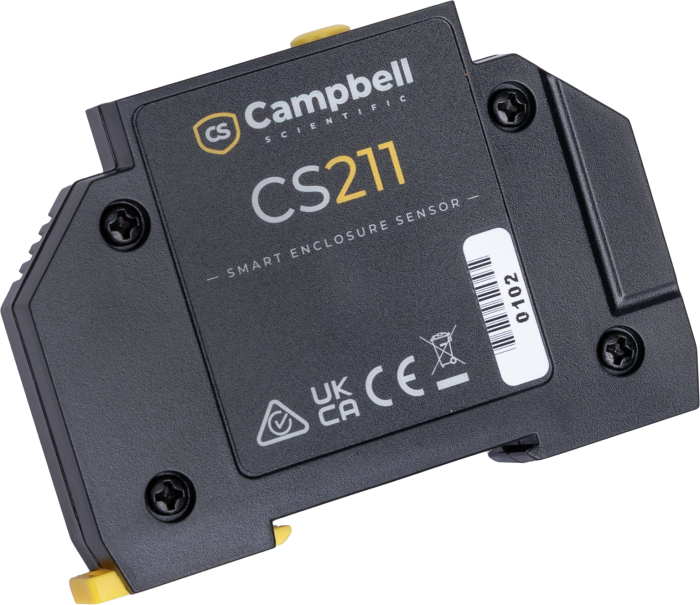

CS211 Smart Enclosure Sensor
Compact Enclosure Monitoring Sensor
Monitor temperature, relative humidity, and door activity
weather applications water applications energy applications gas flux and turbulence applications infrastructure applications soil applications

Overview

The CS211 is a low-power, smart sensor designed to monitor temperature and humidity levels inside enclosures. The sensor features an optical door switch to detect door openings and closings, and a multifunctional button that recognizes short, long, and double presses for user-defined actions. Additionally, the CS211 includes an LED indicator to signal enclosure wetness and when desiccant needs to be replaced.

This DIN rail-mountable sensor is compatible with any SDI-12 data logger, providing a reliable way to monitor your equipment and maintain your measurement accuracy.

Read More

Benefits and Features

  • Reports the enclosure state, which emulates a desiccant indicator card and can be measured remotely via a data logger
  • Detects door opening and closing events without the need for additional hardware
  • Has a multifunctional button to trigger customizable data logger functions
  • Offers an SDI-12 direct connection to a Campbell Scientific data logger

Images

Detailed Description

The CS211 comes with three 61 cm (24 in.) long cables to connect from the screw terminal of the CS211 to the data logger.

The CS211 uses an optical sensor and the LED to detect if the enclosure door is open or closed. A combination of ambient light and reflected light measurements are used to determine the state of the door. To enable this feature, install the included reflective tape inside the enclosure door, such that it is directly in front of the sensor when the door is closed.

In addition to direct temperature and humidity measurements, the CS211 calculates a wetness ratio and enclosure state to provide insights into the internal conditions of the enclosure over the past 24 hours (or since the device was last powered up). The LED will flash every 5 seconds to indicate the status.

Compatibility

Note: The following shows notable compatibility information. It is not a comprehensive list of all compatible or incompatible products.

Mounting Equipment

Product Compatible Note
ENC100
ENC10/12
ENC12/14
ENC14/16
ENC16/18
ENC8/10

Additional Compatibility Information

The CS211 is compatible with any SDI-12 data logger.

Specifications

Operating Temperature Range -40° to +60°C
Operating Relative Humidity Range 0 to 100% RH (non-condensing)
Startup Time 3 s
Cable Length 61 cm (24 in.) each
Dimensions 80 x 59 x 15 mm (3.15 x 2.32 x 0.59 in.)
Weight 40 g (1.41 oz)

Measurement Uncertainty
Temperature ±0.4°C (-40° to +60°C)
Relative Humidity ±3% RH (10 to 90% RH) at 25°C

Power Supply
Voltage 7 to 28 Vdc
Average Current < 100uA
Peak Current < 30mA

Downloads

CS211 Program Example (2 KB) 05-12-2025

This example program demonstrates how to use the CS211 with the SDI-12 R0!, R2!, and R3! commands. It was written for a CR1000X, but the programming for other data loggers will be similar.

  • The R0! command retrieves temperature, humidity, door state, and enclosure state.

  • The R2! command returns the count of single, double, and long button presses.

  • The R3! command reports the current door state and wetness ratio.
