Standard Enclosures A variety of sizes to house a data logger, power supply, and at least one peripheral

Enclosures / Standard Enclosures

About Standard Enclosures

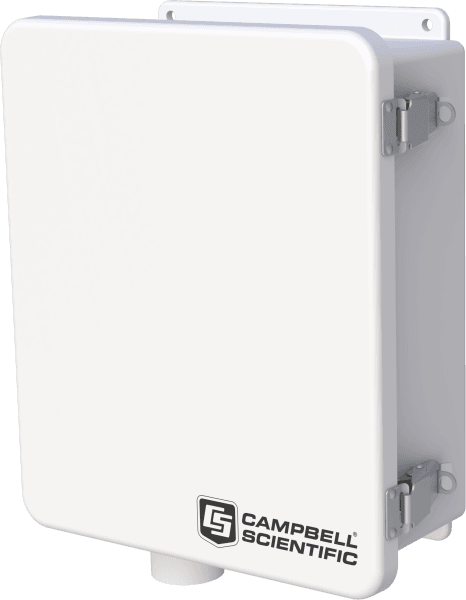

Standard enclosures are designed to house a data logger, power supply, and at least one peripheral. The enclosures’ backplates enable easy mounting and rearranging of devices. Standard enclosures are available in a variety of sizes and are listed by their internal dimensions (in inches). Larger data loggers may have their own enclosure options.

Product Line
Retired Products
Documents

Product Line

	Construction	Enclosure Classification	Dimensions

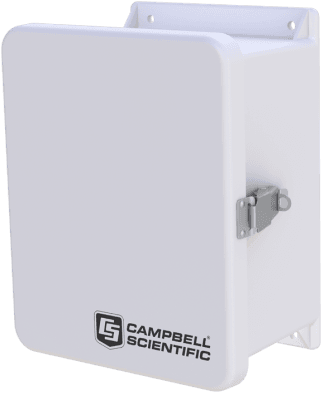

ENC8/10 Weather-Resistant Enclosure, 8 x 10 inches	Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps	NEMA 4X (before being modified for cable entry, conduit, or ground lug)	24,8 x 19.7 x 15.9 cm (9.7 x 7.7 x 6.3 in.) internal 30.4 x 23.9 x 16.5 cm (12.0 x 9.4 x 6.5 in.) external
ENC10/12 Weather-Resistant Enclosure, 10 x 12 inches	Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps	NEMA 4X (before being modified for cable entry)	30.5 x 25.4 x 11.4 cm (12 x 10 x 4.5 in.) internal 34.06 x 29.03 x 13.23 cm (13.41 x 11.43 x 5.21 in.) external
ENC10/12R Raised Lid Enclosure, 10 x 12 inches	Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps	NEMA 4X (before being modified for cable entry, conduit, or ground lug)	30.5 x 25.4 x 14 cm (12 x 10 x 5.5 in.) internal 28.42 x 23.44 x 15.09 cm (11.19 x 9.23 x 5.94 in.) internal under the lid space 34.06 x 29.03 x 16.76 cm (13.41 x 11.43 x 6.6 in.) external

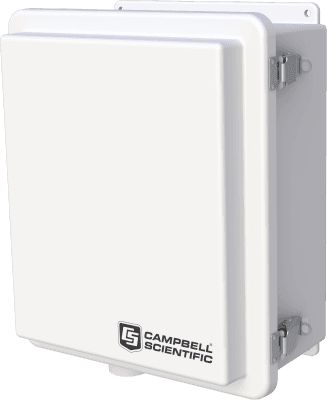

ENC12/14 Weather-Resistant Enclosure, 12 x 14 inches	Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps	NEMA 4X (before being modified for cable entry, conduit, or ground lug)	35.6 x 30.5 x 14 cm (14 x 12 x 5.5 in.) internal 33.48 x 28.32 x 17.6 cm (13.18 x 11.15 x 6.93 in.) internal under the lid space 39.12 x 33.96 x 19.51 cm (15.4 x 13.37 x 7.68 in.) external

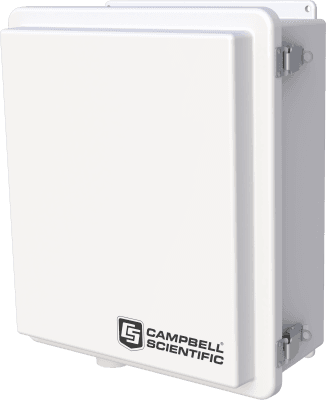

ENC14/16 Weather-Resistant Enclosure, 14 x 16 inches	Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps	NEMA 4X (before being modified for cable entry)	40.6 x 35.6 x 14 cm (16 x 14 x 5.5 in.) internal 38.63 x 33.66 x 17.6 cm (15.21 x 13.25 x 6.93 in.) internal under the lid space 44.27 x 39.19 x 19.58 cm (17.43 x 15.43 x 7.71 in.) external

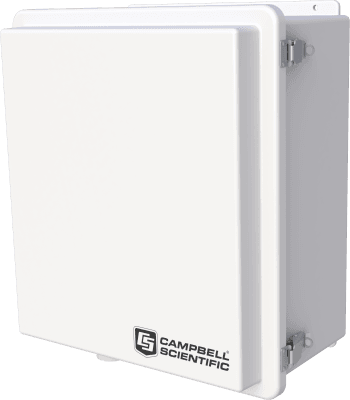

ENC16/18 Weather-Resistant Enclosure, 16 x 18 inches	Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps	NEMA 4X (before being modified for cable entry)	45.7 x 40.6 x 22.9 cm (18 x 16 x 9 in.) internal 43.82 x 38.74 x 25.22 cm (17.25 x 15.25 x 9.93 in.) internal under the lid space 49.53 x 44.4 x 26.98 cm (19.5 x 17.48 x 10.62 in.) external
ENC16/18UL Weather-Resistant Enclosure, 16 x 18 inches with UL508A Compliance	Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps	NEMA 4X	45.7 x 40.6 x 22.9 cm (18 x 16 x 9 in.) internal 43.82 x 38.74 x 25.22 cm (17.25 x 15.25 x 9.93 in.) internal under the lid space 49.53 x 44.4 x 26.98 cm (19.5 x 17.48 x 10.62 in.) external

Other Products

	Construction	Enclosure Classification	Dimensions

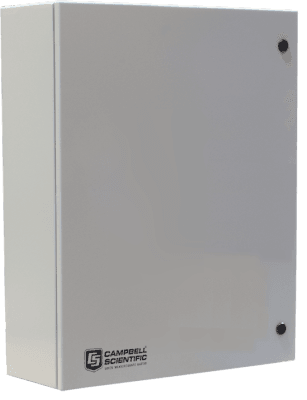

ENC24/30 Painted Steel Enclosure, 24 x 30 inches	Painted, 14-gauge, mild steel with door gasket and stainless-steel hinges	NEMA Type 3R, 4, and 12 (before being modified for cable entry)	61 x 76 x 20 cm (24 x 30 x 8 in.)
ENC24/30UL Painted Steel Enclosure, 24 x 30 inches with UL508A Compliance	Painted, 14-gauge, mild steel with door gasket and stainless-steel hinges	NEMA Type 3R, 4, and 12	61 x 76 x 20 cm (24 x 30 x 8 in.)
ENC24/30S Stainless-Steel Enclosure, 24 x 30 inches	Formed, 14 gauge, 304 stainless steel with door gasket and stainless-steel hinges	NEMA Type 3R, 4X, 12, and 13 (before being modified for cable entry)	61 x 76 x 20 cm (24 x 30 x 8 in.)
ENC24/30SUL Stainless-Steel Enclosure, 24 x 30 inches with UL508A Compliance	Formed, 14 gauge, 304 stainless steel with door gasket and stainless-steel hinges	NEMA Type 3R, 4X, 12, and 13	61 x 76 x 20 cm (24 x 30 x 8 in.)

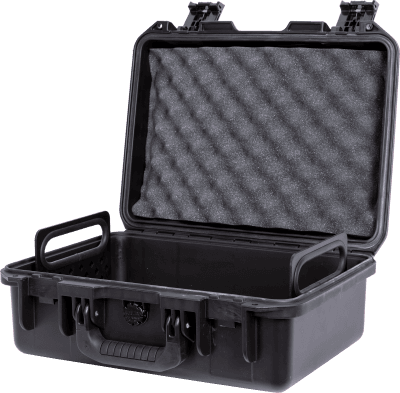

DAQ Case 15 Data Acquisition (DAQ) Laboratory and Field Case	Injection-molded HPX™ high-performance resin with VALOX™-Polybutylene Terephthalate (PBT) latches, EPDM O-ring material, and stainless-steel pins	IP67 (without modifications)	38.1 x 26.7 x 15.2 cm (15.0 x 10.5 x 6.0 in.) internal 41.1 x 32.3 x 16.8 cm (16.2 x 12.7 x 6.6 in.) external
