Distributed Data Acquisition / GRANITE Data Acquisition (DAQ)
GRANITE Data Acquisition (DAQ)

For more information about data acquisition systems and our GRANITE series of products, visit our web page introducing our GRANITE series


Learn more about the GRANITE™ Series by watching the YouTube video created by AWEA for us.


Product Line

Digital I/O Communications Ports Data Storage Static Vibrating-Wire Measurements

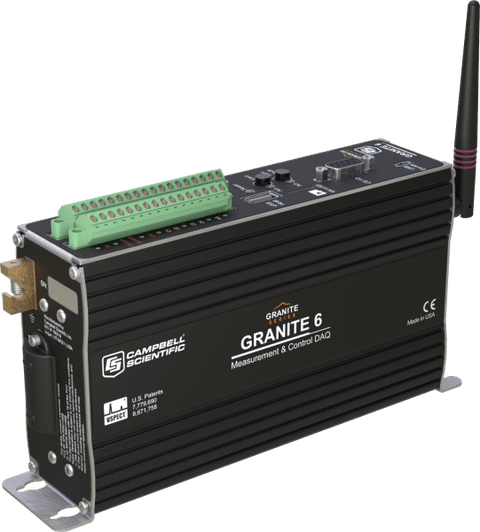

GRANITE 6

16 terminals (C1 to C4, U1 to U12) configurable for digital input and output. Terminals are configurable in pairs for 5 V or 3.3 V logic for some functions.
  • Ethernet
  • USB Micro B
  • USB host
  • CS I/O
  • 0 to 5 V serial
  • SDI-12
  • RS-485
  • RS-422
  • CPI/RS-232
4 MB SRAM + 72 MB flash (Storage expansion of up to 16 GB with removable microSD flash memory card.) Supported

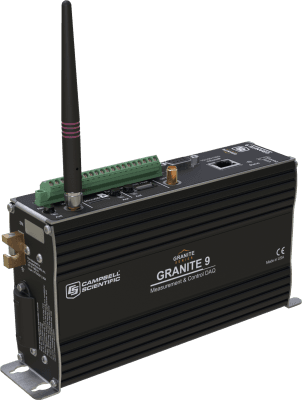

GRANITE 9

8 terminals (C1 to C8) configurable for digital input and output. Terminals are configurable in pairs for 5 V or 3.3 V logic for some functions.
  • Ethernet
  • USB Micro B
  • USB host
  • CS I/O
  • 0 to 5 V serial
  • SDI-12
  • RS-485
  • RS-422
  • CPI/RS-232
  • EPI
4 MB SRAM + 128 MB NOR flash (Storage expansion of up to 16 GB with removable microSD flash memory card.) Not supported

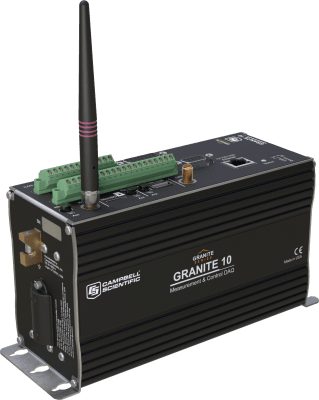

GRANITE 10

8 terminals (C1 to C8) configurable for digital input and output. Terminals are configurable in pairs for 5 V or 3.3 V logic for some functions.
  • CAN FD
  • CAN
  • Ethernet
  • USB Micro B
  • USB host
  • CS I/O
  • 0 to 5 V serial
  • SDI-12
  • RS-485
  • RS-422
  • CPI/RS-232
  • EPI
4 MB SRAM + 128 MB NOR flash (Storage expansion of up to 16 GB with removable microSD flash memory card.) Not supported

Documents

Miscellaneous


Frequently Asked Questions

Number of FAQs related to GRANITE Data Acquisition (DAQ): 1

  1. There are several situations where using a data acquisition (DAQ) system for your applications is preferable to using a PC-based system:

    • When the conditions are too extreme for you to use a PC
    • When you need multiple measurement modules to run synchronously
    • When you need advanced measurement manipulation, on-board data processing, control functions, automated alarm systems, or other features
    • When you need advanced communications such as Wi-Fi, Ethernet, or radios
    • When you need to manage large data sets or schedule long-term data collection
