Fundamentals of Data Loggers

datalogger

What is a data logger?

A data logger is a device used to record and store the output of one or more sensors. In some cases, the data logger interprets the electrical signal from the sensor and converts it to units. In cases where a smart sensor provides digital output, the data logger simply records the data. Early data loggers were strip chart recorders that recorded measurement data onto paper. Over time, data loggers evolved to store data digitally on various types of media. Today, data is typically stored on modern flash memory and often transmitted via a variety of telemetry methods.

Note: Similar terms for "data logger" include "datalogger," "logger," "data recorder," "data acquisition system," and "RTU" (remote terminal unit). Which term is used often varies by industry or discipline.

Today, a wide range of devices are referred to as "data loggers," and they can vary greatly in their functionality. For example, one data logger may be packaged together with a sensor for a single application-specific purpose, such as measuring temperature. Another data logger may be a general-purpose device that is used in many different applications to log data from multiple sensors of varying types. For the purpose of this discussion, our focus will be on general-purpose data loggers.

Most modern, general-purpose data loggers are microprocessor-controlled electronic devices that can interface directly with a variety of sensors to do the following:

  • Provide measurements at specific time intervals
  • Process statistical and mathematical data
  • Store data
  • Initiate a variety of telecommunications
  • Transmit measurement data and calculated values

In addition to their measurement and monitoring functions, some data loggers can trigger an alarm or notification, as well as control an external device, in response to any of the following: a specific, measured site condition; time of day; or event. For example, a data logger may be programmed to respond to a measured rise in water level by closing a floodgate and sending a notification to personnel.


What are the different parts of a data logger?

The following illustration depicts the most common parts of a general-purpose data logger:

datalogger parts


What is the role of a data logger in a data acquisition system?

A data acquisition system consists of multiple electronic devices that act together to serve the primary purpose of collecting measured data. The general-purpose data logger is often considered the brain of a data acquisition system, but it is only one of the interfaced components used in the process of acquiring, recording, transmitting, and analyzing measurements. These components may include the following:

A facility may individually select each of their data acquisition system’s components, thereby creating a customized solution that will meet their specific needs.

The data logger can be programmed to scan the sensors of the data acquisition system repeatedly after a specified interval has passed (the scan rate), under specified conditions, or after the occurrence of a particular event type (such as rainfall). A sophisticated data logger can receive the electrical signals from the sensors, perform any programmed calculations, convert the data as necessary to other units of measurement, and store the resultant data in the data logger’s memory.

The data logger’s acquired data and calculated values will need to be transferred to a PC or other device for increased access, sharing, analysis, and reporting. A variety of methods can be used to accomplish this, including communication peripherals with onsite and telecommunication options.


Where can data loggers be used?

While many general-purpose data loggers are designed to be installed in protected environments, some are specifically developed for extreme environmental conditions. These extreme environments include mountainous terrain, deserts, jungles, mines, oceans, and glaciers. A data logger is typically left unattended for lengthy periods to automatically process and record measurement data from a variety of sensors until the monitoring period ends, which may be decades later.

The universal application of data loggers in climates across the world, from the poles to the equator, is often attributed to their ruggedness, compact size, wide operating temperature ranges, low power usage, and capability of operating in diverse environments. The universality of sophisticated data loggers is further enhanced by their many connection types and programmable inputs, which enable them to measure almost any commercially available sensor. Because data loggers provide a comprehensive, accurate, and reliable depiction of the monitored conditions without the need for site visits, they are an indispensable tool for unattended, long-term monitoring and control for numerous industries and applications.


How do data logger models differ from each other?

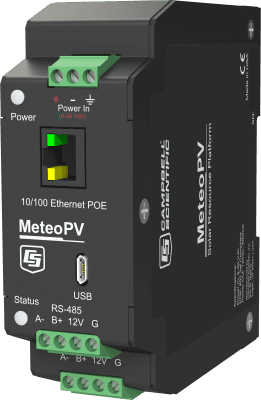

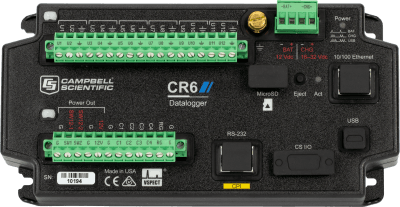

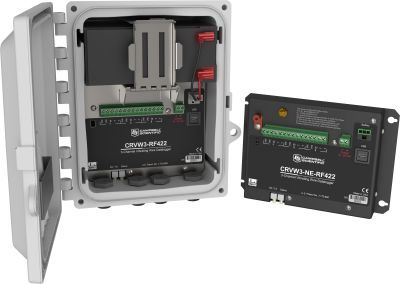

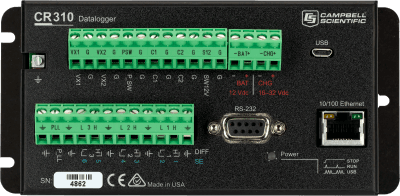

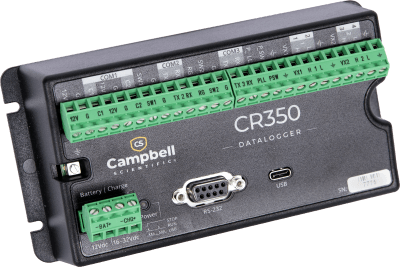

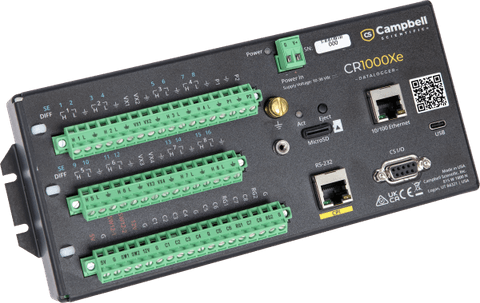

In this illustration, several different types of general-purpose data loggers are displayed. These different types enable data loggers to accommodate a wide variety of measurement applications.

Different datalogger models

While data loggers can be compared and contrasted on many different levels, the following are some primary characteristics that may be helpful for you to be mindful of:

  • Size
  • Operating temperature range
  • Variety and quantity of connection options
  • Expansion capability
  • Accuracy level
  • Precision level
  • Resolution level
  • Scan rate and sample rate
  • Communication capability
  • Device control
  • Programmability
  • Onboard data processing
  • Communication protocol
  • Keyboard display
  • Data storage

These characteristics are discussed briefly in the following sections.

Size

In general, the size of the data logger is dictated by the number of inputs and outputs (I/O) and connection points. Smaller data loggers have a smaller footprint requirement, which enables a facility to use a smaller enclosure that is less expensive and less noticeable. A smaller data logger, however, is limited in functionality because fewer sensors or peripherals can be connected to it.

Even if a data logger isn’t housed inside an enclosure, there may be space restrictions at the site that prohibit the use of a larger data logger.

Operating temperature range

Although some manufacturers may not conform to this convention, the published operating temperature range typically refers to the range at which the data logger will operate within its specified measurement accuracy. Measurements may still be recorded outside of this temperature range, but the accuracy of the measurement may be in question, and the data logger may not perform as expected. Other operational errors may also occur.

Some data loggers only have a standard operating temperature range, whereas other data loggers may offer an extended temperature range option that is useful in environments with more extreme temperatures.

Variety and quantity of sensor connection options

The wiring panel of a data logger provides terminals for connecting sensors. These terminals enable the data logger to measure, communicate with, and power the sensors.

Data loggers vary both in the quantity and types of input connections they offer. A data logger with fewer sensor connection options:

  • Provides a cost-effective option for a facility that requires only a few sensors to be connected to it
  • Is limited in the amount and variety of data that it can collect from a single site
  • May be limited to single-ended analog measurements only
  • Is typically smaller and weighs less than a data logger with more connection options

In contrast, a data logger with more connection options:

  • Is more cost-effective when many sensors are needed
  • Is often modular and enables expansion of the data acquisition system through additional terminals or connections to measure more sensors, thereby satisfying the current application requirements and allowing for future growth

Some data loggers can scan almost any sensor with an electrical response—whether the sensor’s signal output is voltage, current, pulse, digital, or serial. However, for the data logger to interpret the sensor’s signal, the signal output from the sensor must be compatible with the data logger input terminal to which it is connected. Typically, the instruction manual of a sensor provides information regarding which type of data logger connection is required, as well as how to wire the sensor to the data logger.

The following are some common terminal types used to connect data loggers with sensors:

  • Analog inputs
  • Pulse counters
  • Switched voltage excitation outputs
  • Digital I/O ports
  • RS-232, RS-422, or RS-485 ports
  • 5 V terminals
  • 12 V terminals
  • Switched 12 V terminals

These terminal types are discussed briefly in the following sections.

Analog inputs

Analog inputs refer to both voltage and current inputs, and they are often used with any of the following:

  • Bridge sensors
  • Current outputs in 0 to 20 mA and 0 to 40 mA
  • Platinum resistance thermometers (PRTs)
  • Potentiometers
  • Pressure transducers
  • Resistive bridges
  • Strain gages
  • Thermistors
  • Thermocouples
  • Thermopiles
  • Vibrating wires
  • Voltage currents with shunt resistors
  • Voltage outputs, including both single-ended and differential measurements
Pulse counters

Pulse counters are used by the data logger to measure switch closures, low-level ac sine waves, or high-frequency pulses. Pulse counters sum the number of counts over each execution interval (scan rate), allowing variables such as rpm, velocity, flow, and rainfall intensity to be determined.

Pulse counters are often used with any of the following:

  • Anemometers
  • Contact closures
  • Flow meters
  • Tipping bucket rain gages
Switched voltage excitation outputs

Switched voltage excitation outputs are used with sensors that measure voltage resistance. These outputs provide programmable voltage excitation for resistive bridge measurements by switching the voltage on and off. The bridge measurements are the ratio of the voltage output to the excitation voltage, eliminating any errors in the excitation voltage.

Digital I/O ports

By default, digital I/O ports are configured as binary inputs to perform functions such as detecting status or reading SDM peripherals. In addition, each port can be individually programmed as a control output to physically control an external device.

RS-232, RS-422, and RS-485 ports

RS-232, RS-422, and RS-485 ports are used to connect the data logger to smart serial sensors and communication devices.

5 V terminals

These terminals can be regulated or unregulated power sources for sensors and other peripheral devices.

12 V terminals

The 12 V terminal is generally used as an unregulated continuous power source for sensors and other devices.

Switched 12 V terminals

A switched 12 V terminal is used to power devices such as sensors that only require power periodically. These terminals are controlled by the data logger to power the sensor only during measurements.

Variety and quantity of other connection options

The wiring panel of a data logger also provides terminals for connecting power supplies, communication peripherals, and external control devices. The input and output connections on the wiring panel enable the data logger to communicate with and power various peripherals.

The following are some common terminal types used to connect data loggers with other peripherals:

  • Continuous analog outputs
  • Proprietary ports (often unique to the manufacturer)
  • Removable power terminals
Continuous analog outputs

Continuous analog outputs provide voltage levels to peripheral devices or proportional controllers. This allows the data logger to have control over other devices, including digital displays and controlled devices such as proportionally controlled gates.

Data loggers often are used as measurement devices within a SCADA (supervisory control and data acquisition) system. The continuous analog outputs can then be used to send data directly from the data logger to a PLC (programmable logic controller).

Proprietary ports

These ports are used to communicate with other expansion devices that are unique to the specific manufacturer.

Removable power terminals

These terminals are used to connect the data logger to an external power supply. Because these terminals can be easily removed, they provide a quick-disconnect option.

Expansion capability

A data logger may allow the expansion of its input and output capabilities using expansion modules, such as Synchronous Devices for Measurement (SDMs), and multiplexers. These add-on modules and multiplexers enable the data logger to measure more sensors by increasing the number and type of connections available beyond what the data logger provides on the wiring panel. Control modules increase the number of devices that can be controlled by the data logger.

Accuracy level

Accuracy is the ability of a measurement to provide a result that is as close as possible to the actual value. For example, a data logger that produces a measurement within ±0.1 of the actual value is said to be more accurate than a data logger that produces a measurement within ±0.5 of the actual value. Accuracy is often listed by the manufacturer at a specific temperature (typically 25°C). Some manufacturers will specify accuracy over a temperature range.

Precision level

Precision is the amount of agreement between repeated measurements of the same quantity. For example, a data logger that produces 10 measurements of the same sample within ±0.1 of each other is said to be more precise than a data logger that produces 10 measurements of the same sample within ±0.8 of each other.

Resolution level

In measurements, resolution refers to the smallest change in a quantity that can be detected. For example, if one data logger detects a difference to the nearest tenth of a millivolt, that data logger is said to have higher resolution than another data logger that detects a difference to the nearest whole millivolt.

Scan rate and sample rate

Depending on the manufacturer, some data loggers cannot differentiate between the interval at which they scan (measure) the sensor and the interval at which they record the measured value. (The two rates are treated as being the same.) The data logger will scan the sensor based on a selected record interval, and every measured parameter is recorded with each scan.

In contrast, a sophisticated data logger can be programmed to scan a sensor based on a time scan rate, under specified conditions, or in response to an event. Programmed scan rates can vary greatly, depending on the data logger model, and may range, for example, from once every few hours to 100,000 times per second (Hz). It is important to note that every single measurement from the scans does not need to be recorded. For example, if a sensor is scanned every five seconds (the scan rate), only an average reading for a 15-minute period (the sample rate) may need to be recorded.

The maximum scan rate is the highest frequency at which the data logger scans the sensors. For example, data loggers may range from a maximum scan rate of 1 to 100,000 Hz.

A data logger with a slower maximum scan rate may be less expensive, but the rate at which parameters (such as rainfall) can be measured and recorded is limited. Consequently, less measurement data is available for a specified period compared to the amount of data that could be acquired during the same period using a data logger with a faster maximum scan rate.

Communication capability

To transfer data from a data logger to a central location, such as a base station PC or cloud-hosted database, a data logger may have integrated communication capabilities, or it may be able to interface with an external communication device. These devices may support a hardwired connection (such as Ethernet), wireless cellular, or Wi-Fi. Various other communication options such as satellite or frequency-hopping spread-spectrum radios are also used.

Device control

A data logger may be equipped to control external devices—in addition to providing advanced measurement and monitoring capabilities. As a control mechanism, a data logger can be programmed to activate a device at a preset time, in response to a measured condition, or in response to an event. Data loggers can activate or shut down motors, gates, pumps, purifiers, valves, injectors, etc. For example, if a temperature level rises above a predetermined maximum, the system can activate HVAC equipment. Moreover, control functions can be based on multiple conditions or events, such as deciding to initiate or suspend air exchange based on time of day, outside temperature, and/or inside temperature.

Programmability

Some data loggers offer very limited programming flexibility such that the user is restricted to preset functions that the data logger can handle. Other data loggers use a microprocessor with a built-in programming language and instructions to enable the user to create and run new, customized programs. These data loggers offer the user more control and the possibility to program cross-channel computations. The following is an example snippet of code from a data logger’s programming language:


'Declare Variables and Units
Public BattV
Public PTemp_C
Public Temp_C

Units BattV=Volts
Units PTemp_C=Deg C
Units Temp_C=Deg C

'Define Data Tables
DataTable(OneMin,True,-1)
	DataInterval(0,1,Min,10)
	Average(1,Temp_C,FP2,False)
EndTable

'Main Program
Begin Prog
	'Main Scan
	Scan(1,Sec,1,0)
		'Datalogger Battery Voltage measurement 'BattV'
		Battery(BattV)
		'Datalogger Panel Temperature measurement 'PTemp_C'
		PanelTemp(PTemp_C,60)
		'Type T (copper-constantan) Thermocouple measurements 'Temp_C'
		TCDiff(Temp_C,1,mv34,1,TypeT,PTemp_C,True,0,60,1,0)
		'Call Data Tables and Store Data
		CallTable OneMin
	NextScan
EndProg

Onboard data processing

Some data loggers can perform basic processing of the data collected from the system’s sensors. Examples include the calculations of daily minimums, maximums, averages, totals, or other statistical values. Moreover, parameters such as the following can be calculated using the data provided by sensors: density altitude, dew point, evapotranspiration, heat index, and wind chill.

By providing onsite statistical and mathematical processing, the data logger can record just the calculated values rather than all the individual measurements. This provides the needed information in fewer numbers, simplifying the data analysis or review process. Because the frequency of recorded measurements is decreased, the quantity of data stored is reduced significantly. By reducing your quantity of stored data, you can prolong the time before your data logger’s memory becomes full and needs to be downloaded, as well as decrease the amount of data that is being transmitted via the cellular or other wireless communication devices.

Communication protocol

The communication protocol is the system of rules that manages how data is exchanged between the data logger and other devices. This includes communication between the data logger and external measurement devices within the data acquisition system, between the data logger and other data loggers within a network, and between the data logger and the PC or server. The protocol is particularly important when integrating a data logger with an existing system to ensure that the system devices and the data logger can all use the same protocol to communicate with each other. The communication protocols may be proprietary to the manufacturer of the data logger, external devices, or software. These protocols may also be developed and managed by third-party organizations such as Modbus, DNP3, SDI-12, or FTP.

Keyboard display

Some data loggers have an integrated or detachable keyboard display that includes a screen and keypad. The display enables the user to view measured data, generally in both real-time and historical formats.

The keypad functions of the display may also provide the user with the ability to program, configure, and analyze the data logger while in the field—without the need for other external communication devices such as laptop computers, smartphones, or tablets.

Data storage

Knowing how frequently the sensors are scanned (scan rate), as well as how frequently data measurements and/or calculated values are recorded (sample rate), provides helpful information in determining how long a data logger can record data before the memory capacity becomes full and requires downloading. Unless the data logger has a display screen, data that is stored in the internal memory of the data logger must be physically transferred to a PC or other web-browser-enabled device for visualization, analysis, sharing, report generation, and permanent storage.

The internal data memory, program, communications, and operating systems are stored in SRAM or RAM memory. Depending on the type of memory storage used, this memory is backed up by an internal lithium battery. In the event of power loss or when the data logger is not connected to an external power supply, the battery maintains the memory and clock.

If a data logger’s memory capacity is not sufficient to meet a facility’s scan rate and sample rate needs, an external data storage device may be purchased and used as well. Using an external data storage device provides a redundant data resource if the memory on the data logger becomes full, resulting in data loss.


How do you select the data logger model that is right for your application?

Selecting a data logger is an important decision that requires careful consideration. For assistance with the selection process, review the detailed Purchase Considerations section.

Purchase Considerations for Data Loggers

Different models of dataloggers

To assess the numerous general-purpose data logger models and ultimately determine which one will best meet your needs, you should first identify your application’s needs and requirements. If necessary, review any related documentation, permits, or regulations. Your familiarity with these items will help ensure that the data logger you select will meet your compliance requirements.

Note: The considerations discussed here do not constitute an all-inclusive list but serve to provide common considerations that have been helpful to our customers in guiding them through the selection process.

Site Environment

If the data logger is not designed for the environment in which it is located, the data logger may not perform as expected or stop working.

Extreme temperatures

The high and low temperatures at your site will determine whether you can use a data logger with a standard operating temperature range. If your site’s high and low temperatures are beyond the temperature capability of the data logger, select a data logger with an extended temperature range.

Vibrations and shocks

If your data logger will be subjected to vibrations—such as from bridges, mines, or construction sites—ensure your data logger is designed to endure those conditions. Also, if you anticipate that your data logger will be dropped or bounced, verify that it can withstand those shocks.

Water exposure

If your data logger will be placed in a humid or wet environment, check that it can handle the moisture level. You can protect your data logger by housing it inside a sealed environmental enclosure. Select a data logger that will fit inside the enclosure you intend to use at your site. To keep the inside of the enclosure dry, use desiccant.


Measurement Requirements

Different sensor types require different input types on the data logger that can interpret the sensors' signals.

Sensor input types

Determine which parameters you need to measure, which will then determine the sensor types that you need. Review the manual for each sensor you will use to ascertain the type of data logger connection needed. (The manual should also provide information about how to wire the sensor to the data logger.)

Number of sensors

Data loggers vary greatly in both the quantity and types of connections they offer for sensor inputs. You will need to ascertain how many sensor inputs of each sensor type your data logger needs to accommodate all your sensors.

Expansion

An expansion peripheral can significantly expand the number and types of sensors your data logger can measure. If the number or types of sensors you will be using exceeds the inputs available on a data logger, you may be able to use a compatible expansion peripheral. Moreover, consider how your facility’s long-term goals may differ from the current goals and require additional inputs and/or outputs on the data logger.

Compatibility

You may already own sensors that you plan to use in your data acquisition system. Ensure that these sensors are compatible with the data logger you select.


Measurement Quality

Whereas precision and resolution of a data acquisition system may be directly related to the performance of the data logger, the system’s accuracy is often determined by the least accurate component in the system.

Accuracy

Accuracy is the ability of a measurement to provide a result that is as close as possible to the actual value. For example, a data logger that produces a measurement within ±0.1 of the actual value is said to be more accurate than a data logger that produces a measurement within ±0.5 of the actual value. Although the overall accuracy you can attain is determined by the least-accurate component in your system, check that your data logger provides a suitable accuracy level for your requirements. Note that accuracy levels differ depending on the temperature range.

Precision

Precision is the amount of agreement between repeated measurements of the same quantity. For example, a data logger that produces 10 measurements of the same sample within ±0.1 of each other is said to be more precise than a data logger that produces 10 measurements of the same sample within ±0.8 of each other. Match the level of precision of your data logger with your measurement data needs.

Resolution

In measurements, resolution refers to the smallest change in a quantity that can be detected. For example, a data logger that detects a difference to the nearest tenth of a millivolt is said to have a higher resolution than a data logger that detects a difference to the nearest millivolt. To improve your absolute resolution, use the lowest/smallest fixed voltage range possible that will cover the output range of the sensor being measured.


Programming Flexibility

Programmable data loggers offer options for scheduling scans, as well as developing and running customized programs.

Measurement flexibility

A programmable data logger can be scheduled to scan a sensor based on a programmed scan rate, under specified conditions, or in response to an event. Some data loggers don’t require the recording of every single measurement from the scans. For example, if a sensor is scanned every five seconds (the scan rate), only an average reading for a 15-minute period (the sample rate) may need to be recorded. Make sure the data logger you select has a level of flexibility appropriate for your needs.

Programming language

While some data loggers are hard-coded to only perform a core set of functions, other data loggers have a built-in, full programming language to allow users the flexibility to develop and run their own customized programs. Determine the skill level of the user who would potentially program the data logger, as well as the needs of your facility to develop its own programs. Select a data logger that will match well.

Onboard processing

A sophisticated data logger may have onboard algorithms that can calculate daily minimums, maximums, averages, totals, or other statistical values. Moreover, parameters such as the following may be calculated using the data provided by sensors: density altitude, dew point, evapotranspiration, heat index, and wind chill.

Data storage flexibility

By providing onsite statistical and mathematical processing, a sophisticated data logger can record just the calculated values rather than all the measurement values. This minimizes the amount of data that needs to be stored and transmitted by the data logger, prolonging the time before your data logger’s memory becomes full and the data need to be downloaded. In addition, with less data, the cost to retrieve the data may be reduced (depending on the method used), and the data analysis or review process may be simplified.

External device control

Some data loggers can be programmed to control external devices, such as activating a device at a preset time or in response to a measured condition or event. Data loggers can activate or shut down motors, gates, pumps, purifiers, valves, injectors, etc. If you need the data logger to control external devices, verify that the data logger, or the data logger combined with a terminal expansion peripheral, has this capability.


Data Storage

The value of your measurement data lies not merely in its collection, but in your ability to use the data when, where, and how you need to, such as transferring data to databases or directly to users; closely watching the real-time data; monitoring averages, maximums, and minimums; reviewing a set of historical data; or looking for trends or patterns over a longer period.

Frequency of scans and records

Knowing how frequently the sensors are scanned, and how frequently data measurements and/or calculated values are recorded, provides helpful information in determining how long a data logger can record data before the memory capacity becomes full and requires downloading.

Storage capacity

Selecting a data logger by memory size alone may not prove advantageous. Instead, it may be more beneficial to consider storage capacity in terms of how many readings the data logger can store. It is possible for a data logger to have many kilobytes or megabytes of memory but only be able to hold a small quantity of readings. Review the data logger’s specifications for both the memory size and the quantity of readings the data logger can store. If the data logger’s onboard memory capacity is not sufficient for your project, find out if compatible memory expansion peripherals are available.

Memory type

Review the specifications for a data logger to determine if it uses fill and stop memory, or if it uses ring memory. This can help you determine how frequently your facility needs to download the data, and then you can schedule your data retrieval accordingly.

Battery-backed data storage

If a data logger loses power because of a power failure or from being powered down, it is necessary to ensure that your data will not be lost as a result. Different types of storage media provide different protection in this regard.

  • A volatile storage medium, such as SRAM, will eventually lose its data. Consequently, a volatile storage medium should be battery-backed to ensure the data is maintained while the data logger is disconnected from its main power source.
  • Non-volatile storage media, such as EEPROMs and flash memory, are not affected when the power supply is disrupted; they will maintain their data.

If you anticipate that the power supply to your data logger may experience frequent planned or unplanned power outages, select a data logger with either a non-volatile data storage medium or with a battery-backed volatile data storage medium.


Communications

The ability of a data logger to communicate with other components in your data acquisition system depends on the communication protocols the data logger uses, the data logger’s integrated communication capabilities, and the data logger’s compatibility with communication peripherals.

Communication protocols

Data loggers vary in their support of the different communication protocols available, such as DNP3 or Modbus. Review the data logger’s supported protocols to determine if the data logger shares a common communication protocol with your other system components.

IP communications

Determine if the data logger has integrated IP communication capabilities, such as an integrated Ethernet terminal, or if it can be integrated with an external communication peripheral.

Onsite options

Depending upon the limitations of your site, you may have to rely on onsite options such as cables connecting the data logger directly to a PC or laptop. Another onsite option is to use an external data storage device with a memory card that can be transported and uploaded to a PC at an offsite location. Check the compatibility of the data logger with the various data retrieval and communication options you are considering. If you need to use a cable to connect your data logger and computer, calculate the cable length you need. A standard RS-232 cable may only come in a length of 50 feet. To increase the connection length up to a few thousand feet, a converter is needed.

Telemetry

If wireless transmission is available, you can use a telemetry peripheral to transmit data remotely. The following are some possible telecommunication options: Ethernet, multidrop network, radio frequency (RF) network, satellite system, short haul modem, landline phone, voice-synthesized phone, and cellular phone. Check the compatibility of the data logger with the various data retrieval and communication options you are considering. Each telecommunication option has its own requirements that should be reviewed. For example, review the transmission distance or area of each option, as well as its applicable service requirements. You may find that a particular option is not available or does not provide the coverage you need.

Notifications and alarms

Using a communication peripheral, some data loggers may be programmed to send regular notifications to personnel regarding the current conditions at the site. In addition, if an atypical event occurs, a data logger can be programmed to trigger an alarm (such as a phone call, bell, whistle, light, etc.) to notify personnel who can make any necessary decisions and adjustments to their system. Determine which parameters the data logger will use to automate notifications or alarms, and ensure that the data logger can be suitably programmed.

Onsite display

Some data loggers offer a built-in keyboard and display, and other data loggers may offer a separate, portable keyboard and display screen. Personnel can use these devices to respond to prompts and messages from the data logger at the measurement site. Instead of using a keyboard with display to interact with an onsite data logger, it may be possible to use a laptop computer.


Power Requirements

A data logger's power needs should be considered when determining a power budget for an entire data acquisition system.

Power requirements

Review the listed power requirements of the data logger to understand its typical current drain for both active and quiescent states.

Power distribution

Some data loggers can provide the power to operate sensors and other devices.

Sensor control

To reduce power drain, consider selecting a data logger that is able to switch the sensor power on only when a reading is taken.

Power budget

Some data acquisition systems are installed in locations that do not have access to ac power and require the use of an internal sealed rechargeable battery or alkaline batteries—in combination with a battery charging device such as a solar panel. Whatever power source is used, ensure that you will have enough power supply for continuous sampling. Estimate the power requirements of your data logger and entire data acquisition system using a power budget.

To conduct your power budget, you can use these resources:


Additional Information

If you would like some background information regarding the concepts discussed in this section, review the Fundamentals section.

Frequently Asked Questions

Number of FAQs related to Data Loggers: 19

Expand AllCollapse All

  1. The CR1000, CR800, CR850, and CR3000 can accept PakBus connections from multiple terminals simultaneously, provided that all of the connecting nodes have unique PakBus addresses.

  2. Campbell Scientific data loggers do not directly support LonWorks, but an industrial protocol converter can be used to add a data logger to a new or existing LonWorks network. The protocol converter sits between the data logger and the network, and it converts LonWorks requests to a protocol supported by the data logger, such as Modbus, DNP3, SNMP, or others.

  3. Yes. We have developed programs for controlling devices and collecting data remotely. Program examples and data logger wiring are provided in the 10164-L instruction manual. Contact Campbell Scientific for more information.

  4. Yes. All Campbell Scientific data loggers currently have nonvolatile memory. Nonvolatile memory was added to the CR10X in 1996. All data logger models introduced since then have included nonvolatile memory.

    Nonvolatile memory is reliant on the 3 V lithium battery inside the data logger. As long as this internal battery has a charge above 3 V, no data should be lost if the data logger loses power.

  5. Yes. The data logger can control power to external devices under program control. For more information, see the “Decisions, Decisions, Decisions…” article.

    To turn a generator on and off, a solid state relay with a load capacity that matches or exceeds the power of the generator is needed. The relay is controlled by one of the control ports on the data logger.

  6. Yes, but there is the potential for explosive hydrogen gas from a rechargeable battery to build up inside the airtight, waterproof enclosure. Care should be exercised in choosing a power supply for applications where the enclosure must be waterproof. Contact Campbell Scientific’s technical support for more information.

  7. Possibly. If a voltage greater than 16 Vdc is applied to the wiring panel, it could damage the input and result in inaccurate measurements.

    Additionally, in some cases the sensors can be damaged if they are wired to the wrong channels. If a sensor, wired into an analog input channel, has an output of more than 5 Vdc, measurements on adjacent analog input channels may be upset. For example, the maximum full-scale range on the CR5000 is ± 5Vdc.

  8. Campbell Scientific data loggers do not directly support BACnet, but an industrial protocol converter can be used to add a data logger to a new or existing BACnet network. The protocol converter sits between the data logger and the network, and it converts BACnet requests to a protocol supported by the data logger, such as Modbus, DNP3, SNMP, or others.

    For more information about BACnet, see the “BACnet to Modbus/Modbus to BACnet Protocol Conversion” application note.

  9. The number of sensors that can be measured is determined by the sensor(s) and the data logger(s). See the operator's manual for the sensor to determine the channels each sensor uses. The number of analog channels, pulse counting channels, switched excitation channels, digital ports, and continuous analog ports provided by each data logger can be found in the Datalogger Overview brochure.

Privacy Policy Update

We've updated our privacy policy.  Learn More
