Power

To determine the power needs of your station, you may find it helpful to watch our Power Budgeting video and download our Power Budget Spreadsheet.


Product Line




Videos & Tutorials

Documents

Frequently Asked Questions

Number of FAQs related to Power: 4

Expand AllCollapse All

  1. When a battery won’t charge above approximately 10 or 8 V, it has a bad cell. The battery should be replaced.

    A 12 V lead-acid battery is six cells in series; the chemistry provides a little over 2 V per cell.

  2. Yes. However, if the data logger has an internal rechargeable battery, such as the CR3000 with the rechargeable base, disconnect the data logger battery before connecting the motorcycle battery to the green power connector on the front of the data logger. Two rechargeable batteries that have different Ahr ratings should not be connected in parallel.

  3. A power budget for the period in question should be calculated first before selecting any type of power supply. For example, a CR1000 in quiescent mode consumes approximately 0.7 mA. Quiescent current means the data logger is not making measurements and is not communicating with anything. This current consumption during the year also does NOT include any current consumed by sensors or communications devices, which should be part of the calculation. This equates to 0.0168 A per day or 6.132 A per year.

    Typically, a 20% buffer of reserve capacity should be kept in any battery scheme, which equals approximately 7.7 A per year. In applications where the temperature is below freezing, Campbell Scientific recommends increasing the reserve current to 30 to 40%.

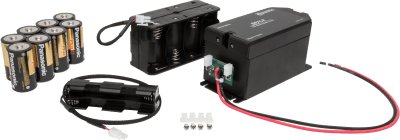

    Reserving current in this amount is not possible with a BPALK 12-V Alkaline Battery Pack or a 7 Ah battery such as what is used with a PS100 Rechargeable Power Supply. More suitable choices would be the BP12 12 Ah Battery Pack, BP24 24 Ah Battery Pack, PS84 84 Ah Power Supply, BP84 84 Ah Battery Pack, or a user-supplied deep-cycle battery. Batteries can be swapped out and charged at the end of each year of use.

  4. Estimating the power consumption of a system can help with selecting the best power supply option. The system power consumption can be approximated by calculating the average current required by the data logger, sensors, and peripheral equipment. This average current drain is primarily determined by the percentage of time spent in an active versus quiescent state, which can be approximated from the scan rate and program length of the data logger.

    For more information, and guidance through the calculations, see the "Power Supplies Overview" brochure or the "Power Supplies" application note.
