Spread-Spectrum Radios

Try Before You Buy

Spread-spectrum radio test kit

If you are unsure if spread-spectrum communications is right for you, you can try before you buy. Campbell Scientific offers a 900 MHz spread-spectrum demonstration kit that allows you to easily test communications from one point to another using the RF407 and RF451 radios.


Product Line

Frequency Power Output Data Rate Antenna Connector Operating Temperature Range Current Required Communication Ports Dimensions Radio Type

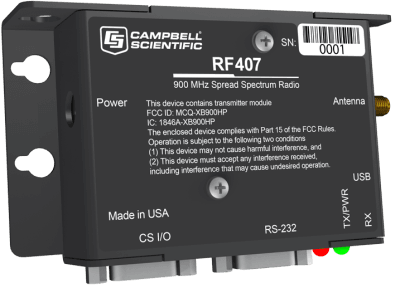

RF407

902 to 928 MHz 5 to 250 mW (software-selectable) 200 kbps Reverse Polarity SMA (RPSMA) jack -40° to +70°C
  • USB Type B jack
  • RS-232 9-pin D female
  • CS I/O 9-pin D male
11.1 x 6.9 x 2.7 cm (4.4 x 2.7 x 1.1 in.)
Dimension are from the tip of the antenna connector to the other side of the case, and from the bottom of the case to the top of the DB9 connector jack screw. The width includes the thickness of the screw heads on the screws that hold the case together.
Frequency Hopping Spread Spectrum (FHSS)

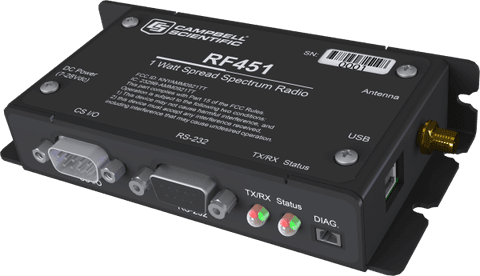

RF451

10 to 1,000 mW (user-selectable) -40° to +85°C
  • CS I/O 9 pin D male
  • RS-232 9 pin D female
  • USB Type B jack
13.61 x 2.74 x 7.01 cm (5.36 x 1.08 x 2.76 in.) Frequency Hopping Spread Spectrum (FHSS)

Other Products

Frequency Power Output Data Rate Antenna Connector Operating Temperature Range Current Required Communication Ports Dimensions Radio Type

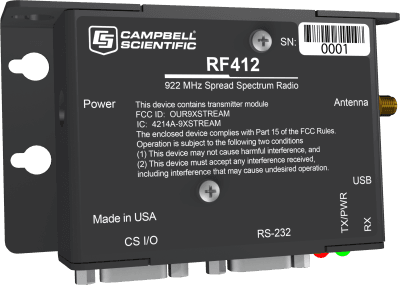

RF412

915 to 928 MHz 5 to 250 mW (software-selectable) 200 kbps Reverse Polarity SMA (RPSMA) jack -40° to +70°C
  • RS-232 9-pin D female
  • USB Type B jack
  • CS I/O 9-pin D male
11.1 x 6.9 x 2.7 cm (4.4 x 2.7 x 1.1 in.)
Dimension are from the tip of the antenna connector to the other side of the case, and from the bottom of the case to the top of the DB9 connector jack screw. The width includes the thickness of the screw heads on the screws that hold the case together.
Frequency Hopping Spread Spectrum (FHSS)

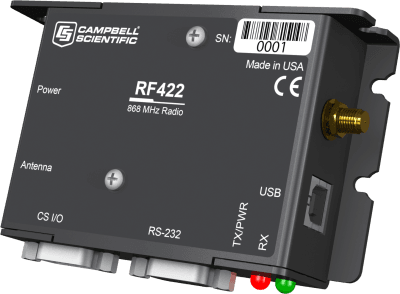

RF422

2 to 25 mW (software-selectable; assuming 2 dBi antenna gain) Reverse Polarity SMA (RPSMA) jack -40° to +70°C
  • CS I/O 9-pin D male
  • USB Type B jack
  • RS-232 9-pin D female
11.1 x 6.9 x 2.7 cm (4.4 x 2.7 x 1.1 in.)
Dimensions are from the tip of the antenna connector to the other side of the case, and from the bottom of the case to the top of the DB9 connector jack screw. The width includes the thickness of the screw heads on the screws that hold the case together.
SRD860, LBT+AFA

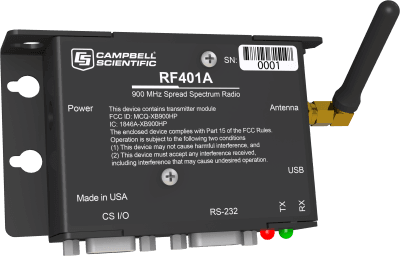

RF401A

910 to 918 MHz 5 to 250 mW (software-selectable) 10 kbps Reverse Polarity SMA (RPSMA) jack
  • -40° to +85°C (extended)
  • -25° to +50°C (standard)
  • RS-232 9 pin D female
  • CS I/O 9 pin D male
  • USB Type B jack
11.1 x 6.9 x 2.7 cm (4.4 x 2.7 x 1.1 in.)
Dimension are from the tip of antenna connector to other side of case, and from the bottom of case to the top of DB9 connector jack screw. The width includes the thickness of the screw heads on the screws that hold the case together.
Frequency Hopping Spread Spectrum (FHSS)

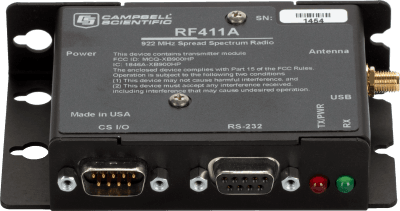

RF411A

920 to 928 MHz 5 to 250 mW (software-selectable) 10 kbps Reverse Polarity SMA (RPSMA) jack
  • -40° to +85°C (extended)
  • -25° to +50°C (standard)
  • CS I/O 9 pin D male
  • USB Type B jack
  • RS-232 9 pin D female
11.1 x 6.9 x 2.7 cm (4.4 x 2.7 x 1.1 in)
Dimensions are from the tip of antenna connector to other side of case, and from the bottom of case to the top of DB9 connector jack screw. The width includes the thickness of the screw heads on the screws that hold the case together.
Frequency Hopping Spread Spectrum (FHSS)

RF416

2.450 to 2.482 GHz 50 mW (nominal) 10 kbps Reverse Polarity SMA (RPSMA) -25° to +50°C
  • RS-232 9-pin D female (4 wire: Tx, Rx, CTS, GND)
  • CS I/O 9-pin D male (Newer dataloggers provide power to the radio on this connector. Dataloggers purchased before December 1997 require the pn 14291 Field Power Cable.)
11.4 x 7.0 x 2.9 cm (4.5 x 2.8 x 1.1 in.) Frequency Hopping Spread Spectrum (FHSS)

Documents

Frequently Asked Questions

Number of FAQs related to Spread-Spectrum Radios: 5

Expand AllCollapse All

  1. No. A spread-spectrum radio, like all FCC Part 15 devices, is not allowed to cause harmful interferences to licensed radio communications and must accept any interference that it receives.

  2. Spread-spectrum radios work by frequency hopping and transmitting at discrete frequencies over part of the unlicensed band, rather than by transmitting over a very wide part of the spectrum as some other devices do.

  3. Yes. Two spread-spectrum radios can be used to connect two computers.

  4. No. Removing the interference will remove the radio signal. The radio, like all FCC Part 15 devices, is not allowed to cause harmful interferences to licensed radio communications and must accept any interference that it receives.
