RetiredEvapotranspiration Monitoring Station
No longer available to order
This product is retained for service, documentation, and compatibility information.
- Model:
- ET107
- Item Number:
- 19268
- Warranty:
- 1 year
Overview
The ET107 is an automated weather station designed for irrigation scheduling in turf grass and commercial agriculture applications. The station calculates potential evapotranspiration (ETo), which is the amount of water lost from the soil due to evaporation and plant transpiration. Calculating evapotranspiration rate can aid in the development of an irrigation schedule that provides sufficient water without overwatering.
Key Advantages
for better irrigation scheduling
Technical Description
Our ET107 ETo station consists of meteorological sensors, an aluminum 3-m pole, and an environmental enclosure that houses a CR1000M module and a 7-Ahr sealed rechargeable battery. The battery is recharged via ac power or a 10-W solar panel. Sealed circular connectors are provided on the outside of the enclosure to simplify sensor hookup.
Meteorological sensors included with the ET107 are the CS305-ET Solar Radiation Sensor, HMP60-ETS Air Temperature and Relative Humidity Probe, TE525-ET Tipping Bucket Rain Gage, and either the 034B-ETM Wind Set or WindSonic1-ETM 2-D Sonic Wind Sensor.
The ET107 can also measure the:
Benefits
- Monitors temperature, relative humidity, wind speed and direction, solar radiation, and precipitation
- Automatically calculates potential evapotranspiration (ETo)
- Accurate measurements you can rely on
- Pre-configured with some pre-assembly for easy installation
- Rugged, low-power design for long-term, reliable operation
- Looks great and fits well in public settings
- Multiple sensor and communication options
Specifications
- -NOTE-
- The ET107 has components that have their own specifications.
To review these specifications, refer to the appropriate products below: CR1000 Measurement and Control Datalogger CS305-ET Solar Radiation Sensor for ET107 Stations HMP60-ETS Temperature/RH Probe for ET Station TE525-ET Rain Gage for ET Station 034B-ET Wind Set for ET Station WindSonic1-ET 2-D Sonic Wind Sensor with RS-232 Output for ET107 Station
Accessories
(10)CS650-LC
30 cm Water Content Reflectometer for ET107 Stations
Orderable19154
Status unavailable20586
1 W 900 MHz Spread-Spectrum Radio Kit for ET Stations
Orderable14205
900 MHz 6 dBd Yagi Antenna with Mounting Hardware
Orderable19256
Cell Phone Accessory Kit for an ET Station
OrderablePS24
24 Ah Power Supply with 10 x 12 in. Enclosure
Orderable18520
Mounting Kit with Hanger for 10 x 12 or 12 x 14 Enclosures
Orderable29354
Wi-Fi Kit for ET Stations
Orderable16902
900 MHz Spread-Spectrum Radio Kit
Orderable32453
RF422 868 MHz Radio Kit for ET Stations
Orderable
Other Accessories
(9)CS650-LC
30 cm Water Content Reflectometer for ET107 Stations
The CS650-LC is a multiparameter smart sensor that uses innovative techniques to monitor soil volumetric water content, bulk electrical conductivity, and temperature. It has 30-cm rods. Enter the cable length, in feet, after the -LC.
Orderable20586
1 W 900 MHz Spread-Spectrum Radio Kit for ET Stations
The 20586 is a 1 W, 900 MHz Spread Spectrum Radio Kit used with our ET107 weather stations. For the computer site, the kit contains an RF450 radio, 15966 ac transformer, 10873 RS-232 cable, and 20644 dipole antenna. For the field site, the kit contains another RF450 radio, 14241 antenna cable, and 18290 adjustable inclination mount. The PS24 power supply is recommended when using spread spectrum radio telemetery with a solar-powered ET107 Weather Station (see below).
Orderable14205
900 MHz 6 dBd Yagi Antenna with Mounting Hardware
The 14205 is a high-gain (6 dBd), directional (Yagi) antenna for the 20586 Spread Spectrum Radio Kit. It is used outdoors. The 14205 has a narrow beam width that requires precise aiming. Its higher gain makes it useful for communicating over longer distances.
Orderable19256
Cell Phone Accessory Kit for an ET Station
The 19256 includes the hardware required to mount a cellular phone modem inside of an ET107 enclosure. The cellular phone and antenna are not included (see below).
OrderablePS24
24 Ah Power Supply with 10 x 12 in. Enclosure
This power supply is recommended when using a spread spectrum radio or cellular phone with a solar-powered ET107 station. The PS24 consists of a 24-Ahr sealed rechargeable battery, CH100 regulator, enclosure mounting bracket, and a 10" x 12" environmental enclosure. The enclosure has one conduit for cable entry. The PS24 is mounted to the ET107 pole via the 18520 hanger mounting kit (see below).
Orderable18520
Mounting Kit with Hanger for 10 x 12 or 12 x 14 Enclosures
The 18520 hanger mounting kit is required to mount the PS24's enclosure to the ET107's pole.
Orderable29354
Wi-Fi Kit for ET Stations
The 29354 is a wireless networking peripheral that provides Wi-Fi connectivity over standard 802.11b/g/n networks. It is a low-power device that offers unique and powerful PakBus networking capabilities, but it is easy to configure.
Orderable16902
900 MHz Spread-Spectrum Radio Kit
The 16902 supports spread-spectrum radio communication in the US and Canada. Hardware provided for the base computer includes an RF407 250 mW spread-spectrum radio, 15966 ac transformer, 10873 RS-232 cable, and 15970 dipole antenna. Hardware for the station includes an RF407 radio, mounting bracket, antenna mounting bracket, patch cable, and 14241 antenna cable that terminates in a type N connector. The antenna for the station is not included and is ordered separately.
Orderable32453
RF422 868 MHz Radio Kit for ET Stations
The 32453 kit is used with our ET stations to provide license-fee 868 Mhz wireless serial communications in Europe. The RF422 radio included in the radio kit transmits data at 10 kbps with a maximum power of 25 mW. The radio employs listen-before-talk (LBT) and adaptive-frequency-agility (AFA) to provide a robust link of up to 5 km (line-of-sight). The RF422 supports point-to-point and point-to-multipoint datalogger communications.
Orderable
Replacement Parts
(5)6182
Replacement 7 Ah Sealed Rechargeable Battery for PS100 or PS150
The 6182 consists of a 7 Ah sealed rechargeable battery, leads, and a connector.
OrderableHMP60-ET
Temperature/RH Probe for ET Station
The HMP60-ET is the replacement temperature and RH sensor for older ET stations. The sensor's cable terminates in a connector and is the ideal length for attachment to the ET107 or ET106 ETo Weather Station.
OrderableTE525-ET
Rain Gage with 6 in. Orifice for ET Station
The TE525-ET is the tipping bucket raingage included with the ET107. It has a 6" orifice and a 55" cable that terminates in a connector for attachment to the ET107. The TE525-ET measures in 0.01" increments.
OrderableWINDSONIC1-ET
2-D Sonic Wind Sensor with RS-232 Output for ET107 Station
The WindSonic1-ET provides the ultrasonic anemometer but not the mount.
Orderable34150
ET Station Pole Assembly Kit
The 34150 is a kit that is used to secure the top and bottom halves of the 10489 aluminum pole for the ET107, T107, and WSPRO2 evapotranspiration stations. The 34150 includes the 34149 screw and the 34151 assembly instructions.
Orderable
Compatibility
Replacement sensors for the ET107 have a -ET or -ETM suffix. These sensors are listed under Ordering.
The ET107 can also measure the:
Related Resources

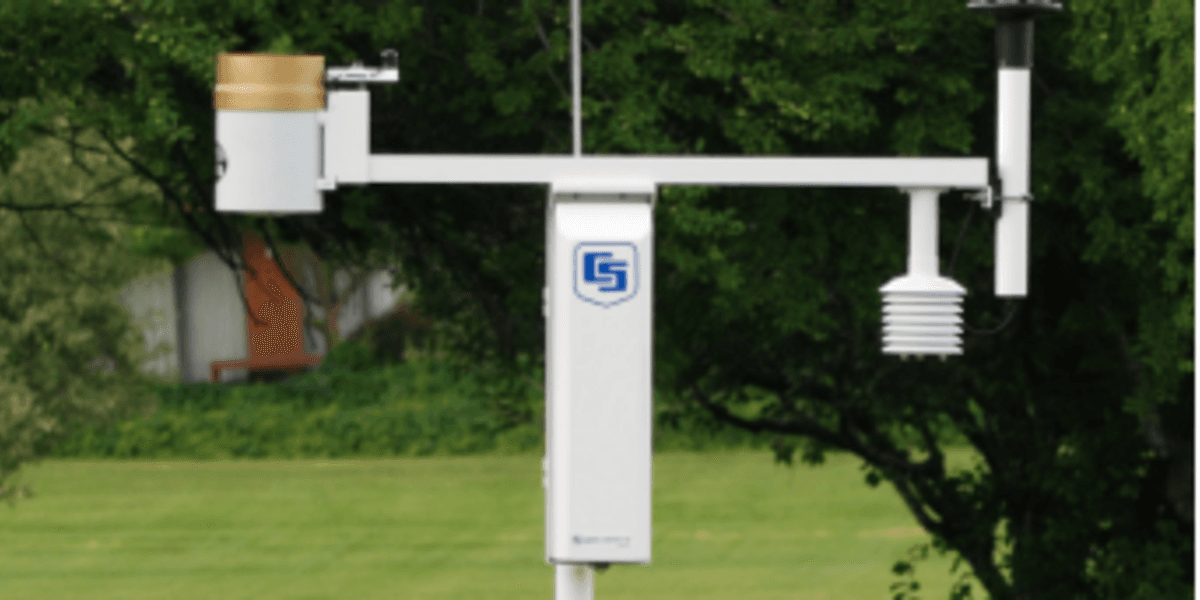

Case Studies
Documents
- Brochure
ET107 Evapotranspiration Station
June 2017
View Document - Manual
ET107 Evapotranspiration Monitoring Station
March 2021
View Document - Compliance
ET107, T107, and WSPRO2 UK Declaration of Conformity
View Document - Compliance
ET107, T107, and WSPRO2 EU Declaration of Conformity
View Document
Showing 4 of 5 results
See all DocumentsDownloads
- Software ApplicationsET107 Default Programs
March 29, 2021
One default program is for an ET107 with the 034B wind sensor and another default program is for an ET107 with a WindSonic1.
- Software ApplicationsET107 ETsz Example Programs
June 23, 2021
The ETsz() instruction requires the user to input lattitude, longitude, elevation, and crop type for a station's location in order to generate accurate calculations of ET. The Generic_ET_107_ETsz.CR1 and Generic_ET_107_ETsz_Windsonic.CR1 programs use the ConstTable() intruction to create a constants table that allows the user to easily input these values using Loggernet, PC400, or a keyboard display. These values only need to be set once, during station set up.
