DOT600 Roadbed Water-Content Meter
Compact, Portable
Measures water content of roadbed material in the field
weather applications water applications energy applications gas flux & turbulence applications infrastructure applications soil applications

Overview

The DOT600 is a stand-alone product that measures volumetric and gravimetric water content of samples of earthen material in roadbeds and foundations. Portability, along with quick and accurate measurements, make it a valuable tool for evaluating roadbed material both at the construction site and in the soil-test lab.

Read More

Benefits and Features

  • Measures water content, bulk density and compaction force, and volume and weight of soil samples
  • Integrated datalogger for quick results
  • High accuracy and high precision
  • Includes a rugged case and is completely portable
  • Generates a measurement report that can be easily imported into spreadsheets

Images

Detailed Description

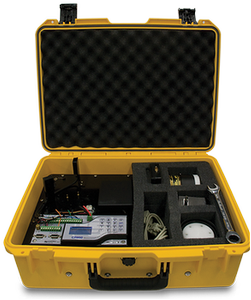

The DOT600 includes a sample chamber, CR850 datalogger, PC200W software, wall charger, and a rugged case. Samples collected from laboratory or field sites are placed in the chamber and compacted to a chosen pressure (15 to 45 psi). The water content is then calculated using dielectric permittivity sensitive methods. A separate scale and magnetic linear sensors measure the sample volume. The CR850 then calculates of bulk density, converts the measured volumetric water content to gravimetric water content, and stores the measurement results in a data table for permanent record.

Water Content Measurement Accuracy/Calibration

Accuracy is defined by comparing DOT600 measured water contents to independently determined values. The independent method is water content by gravimetric method (weighing wet and after oven drying).

The DOT600 water content measurement uses a calibration to convert sensor output period to volumetric water content. This calibration was derived at the factory based on different types of soil. The calibration coefficients will be determined by the Matrl type selected. Repeated measurements on the sandy loam soil over the water content range from air dry to about 70% saturation show deviations from independent measurements of less than ±1.5% volumetric water content.

Since the gravimetric water content measurement uses sample volume and weight to convert from measured volumetric water content, the accuracy of the gravimetric water content will be less than the volumetric value because of inherent errors of the volume and weight measurements.

Specifications

-NOTE- Refer to the CR850 product brochure for CR850 specification information.
Outside Case Dimensions 55.9 x 43.2 x 21.6 cm (22 x 17 x 8.5 cm)
Shipping Weight 10.64 kg (23.45 lb)

Battery

Type 2.9 Ahr rechargeable sealed lead-acid
Standby Charge Retention 95% (at 20°C for one year)
Life Expectancy ~500 cycles (with discharge to 50% followed by recharge)

Scale

Capacity 1000 g (35.3 oz)
Accuracy ±0.05 g (±0.002 oz)
Repeatability 0.02% FS

Water Content Measurement

Resolution 1% volumetric water content
Resolution is the minimum change in the measured parameter, water content, that the sensor can repeatedly detect.
Precision 0.75% volumetric water content
Precision is the expected range for repeated measurements on the same sample.

Sample Volume & Applied Force Measurement

Sample Volume ±1.5% (for compressed sample with thickness between 0.400 and 1.000 in.)
Sensitive Volume Electromagnetic field penetrates the sample 0.39 in. Sensitive volume is about 3.5 in.3.
Applied Pressure Range 0 to 45 psi
Applied Pressure Measurement Accuracy 1.7 psi

Compatibility

Components

The DOT600 is a stand-alone system that includes all of the components required to make and store the measurements.

Standard Equipment

  • CR850 datalogger
  • Wall transformer with cable and connector to charge DOT600 from AC power source
  • Sample chamber base
  • Sample chamber cylinder
  • Ratcheting box-end wrench
  • Compression cap
  • Sieve, 4 mesh
  • DOT600 operating manual
  • RS-232 serial cable
  • PC200W software

Optional Equipment

The following equipment are ordered as Common Accessories (see Ordering Info).

  • CR1000KD—keyboard/display for situations in which an external keyboard display is useful.
  • SC32B—optically isolated RS-232 interface for connecting the CR850 to the RS-232 port on an ac-powered PC.
  • SC-USB—optically isolated USB interface for connecting the CR850 to the USB port on an ac-powered PC.
