Campbell Scientific data-acquisition systems are used in structural and seismic monitoring projects ranging from simple beam-fatigue analysis to structural mechanics research to continuous monitoring of bridges and other large, complex structures. Unique to the Campbell Scientific approach to bridge monitoring is our patented spectral analysis (VSPECT®) technology that provides three advantages over the traditional time-domain method of reading vibrating-wire sensors:
VSPECT technology allows vibrating-wire sensors to be read dynamically up to rates of 333 Hz, providing dynamic as well as simultaneous measurements across the entire structure.
Our systems are used globally in remote, unattended, stationary, and portable monitoring projects for highway overpasses, roads, tunnels, buildings, retaining walls, overhead signage, lighting towers, and bridges. They are compatible with a wide variety of sensors and peripherals to provide unparalleled measurements of either static or dynamic stress, vibration, displacement, load, and tilt. Incorporating various weather sensors, you can monitor dynamic structural behavior—such as wind-induced vibration, wave impact stresses, unsafe conditions, natural structural frequency, and harmonic structural frequencies—and send broadcast alerts. When life is at stake, there is no reason not to use the very best.
Learn about our patented VSPECT® spectral-analysis technology at our VSPECT® Essentials web resource.
The dynamic vibrating-wire measurement technique is protected under U.S. Patent No. 8,671,758, and the vibrating-wire spectral-analysis technology (VSPECT®) is protected under U.S. Patent No. 7,779,690.Learn more

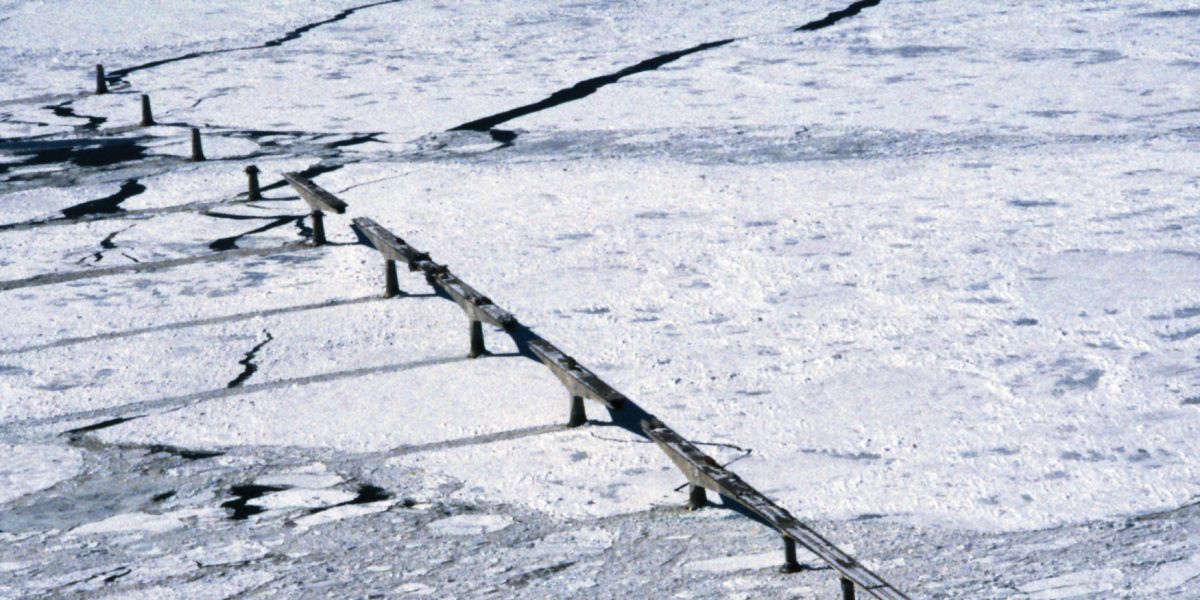

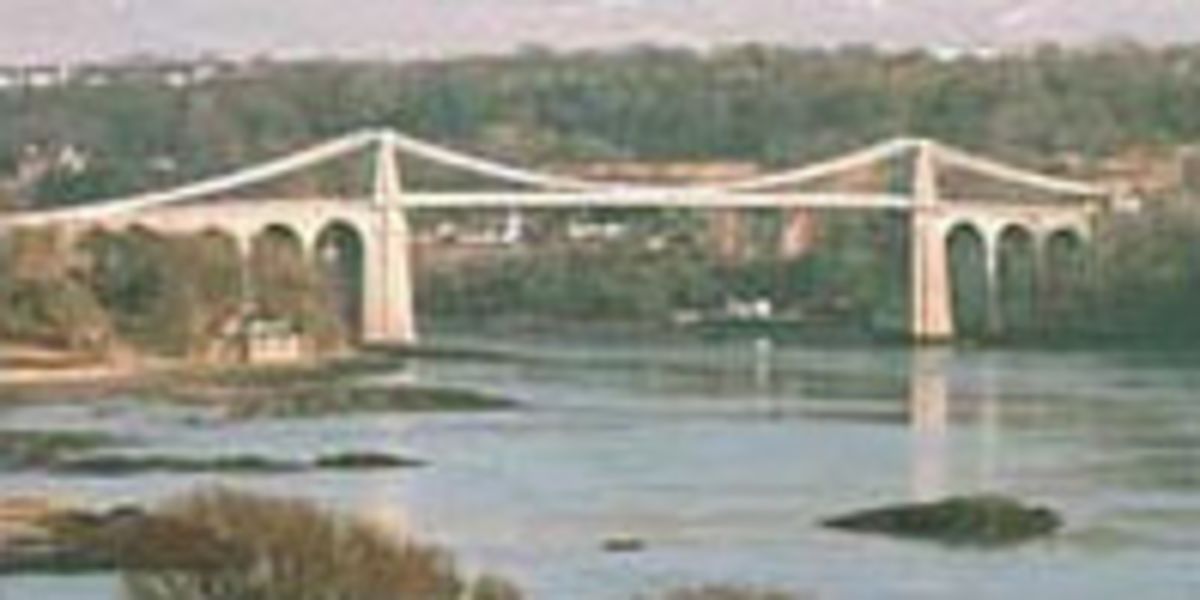

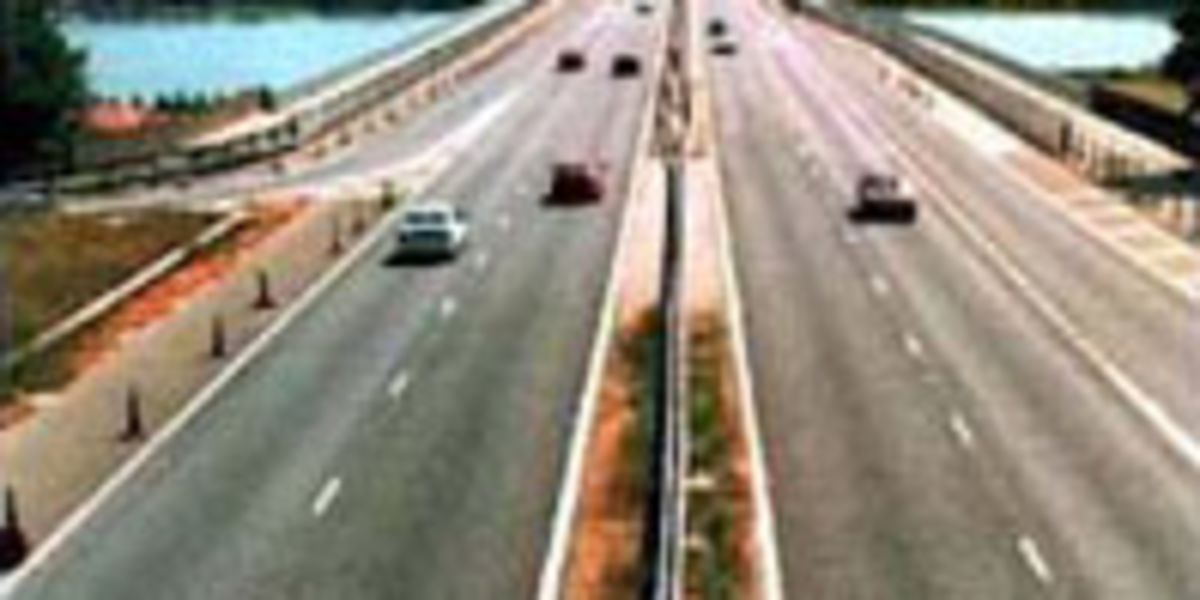

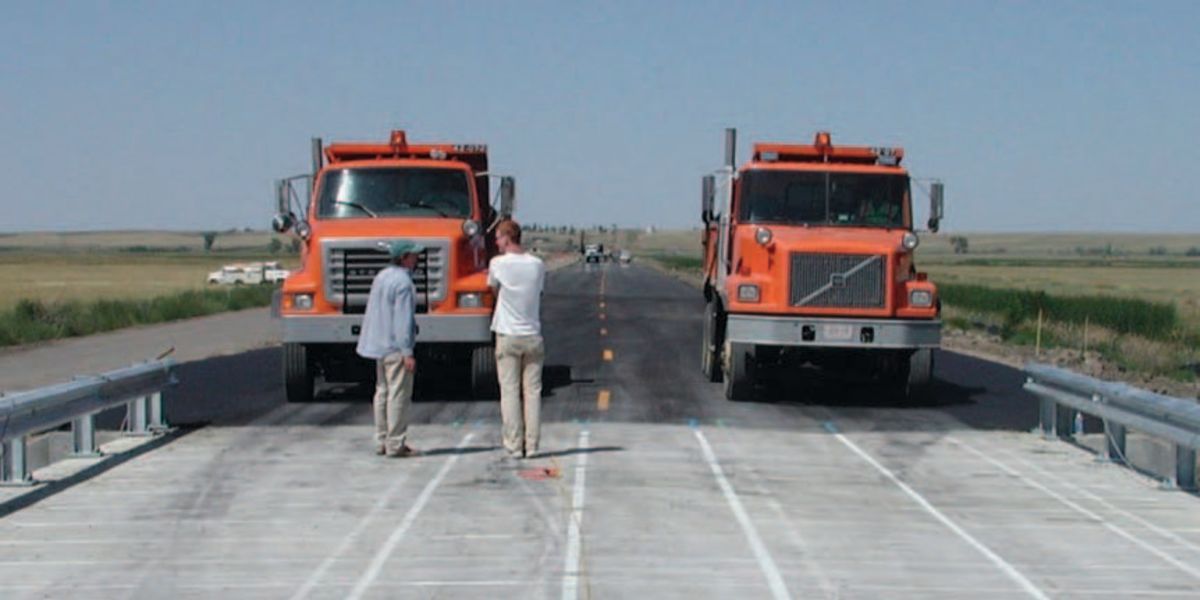

To see how our systems meet your application needs, review our case studies »
In addition to our standard systems available, many of the systems we provide are customized. Tell us what you need, and we’ll help you configure a system that meets your exact needs.
The versatility of our systems allows them to be customized for each application. We offer a range of data loggers, from the most basic system with just a few channels to expandable systems that measure hundreds of channels. Scan rates can be programmed from a few hours to 100,000 times per second, depending on the data logger model. Measurement types, recording intervals, and processing algorithms, are also programmable. Data loggers not only provide advanced measurement capabilities, but can also control external devices.
Onboard processing instruction sets contain programmed algorithms that process measurements and output results in the desired units of measure. For example, data can be displayed as rainflow or level crossing histograms. These rainflow and level crossing algorithms allow processing for extended periods of time, not just a limited number of cycles. The instruction sets also allow for triggered output with pretrigger data capture capability. Triggers can be based on sensor output, time, and/or user control. For example, if an overpass is being monitored, data collection can be triggered by a sensor detecting the approach of a car, an earthquake, pre-programmed times, or by pushing a button.
The control functions of our data loggers combined with their programmability allow them to sound alarms, actuate electrical devices, or shut down equipment based on time or measured conditions. Systems can also call out to phones, pagers, radios, and other devices to report site conditions. Voice-synthesized modems are available, so the system can actually call and tell you what is happening.
Because our data loggers are compatible with nearly every commercially available sensor, you can use the sensors that best meet your application. Typical sensors used for structural and seismic monitoring by our systems include:
Because our GRANITE™ Data-Acquisition Systems integrate with different measurement modules, each system has different channel types and programmable inputs. Channel types include analog (single-ended and differential), pulse counters, switched excitation, continuous analog output, digital I/O, and anti-aliasing filter. Using switched or continuous excitation channels, our data-acquisition systems provide excitation for ratiometric bridge measurements.
Our GRANITE™ Series allows you to customize a system with the channel types that best fit your application. The number and type of channels on most of our data-acquisition systems are expandable using multiplexers and other measurement peripherals.
The availability of multiple communications options for retrieving, storing, and displaying data also allows systems to be customized to meet exact needs. On-site communication options include direct connection to a PC or laptop, PC cards, storage modules, and data logger keyboard/display. Telecommunication options include short-haul, telephone (including voice-synthesized and cellular), radio frequency, multidrop, and satellite.
Our Windows-based software simplifies data logger programming, data retrieval, and report generation. The data logger program can be modified at any time to accommodate different sensor configurations or new data processing requirements.
Campbell Scientific's monitoring systems are used for a variety of structural and seismic applications. Monitoring possibilities on an overpass include:
Number of FAQs related to Bridge Monitoring: 1
Most Campbell Scientific systems are built from individual components. This provides maximum flexibility for our customers, but it does not lend itself to pricing a "typical" system. Contact Campbell Scientific for assistance in pricing a system to meet the unique needs of the application.
