Barometric Pressure Sensors

Product Line

Pressure Range Elevation Temperature Range Accuracy Current Consumption

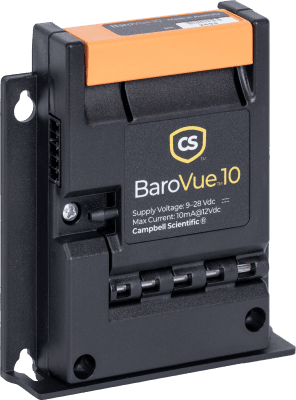

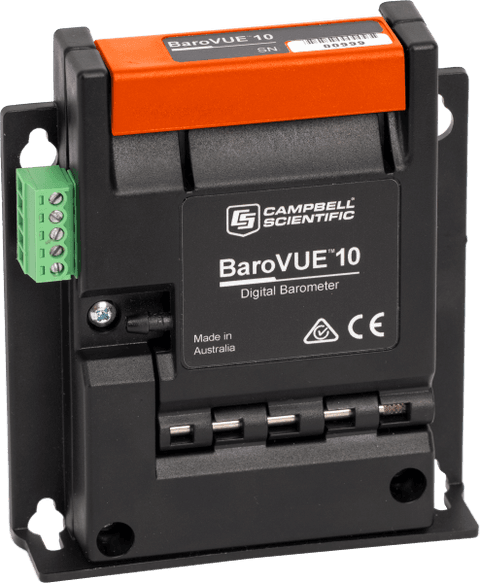

BaroVUE10

500 to 1100 hPa ~609.6 m (2,000 ft) below sea level (as in a mine) to 4,572 m (15,000 ft) above sea level -40° to +60°C
  • < 5 mA (active)
  • 200 µΑ (sleep mode)

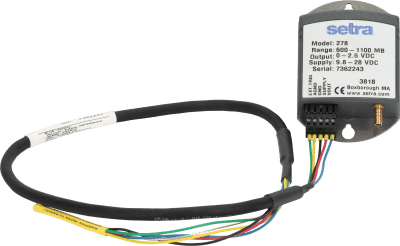

CS100

600 to 1100 hPa ~609.6 m (2,000 ft) below sea level (as in a mine) to 3,657.6 m (12,000 ft) above sea level -40° to +60°C
  • Accuracy refers to the root sum squared (RSS) of end point non-linearity, hysteresis, repeatability, and calibration uncertainty.
  • ±0.5 hPa (@ +20°C)
  • ±1.0 hPa (@ 0° to 40°C)
  • ±1.5 hPa (@ -20° to +50°C)
  • ±2.0 hPa (@ -40° to +60°C)
  • < 3 mA (active)
  • < 1 µΑ (sleep mode)

Other Products

Pressure Range Elevation Temperature Range Accuracy Current Consumption

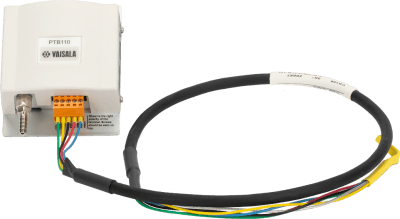

CS106

500 to 1100 hPa ~609.6 m (2,000 ft) below sea level (as in a mine) to 4,572 m (15,000 ft) above sea level -40° to +60°C
  • Accuracy refers to the root sum squared (RSS) of end point non-linearity, hysteresis, repeatability, and calibration uncertainty.
  • ±0.3 hPa (@ +20°C)
  • ±0.6 hPa (@ 0° to 40°C)
  • ±1.0 hPa (@ -20° to +45°C)
  • ±1.5 hPa (@ -40° to +60°C)
  • < 4 mA (active)
  • < 1 µΑ (quiescent)

092-L

600 to 1100 hPa
  • Sea level to 3048 m (10,000 ft)
  • ~609.6 m (2,000 ft) below sea level (as in a mine) to 3,657.6 m (12,000 ft) above sea level
-40° to +55°C
  • ±0.35 hPa (@ 20°C)
  • ±1.0 hPa (±0.03 in Hg) over full range
  • ±0.5 hPa (over any 200 hPa range)
10 mA @ 12 Vdc (typical)

Documents

Frequently Asked Questions

Number of FAQs related to Barometric Pressure Sensors: 18

Expand AllCollapse All

  1. Campbell Scientific recommends calibration on a yearly basis. However, conformance to published standards or regulations may require this on a more frequent basis.

  2. When using SDI-12 or RS-232 communication protocols, the pressure measurement can be returned in hPa, kPa, mmHg, inHg, or PSI. Refer to the BaroVUE10 manual for more information. If different measurement units are required, refer to a conversion chart.

  3. There is no warm-up time for the BaroVUE10.

  4. The quality metric is a unique diagnostic feature that indicates the quality of the pressure measurement returned by the sensor card (BVC10). It enables the user to monitor the health of their sensor to better schedule recalibrations.

    Quality Metric Range Description Comments

    > 6

    Sensor freshly calibrated

    5 to 5.99

    Sensor working well

    4 to 4.99

    In two to three months, this sensor will need to be recalibrated.

    Within three months, send the BaroVUE™10 to the factory for recalibration.

    0 to 3.99

    Recalibrate the sensor now.

    As soon as possible, send the BaroVUE™10 to the factory for recalibration.

  5. Contact your local Campbell Scientific office to purchase a calibrated BaroVUE10 sensor card (BVC10). After you receive the calibrated card, swap it with your current card, and mail it back to your local Campbell Scientific office. In this way, only one trip to the field site is required, and there will be no downtime for the sensor.

  6. Zero downtime/recalibration

    The BaroVUE10 has been designed to allow for zero downtime recalibration during normal use. Other sensors on the market need to be taken offline and sent back to the manufacturer to be recalibrated, often for weeks at a time, resulting in loss of data and costing time and money.

    In comparison, the sensor card of the BaroVUE10 is calibrated ahead of time and sent out to customers to replace the old sensor card, requiring only one trip to the field and no downtime.

    Further to this, the design of the BaroVUE10 allows customers to remove and replace their sensor card quickly and easily without having to disassemble the equipment in the enclosure or having to send the product back to the manufacturer. There is no need to turn the device off to replace the card.

    Highly reliable measurements

    The BaroVUE10 sensor card employs multiple sensor cells with statistical analysis to produce an accurate, precise, and repeatable measurement as well as a data-quality metric. The customer can use this quality metric for tracking calibration cycles, planning, maintenance schedules, and detecting pre-fault conditions.

    Low power

    The BaroVUE10 is a low power device and can be kept running continuously. The BaroVUE10 does not require any power cycling, unlike other products in this category.

    Very low noise

    The BaroVUE10 uses direct-to-digital sensors, and no analog-to-digital reconversion takes place inside the barometer.

    These factors, coupled with the multiple sensor cells, result in a reduction in noise when compared with analog sensors.

    Campbell Scientific aesthetics and form

    The BaroVUE10 has been designed with functionality in mind, and its aesthetic complements other Campbell Scientific products.

    The BaroVUE10 can be mounted in the orientation that best suits the application and has a smaller backplane footprint than its competitors.

  7. In most cases, the enclosures or buildings where the BaroVUE10 is housed have enough ventilation for the pressure to stay at equilibrium with the ambient pressure. Therefore, the sensor does not need to be vented to the outside

    However, if the sensor resides in an air-tight environment, and the pressure external to this environment needs to be measured, then the sensor will need to be vented to the outside. The preferred method for measuring the pressure external to the enclosure is to use a two-plate pressure port such as the RM Young 61002 to minimize dynamic pressure errors due to wind.

  8. While the measurement is equivalent, the BaroVUE10 is not a drop-in replacement. Unlike the CS100 and the CS106, the BaroVUE10 is a digital sensor that communicates either via SDI-12 or RS-232. To use the BaroVUE10 in a system that previously used a CS100/CS106, the wiring and program will need to be changed, as it is a digital sensor.

  9. Yes, but only if certain conditions are met:

    • The sensor must reside in a non-condensing environment.
    • The vent tube accessing the high-humidity environment must be extremely well desiccated to keep any moisture from reaching the sensor’s components. Moisture in the sensor will damage the sensor, often to an un-repairable state.
  10. It is possible that an older version of Short Cut is being used. Download the latest version of Short Cut.
