18017-L GPS Antenna Cable

Overview

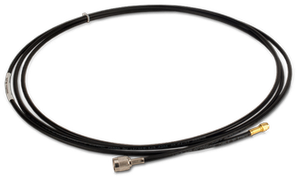

The 18017-L is an LMR-195 low-loss coaxial cable fitted with a TNC (plug) connector on one end and an SMA (plug) connector on the other end.

Images

Specifications

Connector 1 TNC plug, straight, threaded
Connector 2 SMA plug, straight, threaded
Cable Type LMR-195, polyethylene jacketed, black, solid core
Impedance 50 ohm
Maximum Frequency 11 GHz
Attenuation
  • 14.6 db/100 m (4.4 db/100 ft) @ 150 MHz
  • 25.5 db/100 m (7.8 db/100 ft) @ 450 MHz
  • 36.5 db/100 m (11.1 db/100 ft) @ 900 MHz
  • 62.4 db/100 m (19.0 db/100 ft) @ 2500 MHz
Suggested Minimum Bend Radius 50.8 mm (2 in.)
Operating Temperature -40° to +85°C
Length Specified at time of order.
Weight 0.03 kg/m (0.021 lb/ft)

Compatibility

This product connects to devices with TNC and SMA jacks. It is typically used to connect the 17992 GPS antenna to the TX320 or AL200, or to connect the 30741 Iridium antenna to the Iridium 9522B.
