ALERT200X
ALERT200X
OrderableALERT and ALERT2 Transmitter with AL200X Modem and VHF Radio
Pricing
Configuration
Sign in for option pricing- Canister OptionALERT200X-CPart Number: 44393
- Enclosure OptionALERT200X-EPart Number: 44173
- Panel OptionALERT200X-PPart Number: 44174
Select a configuration to add to your quote
- Model:
- ALERT200X
- Item Number:
- ALERT200X
- Warranty:
- 3 yr system/1 yr radio
Overview
The ALERT200X is the next-generation ALERT and ALERT2 transmitter designed to deliver reliable, real-time hydrologic and meteorologic data for critical flood warning applications. At its core, the AL200X ALERT and ALERT2 Modem and Sensor Interface operates in field station mode, providing advanced functionality through a familiar and easy-to-use interface. With expanded sensor inputs and outputs, the ALERT200X provides the versatility required for most remote stations while delivering a powerful and cost-effective solution for modern flood warning networks.
The transmitter can be configured for ALERT or ALERT2, giving you the flexibility to meet today’s requirements and prepare for future upgrades. Transitioning from ALERT to ALERT2 is simple; just update the configuration without replacing any hardware. With the canister, enclosure, and panel options, the ALERT200X easily adapts to your installation needs—even if you deploy new stations or upgrade existing ones.
Whether you manage a single watershed or a regional network, the ALERT200X gives you the confidence to make timely, informed decisions. Protect lives, safeguard property, and enhance resilience with the transmitter built to perform when it matters most.
Note: ALERT2 is a trademark of the National Hydrologic Warning Council.

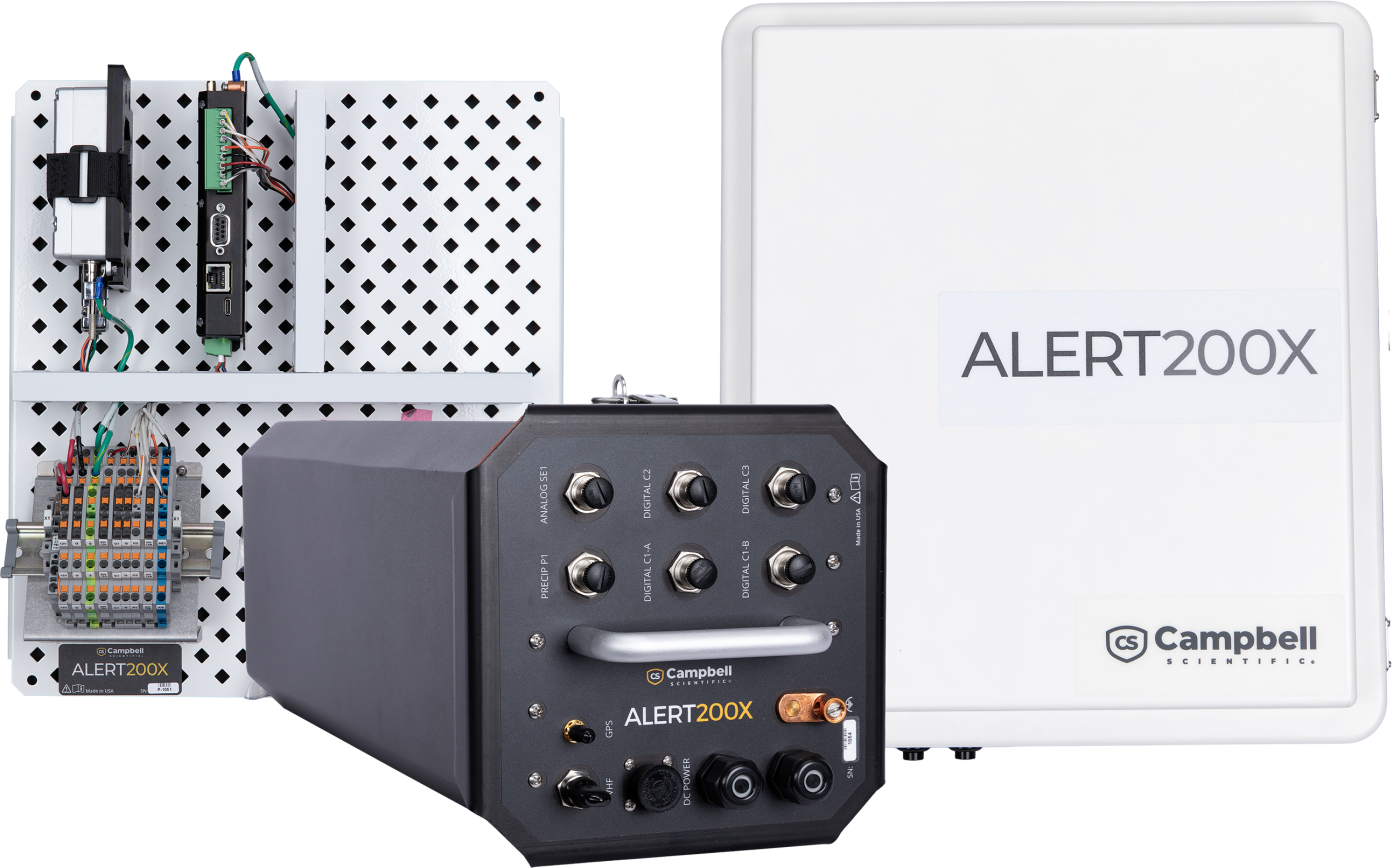

Note: The main image displays the canister, enclosure, and panel options collectively. Each option is sold separately.
Key Advantages
Fully configurable transmitter for ALERT and ALERT2 systems
Technical Description
The ALERT200X is built around an AL200X ALERT and ALERT2 Modem and Sensor Interface and the industry-standard Maxon VHF radio. It includes integrated GPS from the AL200X for accurate, real-time clock synchronization.
Note: A GPS antenna is required for ALERT2 applications and is highly recommended for ALERT.
The ALERT200X is available in three different package options to meet your needs:

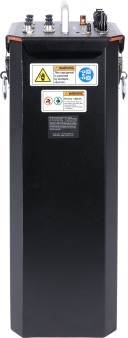

- The canister option includes six standard, M12, eight-pin, circular connectors for sensor I/O, as well as coaxial connectors for GPS and VHF radio. You can easily connect existing sensors at your field station using the available M12, field-wirable connector kits.
- The enclosure option is built around the same platform as the canister option, but it is housed in a fiberglass enclosure with cable glands and internal DIN rail terminals for connecting external sensors.

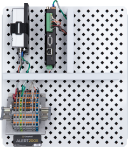

- The panel option is designed for applications where an enclosure will be provided separately. It carries the same design as the enclosure panel with DIN rail terminals for easy sensor connections.
All three options are configured, deployed, and maintained via the intuitive AL200X user interface using Campbell Scientific's Device Configuration Utility (DevConfig).
Benefits
- Canister, enclosure, or panel configuration to fit any flood warning station
- Modular mounting of components for more convenient field servicing and expansion
- Updated M12 canister connector for easier connection of new and existing sensors
- Additional sensor or external communications cable routing with two spare, sealed cable-entry glands on the canister
- Power any site with up to a 24 Ah battery, supported in all configurations
- Reduced setup time and simplified maintenance with an intuitive user interface
Specifications
- -NOTE-
- For specifications, refer to the AL200X ALERT and ALERT2 Modem and Sensor Interface and the 44566 ALERT2 Maxon Radio with User-Specified Frequencies.
- GPS Connector
- SMA
- VHF Antenna Connector
- BNC
- Radio
- Maxon SD-125E V2 VHF Radio 148 to 174 MHz
- Power Input
- 9 to 18 Vdc
(without internal battery)
13.2 to 13.8 Vdc(sourced from external charge controller)
Canister
- Sensor I/O Connection
- 6x M12 eight-pin
- Power Connector
- MS connector three-pin
- Dimensions
- 20.3 x 20.3 x 57.2 cm
(8.0 x 8.0 x 22.5 in.)
- Weight
- 5.3 kg
(11.7 lb)
Enclosure
- Sensor I/O Connection
- Compression fitting, DIN rail terminals
- Power Connector
- Compression fitting, DIN rail terminals
- Dimensions
- 40.6 x 45.7 x 20.3 cm
(16.0 x 18.0 x 8.0 in.)
- Weight
- 6.5 kg
(14.25 lb)
Panel
- Sensor I/O Connection
- DIN rail terminals
- Power Connector
- DIN rail terminals
- Dimensions
- 34.3 x 38.1 x 12.7 cm
(13.5 x 15.0 x 5.0 in.)
The panel is the 18823 Universal Backplate for ENC14/16 Enclosure. Reference that page for drawings. - Weight
- 2.1 kg
(4.6 lb)
Accessories
(11)10072
12 V 24 Ah Battery without Cable
OrderableBP12
12 Ah 12 V Sealed Rechargeable Battery with Mounts
OrderableBP24
24 Ah 12 V Sealed Rechargeable Battery
Orderable31182
27 dBi GPS Antenna with 3 V Magnetic Mount and SMA Connector
Orderable17992
28 dBi 3.3 V active GPS Antenna without Cable
Orderable30626
3/4 in. IPS or GPS Antenna Mounting Stand
Orderable35540
GPS Antenna Kit
Orderable35539
VHF Antenna Kit
OrderableALERT2ADM
ALERT2 Administrator (requires LoggerNetADM)
Orderable44328
Field-Wirable, M12, Eight-Pin Plug Connector
Orderable31608
Flat-Bladed Screwdriver, 2 mm Blade x 40 mm Shaft
Orderable
Common Accessories
(24)8054
12 V 12 Ah Battery without Cable
The 8054 is a rechargeable, 12 V, 12 Ah battery that can power an ALERT system.
Orderable10072
12 V 24 Ah Battery without Cable
The 10072 is a rechargeable, 12 V, 24 Ah battery that can power an ALERT system. Note: This is only needed for the canister version.
OrderableBP12
12 Ah 12 V Sealed Rechargeable Battery with Mounts
The BP12 is a rechargeable, 12 V, 12 Ah battery pack that can power a Campbell Scientific system that has components that have above-average power requirements, such as satellite transmitters. Note: This is only needed for the panel and enclosure versions.
OrderableBP24
24 Ah 12 V Sealed Rechargeable Battery
The BP24 is a rechargeable 12 Vdc, 24 Ah battery pack that can power a Campbell Scientific system. It is intended for high-current-drain systems, such as satellite transmitters, that require more power. Note: This is only needed for the panel and enclosure versions.
OrderableSP10
10 W Solar Panel
The SP10 is a 10-W photovoltaic power sources capable of recharging batteries. The SP10 has a sufficient charging source for many of our system configurations in tropical to temperate latitudes. It allows unattended operation of systems in remote locations, far from AC electrical sources.
OrderableSP20
20 W Solar Panel
The SP20 is a 20 W solar panel. It is often used for system configurations that have higher-than-average power requirements, or in higher elevation and latitude locations. It connects to Campbell Scientific power supplies and battery bases to recharge the battery, and it allows unattended operation of systems in remote locations that are far from ac electrical sources.
OrderableCH150
12 V Charging Regulator
The CH150 is a charging regulator for an external rechargeable 12 V VRLA (valve-regulated lead-acid) battery, such as the BP12 or BP24 offered by Campbell Scientific. Charging power for the CH150 is typically supplied by an unregulated solar panel, AC/AC transformer, or AC/DC converter. The CH150 provides charging with temperature compensation for optimal charging and battery life. A maximum power point tracking algorithm is incorporated for solar inputs to maximize available solar charging resources.
OrderableCH201
12 V Charging Regulator
The CH201 is a microcontroller-based smart charge controller that is ideal for charging 12 Vdc VRLA batteries. The charger uses MPPT (maximum power point tracking) technology to safely manage amperage and voltage for optimal battery charging and longevity. It has dual inputs for use with a solar panel and/or any 15 to 50 Vdc charging source. The dual inputs provide the option for fail-safe charging. The CH201 also outputs various parameters to allow close monitoring of the battery and power usage via RS-232 or SDI-12.
OrderableALERTCBL3
ALERT Power Cable
The ALERTCBL3 is an ALERT system power cable.
OrderableCABLEPCBL
2-Conductor 16 AWG Power Cable
The CABLEPCBL is a 16 AWG, two-conductor cable with a Santoprene jacket. The conductors are stripped and tinned. This generic cable is used to power remote peripherals.
Orderable44328
Field-Wirable, M12, Eight-Pin Plug Connector
The 44328 Field-Wirable, M12, Eight-Pin Plug Connector is designed to adapt existing sensors in the field to Campbell Scientific systems that include an M12, eight-pin socket connection. The connector can accept an 18 to 24 AWG wire into screw terminals that require a 2 mm flat-bladed screwdriver for tightening.
Orderable31608
Flat-Bladed Screwdriver, 2 mm Blade x 40 mm Shaft
The 31608 is a small, flat-bladed screwdriver that is recommended for field-wirable circular connectors. The blade is 2 mm across, and the untapered shaft length is 40 mm. The handle has an approximate length of 8 cm, and it features a rotating end cap that makes the screwdriver easy to rotate.
Orderable19002
Enclosure Tripod Mast Mounting Kit
The 19002 is used to mount a Campbell Scientific enclosure to a tripod mast or to a user-supplied pole with a 1.25" to 2.1" outer diameter. The 19002 is option -MM when it's ordered with the enclosure.
Orderable19017
Enclosure Tower Mounting Kit
The 19017 is used to mount a Campbell Scientific enclosure to a UT10, UT20, or UT30 tower. The 19017 is option "TM" when ordered with the enclosure.
Orderable27390
Enclosure Mounting Kit for 4 to 10 in. Tube
The 27390 provides mounting hardware for attaching a Campbell Scientific enclosure to a pole with a 4" to 10" outer diameter. When ordered with the enclosure, the 27390 is option -PM.
Orderable31182
27 dBi GPS Antenna with 3 V Magnetic Mount and SMA Connector
The 31182 is a magnetic mount GPS patch antenna. It is typically used where GPS reception is readily available and concern is low for snow buildup completely covering the antenna. The 31182 is also commonly used in cost-sensitive applications or applications that require a small-sized, low-profile antenna. This antenna connects to a GPS receiver with SMA connector, such as that found in the AL200, LS300G, TX320, and WEATHERPAK®M. The antenna package is waterproof and corrosion resistant. The 31182 conveniently mounts to any magnetic surface, which includes the 30626 and CM235 mounts offered by Campbell Scientific.
Orderable17992
28 dBi 3.3 V active GPS Antenna without Cable
This GPS antenna is typically used with the TX326, TX325, and TX320 satellite transmitters or the AL200 ALERT modulator. This active GPS antenna provides 28 dBi of preamp for weak signal or long cable run applications. It also provides filtering to improve immunity to other RF signals, making it highly jam resistant. Its weatherproof package is designed to withstand exposure to shock, vibration, extreme temperatures, rain, snow, and sun. The antenna conveniently mounts to any 1 to 14" thread or 3/4" pipe thread, which includes the 30626 and 7623 mounts offered by Campbell Scientific.
Orderable30626
3/4 in. IPS or GPS Antenna Mounting Stand
The 30626 is an antenna mounting bracket designed for antennas with 3/4 in. IPS mounting threads. It is most commonly used with the 17992 GPS antenna or the 30741 Iridium antenna. Because the 30626 is made from steel, it is suitable for mounting small magnetic-mount antennas typically seen with GPS patch antennas.
Orderable7623
3/4 IPS 10 in. Aluminum Pipe with Threads
This aluminum 0.75" IPS threaded pipe has a 10" length. The 7623 allows attachment of a 03001 Wind Sentry or GPS antenna to a CM202, CM204, or CM206 crossarm via a 1049 Nu-Rail fitting or CM220 right-angle bracket. The GPS antenna is used with the TX320, TX312, and TX325 GOES satellite transmitters.
Orderable31326
Surge Protection Kit, GPS Antenna Type N to SMA
The 31326 is a GPS RF surge protection kit with flange mounting bracket. It may be flange-mounted to an enclosure backplate or bulkhead-mounted through an enclosure wall. One side of the surge protector connects to a GPS receiver with an SMA antenna connection. The other side connects to the GPS antenna/antenna coaxial cable with Type N connector. The surge protector passes up to ±6 Vdc, commonly needed for active GPS antenna applications.
OrderableCOAX3NT
LMR195 Antenna Cable with Type N Pin (Male) and TNC Pin (Male) Connectors
The COAX3NT is an LMR195 coaxial cable fitted with a Type N pin (male) connector on one end and a TNC pin (male) connector on the other end. This cable is commonly used to connect a GPS antenna with TNC connector to an in-line surge suppression, or to connect an antenna with Type N connector directly to a radio with a TNC connector.
Orderable35539
VHF Antenna Kit
This VHF antenna kit includes all the necessary cables, mounts, connectors, and antenna for typical VHF radio applications.
OrderableALERT2ADM
ALERT2 Administrator (requires LoggerNetADM)
ALERT2 Administrator is ideal for ALERT2 and ALERT network administrators who have smaller networks (1 to 100 stations) or who are seeking a more cost-effective solution for collecting and monitoring their data. This simple, reliable, and flexible software package aids network administrators in distributing data to their constituents.
OrderableLoggerNet Admin
Admin Datalogger Support Software (Server and Clients)
LoggerNet Admin builds on the foundations of LoggerNet, providing additional clients, capabilities, and tools that are useful when managing a large data logger network.
Orderable
Replacement Parts
(9)44619
Circular Connector Cap for M12 Sensor
The 44619 is a screw-in protective cap for M12 circular connectors used on the Aspen™10 Edge Device for a Single Sensor and the ALERT200X and ALERT205X canister options. The cap threads into the connector to help create an IP67 seal. You can purchase the 44619 as a replacement cap or as added protection for compatible equipment.
Orderable44331
Protective Cap for BNC Antenna Connector
The 44331 is a protective cap for BNC circular connectors used on the ALERT200X and ALERT205X canister and enclosure options. You can purchase the 44331 as a replacement cap or as added protection for compatible equipment.
Orderable17051
Protective Cap for SMA Antenna Connector
The 17051 is a protective cap for SMA circular connectors. You can purchase the 17051 as a replacement cap or as added protection for compatible equipment.
Orderable27686
Protective Cap for 10SL Connector
The 27686 is a cap for 10SL canister connectors.
Orderable42815
Four-Unit Desiccant Bags (quantity of 10)
The 42815 includes 10 large, four-unit desiccant bags, used to absorb humidity within enclosures. Multiple packs are recommended for customers who need to desiccate multiple enclosures or systems.
Orderable28878
Replacement Enclosure Humidity Indicator Card
The 28878 is a replacement humidity indicator card. It provides a visual reference of humidity level inside the enclosure. Colored circles change color from blue to pink to indicate levels of 30%, 40%, and 50% relative humidity. Double sticky tape on the back of the card allows it to be easily secured to an enclosure lid.
Orderable38790
USB Cable, Type A Pin (Male) to Type C Pin (Male), 6 ft
The 38790 is a USB cable for attaching an AL200X ALERT2 Modem and Sensor Interface to a USB port on a PC. It has a type A pin (male) connector for connecting to the PC's USB port and a type C connector for connecting to the device.
Orderable44566
ALERT2 Maxon Radio with User-Specified Frequencies
The 32403 is a 148 to 174 MHz radio, manufactured by Maxon Australia. The 32403 is a rugged, narrowband UHF/VHF 5 W radio transceiver that provides a long-distance telemetry option for communicating with remote measurement stations. The 32403 is designed for customers with an FCC-assigned frequency in the range of 148 to 174 MHz. The 32403 is well-suited for use with transmitters in Campbell Scientific ALERT/ALERT2 networks. An FCC license is required.
OrderableAL200X
ALERT and ALERT2 Modem and Sensor Interface
The AL200X is an ALERT2 modem and sensor interface for use in critical flood warning weather systems. It meets the ALERT2 standards maintained by the National Hydrologic Warning Council (NHWC) and ALERT Users Group (AUG). ALERT2 improves the accuracy and performance of flood warning systems and software by providing faster data transfer, forward error correction, and a time division multiple access (TDMA) architecture.
Orderable
Ships With
(4)
Compatibility
The ALERT200X system is ALERT and ALERT2 compatible.
