Overview

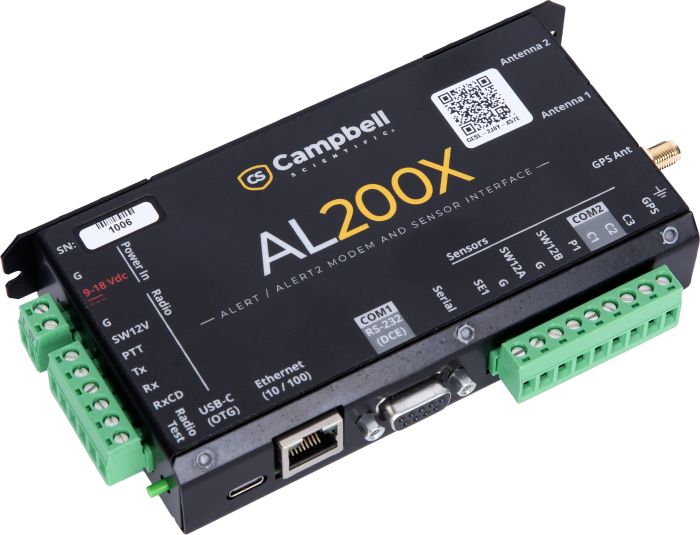

The AL200X is an ALERT2 modem and sensor interface for use in critical flood warning weather systems. It meets the ALERT2 standards maintained by the National Hydrologic Warning Council (NHWC) and ALERT Users Group (AUG). ALERT2 improves the accuracy and performance of flood warning systems and software by providing faster data transfer, forward error correction, and a TDMA architecture.
With integrated sensor inputs and outputs, the AL200X enables you to create a minimal ALERT2 transmitter/station, decreasing the cost of a typical flood warning system. Internal storage provides data logging capabilities to enhance troubleshooting and maintenance activities. The switched 12 volt and control ports can be configured to provide logic for control of other devices, such as warning beacons. Combining the AL200X with a Campbell Scientific data logger provides enhanced sensor support and extended telemetry options.
Read MoreBenefits and Features
- Minimize setup time with easily configurable user software.
- Reduce system costs with integrated sensor inputs and data logging.
- Generate event- or schedule-driven reports for battery, clock, tipping bucket, voltage, current, SDI-12, and high/low state.
- Smoothly integrate into new and existing systems with screw terminals for power, radio, and sensors.
- Decrease field time with quick-access features for initiating sensor test transmissions, testing radio power, and checking antenna (VSWR) performance.
- Ensure data integrity with encrypted ALERT2 messages.
- Support 250-millisecond slots and configurable forward error correction to enable high data-rate transmissions over strong RF paths.
Images
CAD Files:
Detailed Description
Terminal Descriptions
- SE1: One single-ended analog input to measure 0 to 5 Vdc or 4 to 20 mA sensors
- P1: One pulse port for measuring tipping bucket rain gauges
- C1, C2, and C3: Three digital I/O control ports that can be configured for SDI-12 as separate buses, digital input, or digital output
- SW12A and SW12B: Two switched 12 Vdc power outputs that can be programmed to power sensors on and off
- G: Two grounding ports
Operating Modes
The AL200X can be configured to operate in measurement and control mode as a stand-alone device or in Intelligent Network Device (IND) mode to connect to an external device, such as a data logger.
- The measurement and control mode activates the sensor input and output ports to operate as an ALERT2 transmitter.
- The IND mode allows connection to a data logger through the COM1 RS-232 interface for expanded sensor and telemetry device support.
Both configuration modes use the integrated radio and GPS interfaces.
Configuration
Easily configure the AL200X with the familiar Device Configuration (DevConfig) software utility. The intuitive user interface enables you to easily set up and maintain a station, spending less time in the field. You can configure the sensor input and output in either basic or advanced mode, providing flexible control over the device. The provided data monitor helps you view the current system data and the past three measurements. The command terminal offers powerful control over the AL200X, enabling access to raw sensor traffic, data logs, and SDI-12 sensor configuration, in addition to other features.
Compatibility
Note: The following shows notable compatibility information. It is not a comprehensive list of all compatible or incompatible products.
Data Loggers
| Product | Compatible | Note |
|---|---|---|
| 21X (retired) | ||
| CR10 (retired) | ||
| CR1000 (retired) | ||
| CR1000X (retired) | ||
| CR1000Xe | ||
| CR10X (retired) | ||
| CR200X (retired) | ||
| CR206X (retired) | ||
| CR211X (retired) | ||
| CR216X (retired) | ||
| CR295X (retired) | ||
| CR300 (retired) | ||
| CR3000 (retired) | ||
| CR310 | ||
| CR350 | ||
| CR500 (retired) | ||
| CR5000 (retired) | ||
| CR510 (retired) | ||
| CR6 | ||
| CR800 (retired) | ||
| CR850 (retired) | ||
| CR9000 (retired) | ||
| CR9000X (retired) |
Specifications
| Operating Temperature |
|
| Case Material | Anodized aluminum |
| Analog Input |
|
| Pulse Counter |
|
| Digital I/O |
|
| Switched 12 Volt |
|
| Communications Ports |
|
| Power Requirements |
|
| Current Drain |
|
| GPS Antenna Connection |
|
| System Timekeeping |
|
| Radio Interface |
|
| Data Storage | 128 MB on-board flash |
| Test Button | Initiates a 1 kHz transmit tone or self-report transmission |
| Dimensions | 15.9 x 7.7 x 2.8 cm (6.3 x 3.0 x 1.09 in.) |
| Weight | 249 g (0.55 lb) |
Standards |
|
| ALERT2 |
|
| Compliance |
|
