ALERT205X

ALERT2 Transmitter with CR310 Datalogger, AL200X Modem, and VHF Radio
ALERT205X

ALERT205X

Orderable

ALERT2 Transmitter with CR310 Datalogger, AL200X Modem, and VHF Radio

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
ALERT205X
Item Number:
46690
Warranty:
3 yr system/1 yr radio

Overview

The ALERT205X is an advanced ALERT2 transmitter designed for unmatched, long-term deployment reliability in new and existing critical flood monitoring systems. At its core, the AL200X ALERT and ALERT2 Modem and Sensor Interface operates in intelligent network device (IND) mode connected to the tried-and-true CR310 Measurement and Control Datalogger. The ALERT205X offers expanded analog inputs, integrated Wi-Fi or cellular communications options, advanced data logging, and an intuitive web-based user interface for system configuration.

The ALERT205X offers three form factors: canister, enclosure, and panel, ensuring compatibility with diverse installation requirements. In addition, as the heart of any ALERT2 or flood warning installation, the reliable ALERT205X can measure nearly any sensor on the market and provide you with accurate, defensible data necessary for making critical, time-sensitive decisions.

Whether you manage a single watershed or a regional network, the ALERT205X gives you the confidence to make timely, informed decisions. Protect lives, safeguard property, and enhance resilience with the transmitter built to perform when it matters most.

Note: ALERT2 is a trademark of the National Hydrologic Warning Council.

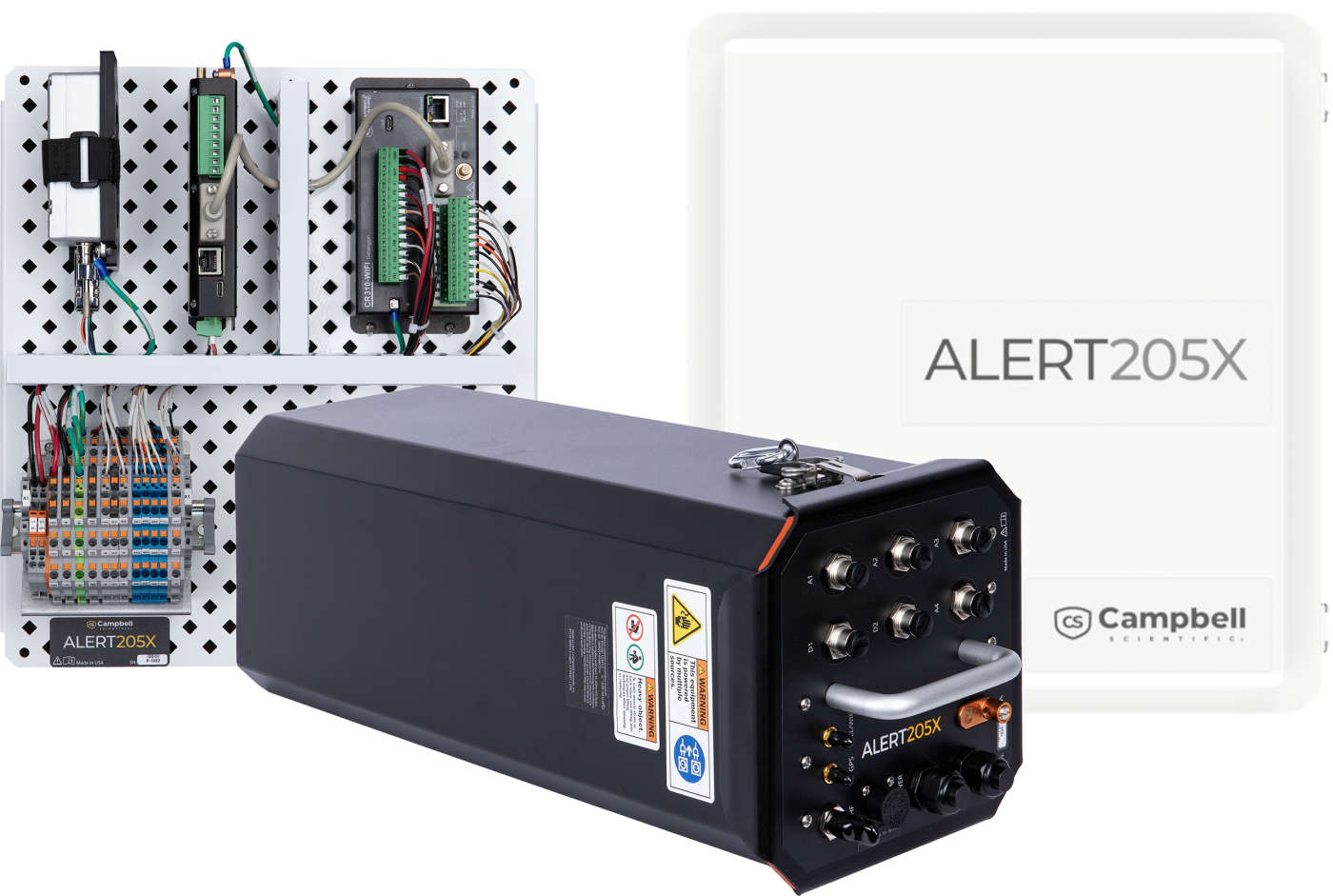

Note: The main image displays the canister, enclosure, and panel options collectively. Each option is sold separately.

Key Advantages

Intuitive Design with ALERT2 Reliability
Purpose-built to support long-term flood monitoring

Technical Description

The ALERT205X is a combination of an ALERT2 IND and an application protocol device (APD), which is typically referred to as an ALERT2 transmitter. The ALERT205X is built around a CR310 Measurement and Control Datalogger with optional integrated communications options, an AL200X ALERT and ALERT2 Modem and Sensor Interface, and the industry-standard Maxon VHF radio.

The ALERT205X is available in three different package options to meet your needs:

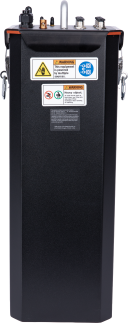

  • The canister option includes six standard, M12, eight-pin, circular connectors for sensor I/O, as well as coaxial connectors for GPS, VHF radio, and optional integrated communications (Wi-Fi and cellular).
  • The enclosure option is built around the same platform as the canister option, but it is housed in a fiberglass enclosure with cable glands and internal DIN rail terminals for connecting external sensors.
  • The panel option is designed for applications where an enclosure will be provided separately. It includes DIN rail terminals for easy sensor connections.

All three options are configured, deployed, and maintained via the same mobile-friendly user interface. You can view the interface using a PC or mobile device web browser, and you can access the interface via a Wi-Fi, cellular, or USB connection.

Note: The use of a cellular or Wi-Fi connection is not part of the standard offering, and these options incur an additional fee.

Benefits

  • Canister, enclosure, or panel configuration to fit any flood warning station
  • Remote system monitoring with cellular communications options
  • Compatibility with all ALERT2 repeaters, receivers, and base station software packages
  • Field configurable through a web-based user interface; no programming required
  • Updated M12 canister connectors for easier connection of new and existing sensors
  • Additional sensor or external communications cable routing with two spare, sealed cable-entry glands on the canister
  • Accommodation for up to a 24 Ah rechargeable battery for unattended use in all conditions

Specifications

-NOTE-
For specifications, refer to the AL200X ALERT and ALERT2 Modem and Sensor Interface, CR310 Measurement and Control Datalogger, and 44566 ALERT2 Maxon Radio with User-Specified Frequencies.
GPS Connector
SMA
VHF Antenna Connector
BNC
Radio
Maxon SD-125E V2 VHF Radio 148 to 174 MHz
Power Input
16 to 32 Vdc

(connected to CHG port of CR310)

Canister

Sensor I/O Connection
6x M12 eight-pin
Power Connector
MS connector three-pin
Dimensions
20.3 x 20.3 x 57.2 cm

(8.0 x 8.0 x 22.5 in.)

Weight
5.8 kg

(12.8 lb)

Enclosure

Sensor I/O Connection
6x compression fittings, DIN rail terminals
Power Connector
Compression fitting, DIN rail terminals
Dimensions
40.6 x 45.7 x 20.3 cm

(16.0 x 18.0 x 8.0 in.)

Weight
7.1 kg

(15.7 lb)

Panel

Sensor I/O Connection
DIN rail terminals
Power Connector
DIN rail terminals
Dimensions
34.3 x 38.1 x 12.7 cm

(13.5 x 15.0 x 5.0 in.)

The panel is the 18823 Universal Backplate for ENC14/16 Enclosure. Reference that page for drawings.
Weight
2.6 kg

(5.8 lb)
