44328

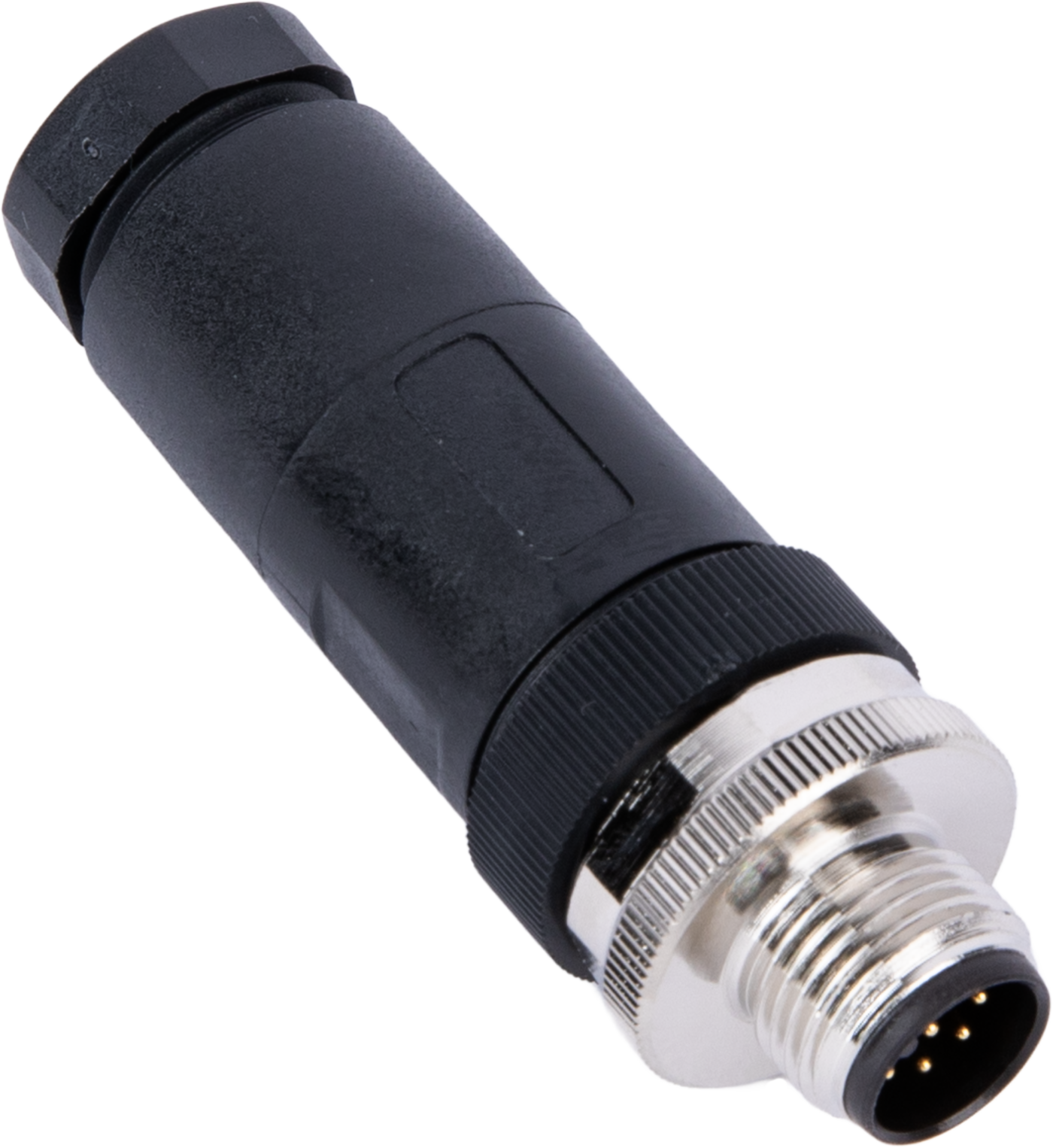

Field-Wirable, M12, Eight-Pin Plug Connector
44328
OrderableField-Wirable, M12, Eight-Pin Plug Connector
Overview
The 44328 Field-Wirable, M12, Eight-Pin Plug Connector is designed to adapt existing sensors in the field to Campbell Scientific systems that include an M12, eight-pin socket connection. The connector can accept an 18 to 24 AWG wire into screw terminals that require a 2 mm flat-bladed screwdriver for tightening.
Specifications
- Operating Temperature Range
- -40° to +85°C
(-40° to +85°F)
- Number of Positions
- 8
- Coding
- Standard, A-coded
- Nominal Current
- 2 A
- Nominal Voltage
- 30 V
- Ingress Protection
- IP67
- Connection Type
- Screw
- Conductor
- 18 to 24 AWG
