109

Temperature Probe
109

109

Orderable

Temperature Probe

Pricing

Request a quote Have pricing access? Sign in

Configuration

Select a configuration to add to your quote

Model:
109
Item Number:
45002
Warranty:
1 year

Overview

The 109 is a rugged, accurate probe that measures air, soil, and water temperature for a variety of applications. It consists of a thermistor encapsulated in an epoxy-filled aluminum housing. The housing protects the thermistor, allowing you to bury the 109 in soil or submerge it in water. The 109 measures from -50° to +70°C, and it outputs a 0 to 2.2 V signal when using 2500 mV excitation.

Key Advantages

Rugged, Accurate, Versatile
Can be used in a variety of applications

Technical Description

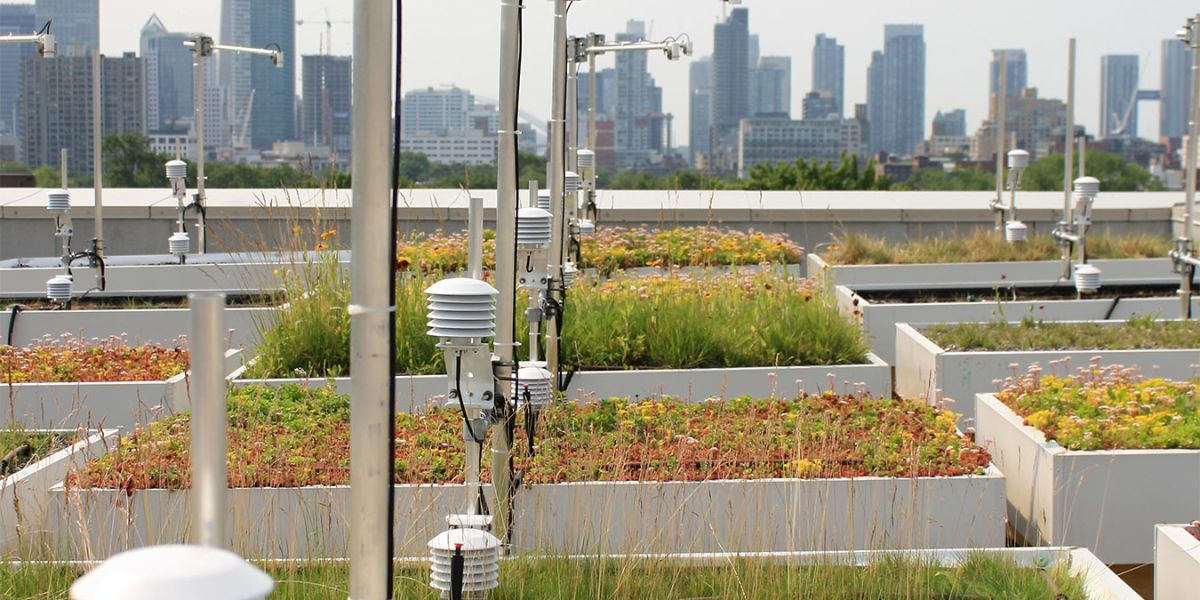

Air Temperature

When exposed to sunlight, the 109 should be housed in a 41303-5A, 41303-5B, or RAD06 6-plate radiation shield. The louvered construction of these radiation shields allows air to pass freely through the shield, thereby keeping the sensor at or near ambient temperature. The shields’ white color reflects solar radiation

The RAD06 uses a double-louvered design that offers improved sensor protection from driving rain, snow, and insect intrusion, and it has lower self-heating in bright sunlight combined with higher temperatures (> 24°C [~75°F]) and low wind speeds (< 2 m s-1 [~4.5 mph]), giving a better measurement.

The 41303-5A and RAD06 attach to a crossarm, mast, or user-supplied pipe with a 2.5 to 5.3 cm (1.0 in to 2.1 in) outer diameter.

The 41303-5B attaches to a CM500-series pole or a user-supplied pole with a 5.1 cm (2.4 in) outer diameter.

Water Temperature

The sensor can be submerged to 15 m (50 ft) or 21 psi. The 109 is not weighted, and therefore the installer should either add a weighting system or secure the sensor to a fixed, submerged object, such as a piling.

Soil Temperature

The 109 is suitable for shallow burial only. Placement of the sensor’s cable inside a rugged conduit may be advisable for long cable runs—especially in locations subject to digging, mowing, traffic, use of power tools, or lightning strikes.

Product Notes

requires solar radiation shield for air temp

Benefits

  • Versatile product—measures air, soil, or water temperature
  • Wide temperature measurement range
  • Compatible with most Campbell Scientific data loggers
  • Easy to install or remove
  • Durable

Specifications

Output
Analog
Operating Temperature Range
-50° to +70°C
Sensor Description
Measurement Specialties™ 10K3A1iA Thermistor
Tolerance
±0.2°C

(over 0° to 70°C range)

Temperature Measurement Range
-50° to +70°C
Steinhart-Hart Equation Error
≤ 0.03°C

(-50° to +70°C)

Interchangeability Error
±0.1°C

(over 0° to 70°C range increasing to ±0.5°C at -50°C)

Time Constant in Air
30 to 60 s

(in a wind speed of 5 m s-1)

Maximum Submergence
15 m

(50 ft)

Maximum Cable Length
305 m

(1000 ft)

Probe Length
10.4 cm

(4.1 in.)

Probe Diameter
0.76 cm

(0.3 in.)

Weight
136 g

(5 oz) with 3.05-m (10-ft) cable

Similar Products

(3)

Compatibility

Data Logger Considerations

The 109 was designed specifically for our CR200(X)-series and CR300-series dataloggers but is suitable for other compatible data loggers.

Programming

All compatible CRBasic data loggers contain the Therm109 instruction for measuring the 109 probe. Programming is more complicated for older Edlog data loggers because they must use generic measurement instructions.

Installation Considerations

Air Temperature

When exposed to sunlight, the 109 should be housed in a 41303-5A, 41303-5B, or RAD06 6-plate radiation shield. The louvered construction of these radiation shields allows air to pass freely through the shield, thereby keeping the sensor at or near ambient temperature. The shields’ white color reflects solar radiation.

The RAD06 uses a double-louvered design that offers improved sensor protection from driving rain, snow, insect intrusion and has lower self-heating in bright sunlight combined with higher temperatures (> 24°C [~75°F]) and low wind speeds (< 2 m/s [~4.5 mph]), giving a better measurement.

The 41303-5A and RAD06 attach to a crossarm, mast, or user-supplied pipe with a 2.5 to 5.3 cm (1.0 in to 2.1 in.) outer diameter. The 41303-5B attaches to a CM500-series pole or a user-supplied pole with a 5.1 cm (2.4 in.) outer diameter.

Soil Temperature

The 109 is suitable for shallow burial only. Placement of the sensor’s cable inside a rugged conduit may be advisable for long cable runs—especially in locations subject to digging, mowing, traffic, use of power tools, or lightning strikes.

Water Temperature

The sensor can be submerged to 15 m (50 ft) or 21 psi. The 109 is not weighted; therefore, the installer should either add a weighting system or secure the sensor to a fixed, submerged object, such as a piling.

Compatible Products

(3)
