CR800

Name: CR800
Brand: Campbell Scientific
SKU: 18621
Availability: Discontinued

Measurement and Control Datalogger

CR800

Retired

Measurement and Control Datalogger

No longer available to order

This product is retained for service, documentation, and compatibility information.

Model:: CR800
Item Number:: 18621
Warranty:: 3 years
Compliance:: needs power supply

Overview

The CR800 is a smaller, research-grade data logger designed for stand-alone operation in harsh, remote environments. It is intended for smaller configurations in which fewer sensors will be measured. Each CR800 reads input from sensors, then transmits the data via a communication peripheral; most sensors and telecommunication devices are compatible. Multiple CR800s can be configured as a network or units can be deployed individually.

Another data logger, the CR850, is similar to the CR800, but it has an integrated keyboard and display screen for on-site control.

Key Advantages

Smaller, Simpler Data Logger
Research-grade power for smaller installations

Technical Description

The CR800 consists of measurement electronics encased in a plastic shell and an integrated wiring panel. This data logger uses an external keyboard/display and power supply. Low power consumption allows the CR800 to operate for extended periods on a battery recharged with a solar panel—eliminating the need for AC power. The CR800 suspends execution when primary power drops below 9.6 V, reducing the possibility of inaccurate measurements.

The on-board operating system includes measurement, processing, and output instructions for programming the data logger. The programming language, CRBasic, uses a BASIC-like syntax. Measurement instructions specific to bridge configurations, voltage outputs, thermocouples, and pulse/frequency signals are included. Processing instructions support algebraic, statistical, and transcendental functions for on-site processing. Output instructions process data over time and control external devices.

Benefits

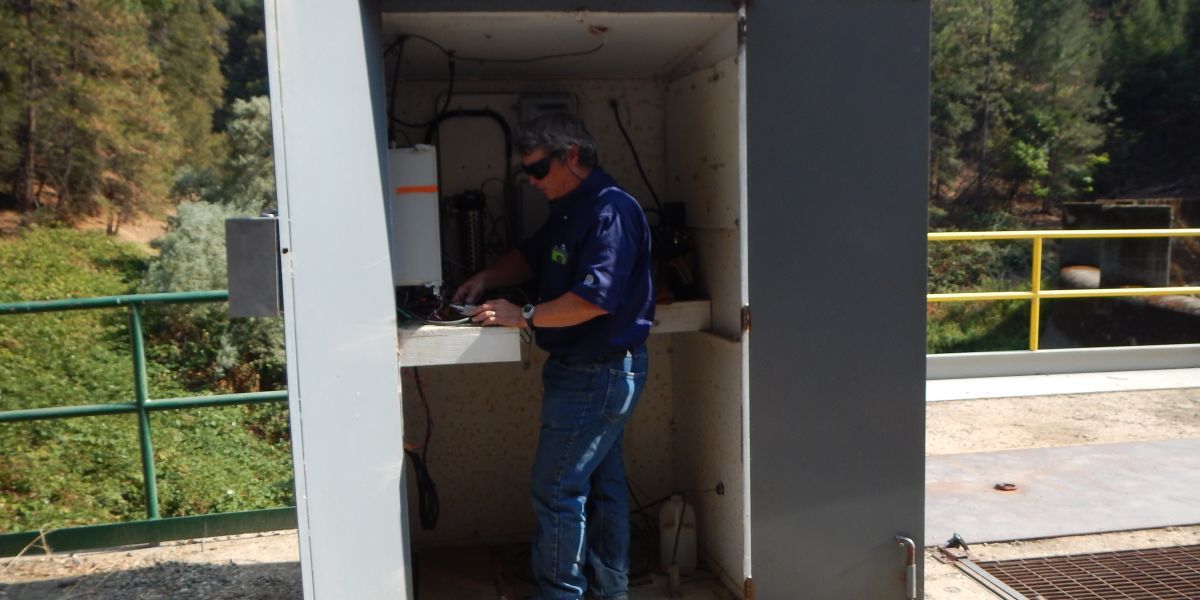

Ideal applications include wind profiling, weather stations, ETo/agriculture, air quality, soil moisture, water level/stage, aquaculture, vehicle testing, Time Domain Reflectometry, SCADA, and water quality
Simpler in design, the CR800 and CR850 are easier to program and wire.
Serial communications with serial sensors and devices supported via I/O port pairs
Contains custom ASIC chip that expands pulse count, control port, and serial communications capabilities
Compatible with channel expansion peripherals allowing you to expand your system
Supports PakBus, Modbus, SDI-12, and DNP3 protocols
Includes both an CS I/O port and an RS-232 port for connecting communication devices
Gas Discharge Tube (GDT) protected inputs
Battery-backed clock that ensures accurate time is maintained while data logger is disconnected from battery power
Program with LoggerNet, PC400, or Short Cut to fit your setup

Specifications

-NOTE-: Note: Additional specifications are listed in the CR800-Series Specifications Sheet.
Operating Temperature Range: -25° to +50°C
(standard)
Non-condensing environment
Maximum Scan Rate: 100 Hz
Analog Inputs: 6 single-ended or 3 differential
(individually configured)
Pulse Counters: 2
Voltage Excitation Terminals: 2
(VX1, VX2)
Communications Ports: CS I/O
RS-232
Switched 12 Volt: 1 terminal
Digital I/O: Certain digital ports can be used to count switch closures.
4 I/Os or 2 RS-232 COM

I/O ports can be paired as transmit and receive for measuring smart serial sensors.
Input Limits: ±5 V
Analog Voltage Accuracy: ±(0.06% of reading + offset)
at 0° to 40°C
ADC: 13-bit
Power Requirements: 9.6 to 16 Vdc
Real-Time Clock Accuracy: ±3 min. per year
(Correction via GPS optional.)
Internet Protocols: FTP, HTTP, XML POP3, SMTP, Telnet, NTCIP, NTP
Communication Protocols: PakBus, Modbus, DNP3, SDI-12, SDM
Idle Current Drain, Average: 0.7 mA
(@ 12 Vdc)
Active Current Drain, Average: 1 mA
(1 Hz sample rate @ 12 Vdc without RS-232 communication)
16 mA
(100 Hz sample rate @ 12 Vdc without RS-232 communication)
28 mA
(100 Hz sample rate @ 12 Vdc with RS-232 communication)
Dimensions: 24.1 x 10.4 x 5.1 cm
(9.5 x 4.1 x 2 in.)
Weight: 0.7 kg
(1.5 lb)
