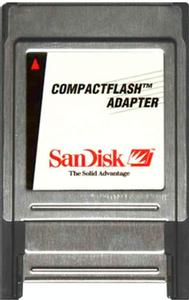

CF1 CompactFlash Adapter for PCMCIA Slots
Portable Memory
Adds CompactFlash capability to devices with a PCMCIA slot
weather applications water applications energy applications gas flux & turbulence applications infrastructure applications soil applications

Overview

The CF1 adapter allows PCMCIA slots to store and read data on a CompactFlash (CF) card. Devices with a PCMCIA slot include PCs, CR5000 dataloggers, CR9000X-series dataloggers, and the CR9080 PAM Module for our CR9000 dataloggers.

Images


Specifications

Manufacturer SanDisk
Operating Temperature Range -40° to +84°C
Dimensions 8.6 x 5.4 x 0.5 cm (3.4 x 2.1 x 0.2 in.)

Compatibility

Besides being compatible with our dataloggers (see Datalogger Considerations below), the CF1 fits into the PCMCIA slot on a computer allowing the computer to read CompactFlash cards.

CompactFlash (CF) Cards

One Type I or Type II CF card fits in the module's slot. Campbell Scientific offers and recommends several CF cards (see Ordering tab). These cards have passed Campbell Scientific's ESD testing and operate properly with our dataloggers.

Only industrial-grade CF card should be used with our products. Although consumer-grade cards cost less than industrial-grade cards, the consumer-grade cards are more susceptible to failure resulting in both the loss of the card and its stored data. Industrial-grade cards also function over wider temperature ranges and have longer life spans than consumer-grade cards.

Datalogger Considerations

Compatible Contemporary Dataloggers

CR200(X) Series CR800/CR850 CR1000 CR3000 CR9000X

Compatible Retired Dataloggers

CR500 CR510 CR10 CR10X 21X CR23X CR9000 CR5000 CR7X
*

Notes:
*The CR9000 requires the CR9080 Module.
