RAWS-H Remote Automated Weather Station, Handar Retrofit
Upgrade to
Campbell Datalogger

Uses existing sensors, adds Campbell Scientific versatility
weather applications water applications energy applications gas flux & turbulence applications infrastructure applications soil applications

Overview

Our RAWS-H was designed to allow you to upgrade an existing Handar weather station to a Campbell Scientific RAWS system.

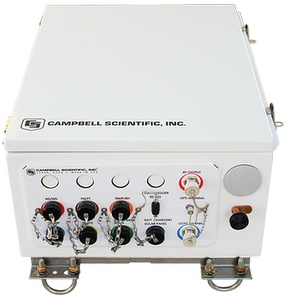

A RAWS-H station consists of a CR1000 datalogger and 12 Vdc battery, housed and protected in an aluminum environmental enclosure that features a connector panel compatible with Handar sensors. Our RAWS-H station is compatible with all of the communication equipment our other RAWS products can use, such as telephones, digital cellular transceivers, and radios.

Customers can replace a Handar Data Collection Platform with the RAWS-H enclosure and continue to use their existing Handar sensors and tower. The RAWS Handar connector panel has connectors for attaching Handar sensors (wind speed and direction, air temperature and relative humidity, precipitation and solar radiation). A wiring panel is provided that allows the attachment of additional sensors for measurements like barometric pressure, fuel moisture or temperature, snow depth, or stream flow.



Read More

Images

Detailed Description

The RAWS-H allows customers who own a Handar Data Collection Platform to upgrade to a Campbell Scientific Remote Automated Weather Station, while using the sensors and tower that they already own. The RAWS-H contains an aluminum 14- by 18-in. environmental enclosure, a CR1000M Module, a 12-V sealed rechargeable battery, a CH100 regulator, a Handar sensor connector panel, a wiring panel, and a CR1000KD Keyboard Display.

Handar sensors that measure wind speed and direction, air temperature and relative humidity, precipitation, and solar radiation can be attached to the Handar sensor connector panel. The RAWS-H provides a wiring panel for attaching additional sensors that measure barometric pressure, fuel moisture or temperature, snow depth, or stream flow.

The RAWS-H can communicate via radio. For direct communications, the CR1000KD Keyboard Display can be used to query the station. Additional communication equipment can be added to the RAWS-H.

Campbell Scientific will develop customized Handar sensor programming for a nominal fee.

Specifications

-NOTE- Specifications for the CR1000 are provided on the CR1000 web page.
Enclosure Material Aluminum
Connector Descriptions Color-coded keyed connectors for attaching sensors
Enclosure Mounts Options are available for mounting to a tripod mast or tower leg. (See the Ordering Information.)
Enclosure Dimensions 35.6 x 45.7 x 22.9 cm (14.0 x 18.0 x 9.0 in.)
Enclosure Weight 12.6 kg (27.75 lb) fully loaded to include a CR1000M, connector panel, and 7 Ahr battery

Compatibility

The RAWS-H is compatible with sensors used with the Handar Data Collection Platform. Campbell Scientific sensors can be connected to the wiring panel.


Frequently Asked Questions

Number of FAQs related to RAWS-H: 1

  1. Campbell Scientific offers several software options, which are outlined below:

    1. PC200W
      • Provides basic tools (clock set, program download, monitor data, retrieve data, etc.)
      • Only works with direct connections between a PC and a datalogger (that is, connecting through a serial COM port, such as a short haul RAD modem or radio); no telecommunication, such as phone modems or Internet
      • Offers simple tools to view and graph data files
      • Does not include the CRBasic Editor or Edlog software
      • Does not do automated scheduled data collection
      • Is available as a free download from our website
    2. PC400
      • Has all of the features of the PC200W
      • Compatible with additional telecommunications options, such as IP ports and phone modems; does not work with combined communications options such as phone-to-radio
      • Offers additional features, including the CRBasic and Edlog program editors
      • Does not do automated scheduled data collection
      • Is not offered as a trial version
    3. VisualWeather
      • Has been designed for use with weather stations
      • Allows connection to the station, viewing of current conditions, and data collection
      • Does not include the CRBasic Editor or Edlog program editors
      • Generates reports and graphs
      • Does automated scheduled data collection
      • Can be set up to create web content and transfer it to a web server via FTP
      • Is available as a 30 day downloadable trial version
    4. LoggerNet
      • Is not as simple to use as the other software options, but contains the tools needed to communicate with, program, manage, and collect data from a single datalogger or a network of dataloggers
      • Includes the CRBasic and Edlog program editors
      • Can communicate with any configuration of hardware and telemetry offered by Campbell Scientific
      • Includes tools to view, graph, and manipulate data files
      • Does automated scheduled data collection
      • Has a task manager to manipulate data files following collection
      • Is available as a 30 day downloadable trial version
