3/4 x 3/4 in. Nu-Rail Crossover Fitting
1017

1017

Orderable

3/4 x 3/4 in. Nu-Rail Crossover Fitting

Pricing

Request a quote Have pricing access? Sign in

Model:
1017
Item Number:
1017
Warranty:
1 year

Overview

The 1017 Nu-Rail® Crossover Fitting attaches a 0.75 in. IPS pipe to another 0.75 in. IPS pipe. The most common use of the 1017 is on our 019ALU Crossarm. A listing of sensors commonly used with the 019ALU appears in the Compatibility information.

Technical Description

The 1017 NU-RAIL® Crossover Fitting connects a vertical 3/4" IPS pipe to a horizontal 3/4" IPS pipe. It typically attaches a sensor with a 3/4” IPS pipe mount to a 019ALU crossarm.

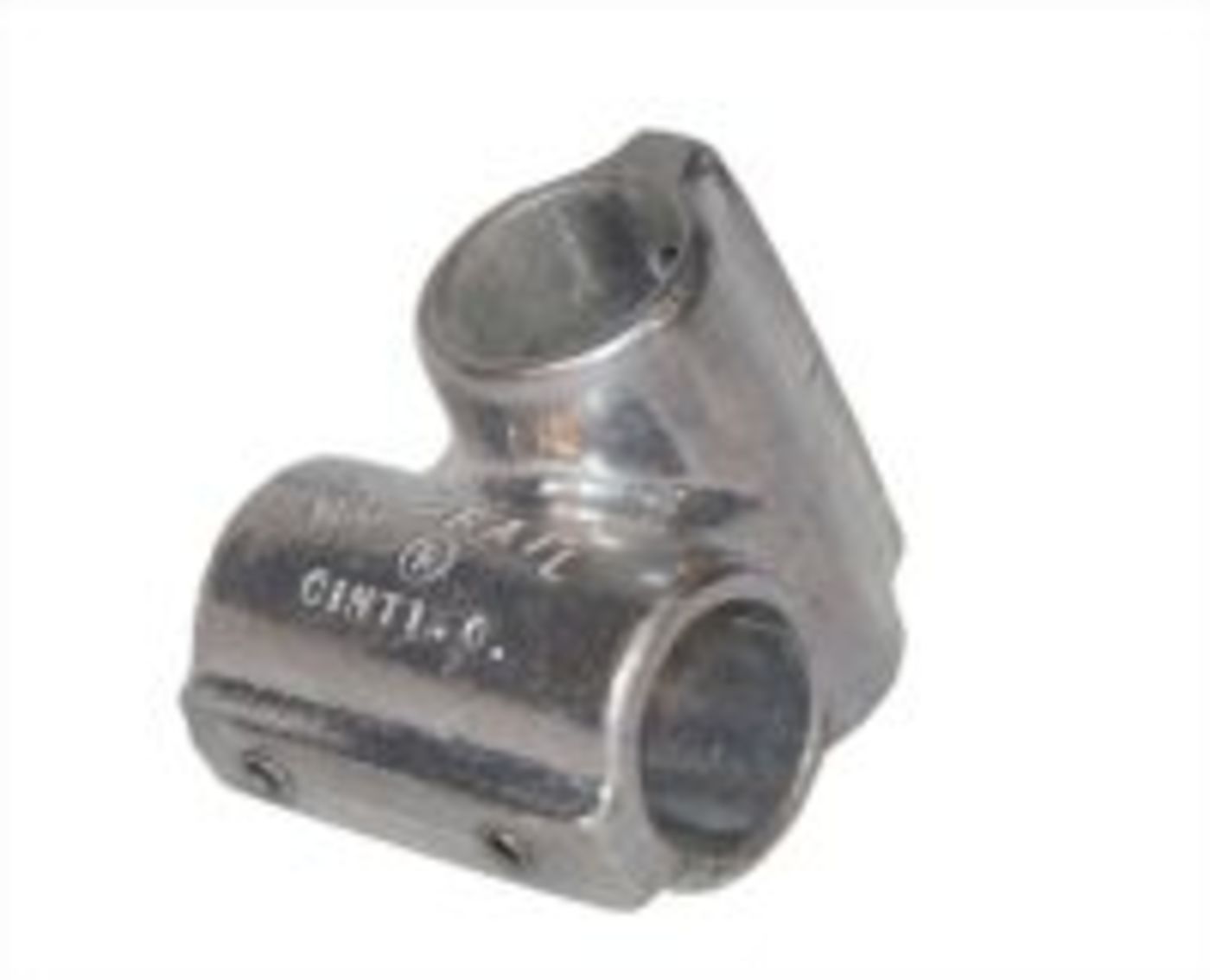

The 1017 has two ovoid segments that are oriented at a 90° angle. Each segment accepts one piece of pipe allowing a vertical pipe to be secured to a horizontal pipe. The horizontal and vertical pipes are secured to the 1017 fitting using screws, which are tightened with an Allen wrench.

Product Notes

attaches one sensor to crossarm

Specifications

Dimensions
6.35 x 8,89 x 7.62 cm

(2.5 x 3.5 x 3.0 in.)

Weight
136.1 g

(0.3 lb)

Similar Products

(7)

Compatibility

Sensors

The 1017 compatible with sensors that have a 0.75 in. IPS pipe mount (1.05 in. OD).

Pipe

The 1017 is compatible with user-supplied pipe that has a 0.75 in. IPS (1.05 in. OD).
