AP200

Name: AP200
Brand: Campbell Scientific
SKU: 45102
Availability: InStock

CO2/H2O Atmospheric Profile System

AP200

OrderableConfigurableGSA

CO2/H2O Atmospheric Profile System

Pricing

Configuration

w/LI-850-3 Gas Analyzer w/Keyboard/Display CM1xx Leg Mounting w/8 Intake Assemblies-GA
w/LI-850-3 Gas Analyzer w/Keyboard/Display Tripod Mast Mounting w/8 Intake Assemblies-GA
w/LI-850-3 Gas Analyzer w/Keyboard/Display No Enclosure Mounting w/8 Intake Assemblies-GA
w/LI-850-3 Gas Analyzer w/Keyboard/Display Tower Mounting w/8 Intake Assemblies-GA
w/LI-850-3 Gas Analyzer No Keyboard/Display CM1xx Leg Mounting w/8 Intake Assemblies-GA
w/LI-850-3 Gas Analyzer No Keyboard/Display Tripod Mast Mounting w/8 Intake Assemblies-GA
w/LI-850-3 Gas Analyzer No Keyboard/Display No Enclosure Mounting w/8 Intake Assemblies-GA
w/LI-850-3 Gas Analyzer No Keyboard/Display 4-10 Inch Pole Mounting w/8 Intake Assemblies-GA
w/LI-850-3 Gas Analyzer No Keyboard/Display Tower Mounting w/8 Intake Assemblies-GA
No IRGA w/Keyboard/Display CM1xx Leg Mounting w/8 Intake Assemblies-NA

Qty

Select a configuration to add to your quote

Model:: AP200
Item Number:: 45102
Warranty:: 1 year

Overview

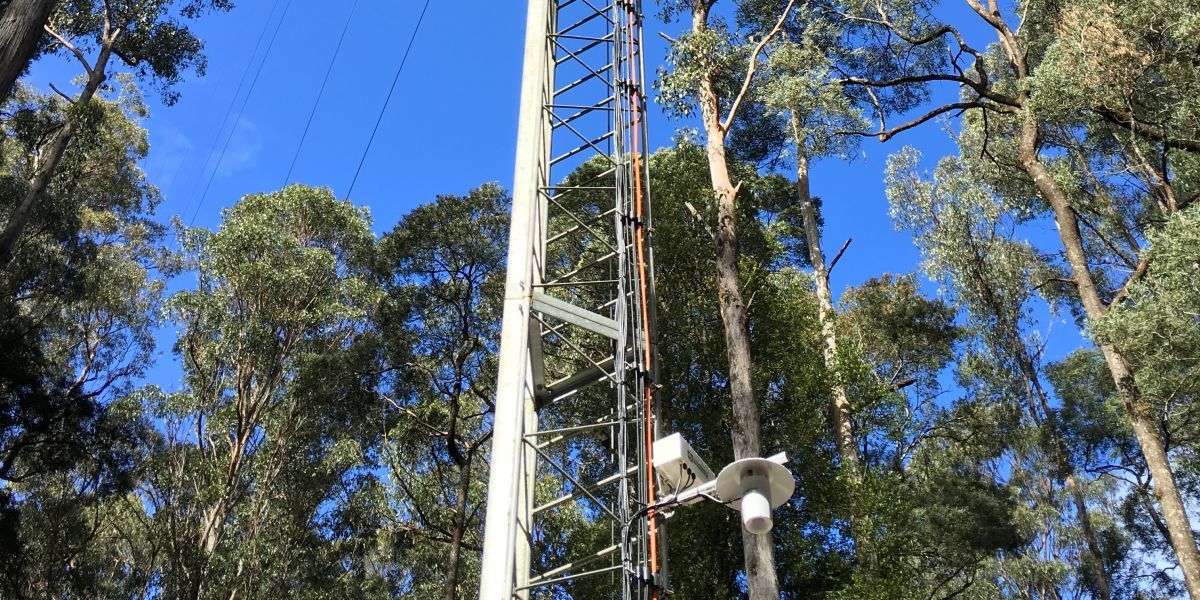

The AP200 is a complete, integrated CO₂ and H₂O atmospheric profile system. It measures carbon dioxide (CO₂) and water vapor (H₂O) concentration from up to eight intakes, which are normally spaced along the height of a tower to give a vertical profile. The AP200 is often used in conjunction with an eddy-covariance system to measure the storage term and provide you with a more complete measure of the surface gas exchange.

Key Advantages

Complete, Integrated System
Preprogrammed and low power

Technical Description

Measurements

Primary:

CO₂ concentration at each intake
H₂O concentration at each intake
System diagnostic word

Secondary:

Sample flow rate
Sample cell pressure
Sample cell temperature
Other control variables

Note: Contact the Micromet Group at Campbell Scientific for questions or updates regarding the data logger program.

Benefits

Fully integrated system
Requires only 13 W (average at 25°C and 12 Vdc)
Contains a Campbell Scientific CR1000X Measurement and Control Datalogger
Automatically performs CO<sub>2</sub> zero and span
Automated temperature and pressure control
Data logger program included

Specifications

System Enclosure

Operating Temperature: -30° to +45°C
Power Requirements: 10 to 16 Vdc
(voltage)
Power Requirements: 13 W
(average power at 25°C)
Average power varies from 12.5 W above +35°C to 22.5 W at -30°C.
Power Requirements: 3.75 A
(45 W) maximum power (cold startup)
Dimensions: 52.1 x 44.5 x 29.7 cm
(20.5 x 17.5 x 11.7 in.)
Weight: 15.9 kg
(35 lb) for AP200 base model
Weight: 1 kg
(2.3 lb) for LI-850
Weight: 272 g
(10 oz) for CR1000KD
Weight: 154 g
(5.4 oz) for CFM100/NL116

Pump Module

Pump Type: Dual-head diaphragm pump with a brushless dc motor
Mounting: Mounted in an insulated, temperature-controlled box inside system enclosure
Control: Pumping speed is automatically controlled to maintain the pump inlet pressure at the set point
Maximum Pumping Speed: 9.0 liters per minute
(LPM)
Pressure Sensor Range: 15.0 to 115.0 kPa
Heater: 8.0 W
(turns on/off at 2°C)
Warm-up Time: ~50 min
(from -30° to +2°C)
Fan: 0.7 W
(turns on at 50°C and off at 45°C)

Valve Manifold

Mounting: Mounted inside system enclosure
Inlets: Eight air sample inlets plus one inlet for zero, one inlet for CO₂ span, and one inlet for H₂O span
Connections: 0.25-in Swagelok
Mass Flow Sensor: 0 to 1.0 standard liters per minute
(SLPM)
Heater: 8.0 W
(turns on/off at 5°C)
Warm-up Time: ~20 min
(from -30° to +4°C)
Fan: 0.7 W
(turns on at 45°C and off at 43°C)

Intake Assembly

Filter: 1.0-in diameter, sintered stainless-steel disk filter, 10-micron pore size
Orifice Heater: 2 kohm
(0.07 W at 12 Vdc)
Mixing Volume: 750 mL
Sample Connection: 0.25 in. Swagelok
Number of Connections for Heater Cable Entry Seals: 3
(1 in, 2 out)
Cable Diameter for Heater Cable Entry Seals: 2.8 to 6.6 mm
(0.11 to 0.26 in.)
Wire Diameter for Heater Cable Screw Terminals: 26 to 12 AWG
Wire Stripping Length for Heater Cable Screw Terminals: 5.0 mm
(0.2 in.)
Screw Tightening Torque for Heater Cable Screw Terminals: 0.4 N•m
Orifice Inside Diameter: 0.178 mm
(0.007 in.)
Dimensions: 31 x 12.5 x 19 cm
(12 x 5 x 7.5 in.)
Weight: 1.4 kg
(3.1 lb)
