RETIRED ›
This product is no longer available and has been replaced by: 28960. Some accessories, replacement parts, or services may still be available.
17565 Stack Mounting Kit for CR1000 or CR800

Overview

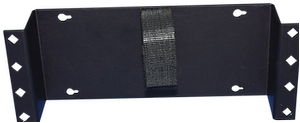

The 17565 stack bracket is used in CR800 or CR1000 applications where it is desirable to have the datalogger attached to a bracket and up off the enclosure backplate rather than mounted directly to the enclosure backplate. The bracket mounts to the backplate of our enclosures using screws and grommets in the diamond-shaped holes. The base of the datalogger mounts in the keyhole slots and a small peripheral can be secured with the Velcro strap underneath the datalogger.

Read More

Images

Detailed Description

The 17565 Stack Bracket is used in CR800, CR850, or CR1000 applications, where it is desirable to have the datalogger attached to a bracket and up off the enclosure backplate rather than mounted directly to the enclosure backplate. The bracket mounts to the backplate of our enclosures using screws and grommets in the diamond-shaped holes. The base of the datalogger mounts in the keyhole slots and a small peripheral can be secured with the Velcro strap underneath the datalogger.

The 17565 is used in the following cases:

  • If the CR800, CR850, or CR1000 will be mounted horizontally in an ENC10/12 enclosure.
  • If you desire to place a small peripheral under the mounting bracket and secure it with Velcro®, thus conserving space
  • If you desire to have the wiring panel terminals at about the same height from the enclosure backplate as the terminals in one of our power supplies. However, this may make sensor wiring more difficult if you have sensors or peripherals with "stiff" cable jackets.

Specifications

-NOTE- The 17565 Stack Mounting Kit has components that have their own specifications.

To review these specifications, refer to the appropriate products below:

Compatibility

Note: The following shows notable compatibility information. It is not a comprehensive list of all compatible or incompatible products.

Data Loggers

Product Compatible Note
CR1000
CR200X (retired)
CR206X (retired)
CR211X (retired)
CR216X (retired)
CR295X (retired)
CR3000
CR5000 (retired)
CR800
CR850
CR9000X
