RETIRED ›
This product is no longer available. Some accessories, replacement parts, or services may still be available.
DMM600 Duff Moisture Meter
Portable, Stand-Alone
Measures duff water content in the field
weather applications water applications energy applications gas flux & turbulence applications infrastructure applications soil applications

Overview

The DMM600 is a portable, battery-powered duff meter that accurately measures moisture content in duff material, which is critical to those conducting scheduled burns as well as those attempting to battle out-of-control fires. The DMM600 is a stand-alone device. (A datalogger is not required.) A sieve, carrying case, and software are included.

Read More

Benefits and Features

  • Measures duff water content in the field
  • Compact and easy to carry
  • Easy to use—simply place duff in chamber, turn crank, and receive a real-time reading

Images

Detailed Description

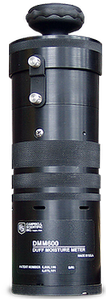

The DMM600 uses measurement methods sensitive to the dielectric properties of the material being measured. It consists of a cylinder that houses the electronics, a sample chamber with a compression knob, and an LCD readout.

To measure duff water content, place the sample in the sample chamber and turn the compression knob until an audible indicator signals that the sample is properly compressed and the measurement is complete. Total time for measurement is about 30 seconds. Readings are displayed in real-time only; measurements are not stored.

The DMM600 was developed in cooperation with the USDA Forest Service, Rocky Mountain Research Station, and Missoula Technology and Development Center.

Specifications

Battery 9 V alkaline
Measurements per Battery More than 2,000
Accuracy ±5% full scale range
Resolution 1% volumetric water content
Sieve Description #4 mesh = 0.475 cm (0.187 in.)
Diameter 8.9 cm (3.5 in.)
Length 25.4 cm (10 in.)
Weight 1.7 kg (3.7 lb)

Typical Current Drain

Between Measurements ~3 mA (Goes into a low-power sleep mode after five minutes of inactivity.)
Sleep Mode 140 μA
During Measurement 85 mA for ~1 ms

Compatibility

Datalogger Considerations

The DMM600 is a stand-alone product so datalogger compatibility is not an issue.

Software

PCDMM Software is supplied with the DMM600. It interfaces with the DMM600 using serial communications, and is used to download and upload calibration coefficients, monitor the battery voltage, and reset the DMM600.

Calibration Coefficients

A standard calibration converts the output of the measurement circuit to volumetric water content. User-derived calibrations can be downloaded using PCDMM software. These calibrations are useful when using the DMM600 with atypical materials. Guidance is provided in the operating manual for deriving calibrations. This feature can also be used with known duff bulk density to convert result to gravimetric water content. Measurements derived from the standard and user-defined calibrations are alternately displayed on the LCD if a user-defined calibration has been downloaded.

Sieve and Carrying Case

The DMM600 comes with a sieve and case. The sieve fits in the opening of the sample chamber. Duff is moved through the wire mesh of the sieve to break up large fragments and improve measurement accuracy in duff materials with a large range of fragment sizes.

The case eases transport and provides storage for the sieve and small items such as a spare battery, screwdriver, and pencil.
