About Digital Input Peripherals

Digital input peripherals are often used to extend data communications networks or to perform media conversions.

	Function	Number of Channels	Operating Temperature	Operating Voltage

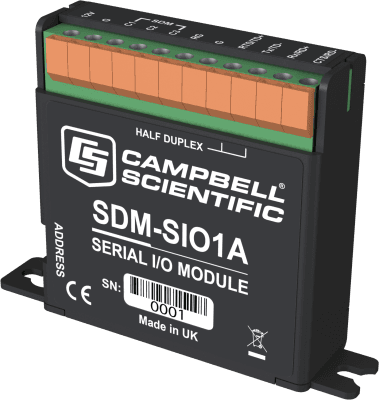

SDM-SIO1A 1-Channel Serial I/O Module	Expands the number of serial devices that can communicate with a data logger.	1	-40°C to +70°C (standard)	—

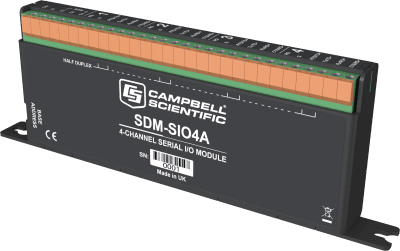

SDM-SIO4A 4-Channel Serial I/O Module	Expands the number of serial devices that can communicate with a data logger.	4	-40° to +70°C (standard)	—
SDM-IO16 16-Channel Input/Output Module	Expands the digital input and/or output capability of a data logger.	16	-25° to +50°C	12 Vdc (nominal 9 to 18 V)
MD485 RS-485 Multidrop Interface	Permits a PC to address and communicate with one or more data loggers over a distance of up to 1,200 m.	—	-25° to +50°C (standard) -55° to 85°C (extended)	—

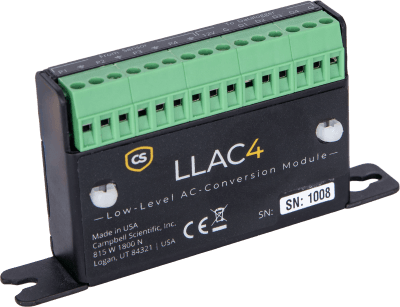

LLAC4 4-Channel Low-Level AC-Conversion Module	Increases the number of low-level ac signals that a data logger can monitor.	4	—	—
SDM-SW8A 8-Channel Switch Closure Input Module	Increases the number of switch closures or voltage pulses a data logger can measure.	8	-25° to +55°C	9.6 to 16 V
SDM-CAN Datalogger-to-CANbus Interface Module	Allows a data logger to sample data directly from a CANbus communication network. Uses latest CAN controller.	1	Tested from -40° to +80°C.	7 to 26 Vdc
