This product is no longer available and has been replaced by: CR9000X,CR9000XC. Some accessories, replacement parts, or services may still be available.

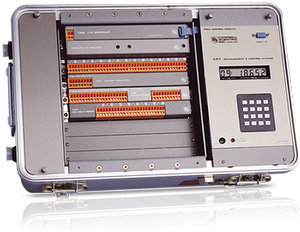

CR700X Control Module for CR7 Measurement and Control System

Overview

The CR7 is a precision instrument that is primarily used in multi-parameter research and industrial applications. Each CR7 system is individually configured to meet the specific measurement needs of the customer.

This control module is the base of the measurement system, then the input/output module, datalogger enclosure, and I/O cards are added. As measurement needs change from study to study, the CR7 can be adapted by modifying the I/O card configuration.

Read More

Benefits and Features

  • Collects and stores data and controls peripherals as the brain of your system
  • Suited for applications that require high resolution (e.g., thermocouples) or a large number of input channels
  • Up to seven I/O Cards (CR7 720) or fourteen I/O Cards (CR7 720XL) can be inserted to configure a system for specific applications
  • Stores 280,000 data points
  • Mixed array data format
  • Software support offered in LoggerNet (full-featured) or Short Cut (programming)

Images

Detailed Description

The CR700X control module is the main component in a CR7—a large modular datalogger. It is ordered with internal PROMs (firmware) and temperature testing. The CR700X contains the system's CPU, ROM, RAM, a serial interface for communication with data storage/retrieval peripherals and connection of up to four I/O Modules (typically one alongside the CR700X and three at some distance to the CR700X), and a keyboard/display. Refer to the Configuration tab for software compatibility.

The CR700X also accommodates:

  • PROMs (detailed in the Ordering information)
  • 3259 Battery (included; formerly known as the LA700)
  • CR709 Memory Card (ordered separately)

A complete CR7 consists of:

  • CR700X
  • I/O Modules (either the CR720 or CR720XL)
  • A mix of I/O Cards

Modular design consists of:

  • Control module (CR7 700X)
  • Input/output module (CR7 720 or CR7 720XL)
  • Field or laboratory enclosure (ENC 7F, ENC 7XL, or ENC 7L)

Specifications

-NOTE- Note: Additional specifications are listed in the CR7 Specifications Sheet.
Scan Rate 80 Hz
Processor Hitachi 6303
Memory 24K ROM; 40K RAM. 709 Card provides an additional 512K RAM.
Communication Ports 1 CS I/O
Baud Rate 300, 1200, 9600, or 76,800 (user selected)
I/O Module Interface Optically isolated current loops allow connection of up to 4 I/O Modules. I/O Modules can be separated from the Control Module by up to 1,000 feet.
Clock Accuracy ±1 minute per month

Compatibility

Compatible Software

  • Short Cut
  • PC200W
  • PC400 (version 1.0 or higher)
  • LoggerNet (version 2.0 or higher)
  • PConnect (version 1.0 or higher)
  • PConnectCE (version 1.0 or higher)
  • VisualWeather (version 2.0 or higher)

Frequently Asked Questions

Number of FAQs related to CR700X: 1

  1. A practical maximum is to connect one multiplexer per every two control terminals on the datalogger. Control terminals can be shared between multiplexers to increase the number of connected multiplexers. Sharing terminals, however, requires more complex wiring and programming. Users who would like to connect more than one multiplexer per every two control terminals are advised to contact a sales or support engineer at Campbell Scientific for assistance.
