CM245 RSR Adjustable-Angle Mounting Stand

Overview

This product can now be purchased as the 27065 Adjustable Angle Mounting Stand for Pyranometers, Reference Cells, and the RSR2.

For mounting a pyranometer, the CM245 has generally been replaced by the CM255 and the CM255LS. The 27065 Mounting Stand is commonly used to attached the IMT reference cell or the RSR rotating shadowband band radiometer from Irradiance Inc. to a horizontal crossarm, vertical mast, or the torque tube of a single-axis tracker. See the Image Gallery for images of the 27065 in use.

This mounting stand includes slots that can be adjusted to any angle from horizontal to vertical. It is typically used to attach a CMP3, CMP6, CMP11, CMP21, or LP02 pyranometer to a horizontal crossarm or vertical mast (1 to 2.1 in. outer diameter). This stand can also be used with various sensors from other manufacturers. (See the Compatibility information.)

Read More

Images

Detailed Description

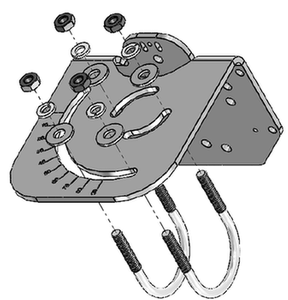

The CM245 mounting stand includes slots that can be adjusted to any angle from horizontal to vertical. It is typically used to attach a CMP3, CMP6, CMP11, CMP21, or LP02 pyranometer to a horizontal crossarm or vertical mast (1 to 2.1 in. outer diameter). This stand can also be used with various sensors from other manufacturers. (See the Compatibility information.)

Please note that a CMP6, CMP11, or CMP11 pyranometer used with the CVF4 heater/ventilator is not compatible with this mounting stand. When the CVF4 is used, another mounting bracket, the 27084, is required instead of the CM245.

Specifications

Material Anodized aluminum
Aluminum Thickness 0.48 cm (0.1875 in.)
Platform Area 14.61 x 13.34 cm (5.75 x 5.25 in.)
Height 15.24 in. (6 in.)

Compatibility

Sensors

Campbell Scientific Pyranometers

CS300 LI200X LP02 CMP3 CMP6 CMP11 CMP21
* * *

Note:
*A CMP6, CMP11, or CMP11 pyranometer used with the CVF4 ventilator/heater is not compatible with the CM245 Mounting Stand. When the CVF4 is used, another mounting bracket, the 27084, is required instead of the CM245.

Sensors from Other Manufacturers

  • Hukseflux SR03
  • Hukseflux SR11
  • Hukseflux SR12
  • Eppley PSP Thermopile Pyranometer
  • IMT Solar Silicon Irradiance Sensor
  • IMT Solar Solar Reference Cell
