Overview

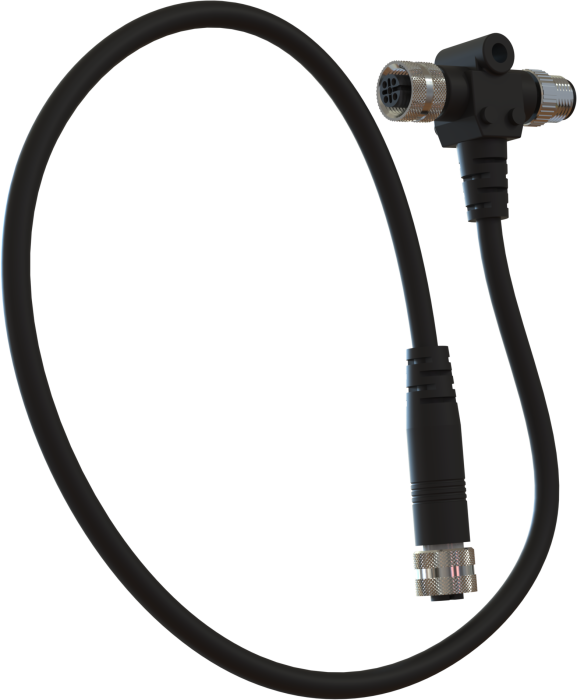

The 44370 tee coupler is used to wire split standard five-pin A-coded connections. It is commonly used to daisy-chain multiple digital Modbus sensors, such as the CS241DM and CS241DM G2 back-of-module temperature sensors, enabling multiple sensor connections on a single trunk-line cable.
Read MoreImages
Detailed Description
Pinout Description for Tee Coupler Use
in the SunSentry System
| Trunk Line T Pins | Common Function | Sensor Pins |
|---|---|---|
| 1 | 24 V | 1 |
| 2 | RS-485 B/B+ | 2 |
| 3 | Signal Ground | 3 |
| 4 | Ground | 4 |
| 5 | RS-485 A/A- | 5 |
Compatibility
Note: The following shows notable compatibility information. It is not a comprehensive list of all compatible or incompatible products.
Sensors
| Product | Compatible | Note |
|---|---|---|
| CS241DM (retired) | ||
| CS241DM G2 |
Additional Compatibility Information
Specifications
| Tee Coupler Connector Type | Plug to socket |
| Cable Connector Type | Socket |
| Cable Length | 0.5 m (1.64 ft) |
| Dimension | 7.62 x 2.03 x 50.8 cm (3.0 x 0.8 x 20.0 in.) |
| Weight | 90.72 g (0.2 lb) |
Listed Under
Other Accessory for the following products:
Common Accessory for the following products:
