257-L Soil Matric Potential Block
Reliable Soil Water Measurements
No maintenance required
weather applications water applications energy applications gas flux & turbulence applications infrastructure applications soil applications

Overview

The 257, manfuactured by Watermark, is a solid-state, electrical-resistance sensing device with a granular matrix that estimates soil water potential from 0 to -200 kPa (typically wetter or irrigated soils). It connects directly to your datalogger.

Read More

Benefits and Features

  • Survives freeze-thaw cycles
  • Compatible with most Campbell Scientific dataloggers
  • Contains blocking capacitors in its cable that minimize galvanic degradation and measurement errors due to ground loops
  • Rugged, long-lasting sensor
  • Buffers salts in soil

The "-L" on a product model indicates that the cable length is specified at the time of order.

Images

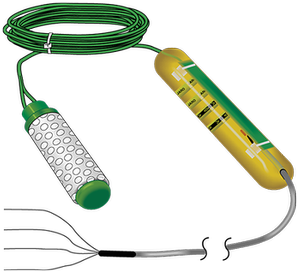

The 257 includes blocking capacitors in its
cable to mitigate ground loops and galvanic degradation.
The 257 includes blocking capacitors in its cable to mitigate ground loops and galvanic degradation.

Detailed Description

When the amount of water in the soil surrounding the sensor changes, a difference in water potential between the soil and the sensor material is established. This gradient in potential causes a water flux between the two materials. For example, an irrigation or precipitation event results in movement of soil water into the 257 until equilibrium in water potential between the sensor and the soil occurs. An increase in the amount of water in the sensor reduces the electrical resistance between the sensor electrodes.

The datalogger measures the resistance between electrodes, and then converts the resistance measurement to soil water potential by using calibration values supplied with the sensor.

The 257 consists of two concentric electrodes embedded in a reference matrix material. The matrix material is surrounded by a synthetic membrane for protection against deterioration. An internal gypsum tablet buffers against the salinity levels found in irrigated soils. The cable jacket is made of Santoprene rubber, which is resistant to temperature extremes, water, and UV degradation.

The 257's construction can allow the sensor (in some circumstances) to be left in the soil all year, eliminating the need to remove the sensor during fallow periods.

Specifications

Measurement Range 0 to -200 kPa
Diameter 1.91 cm (0.75 in.)
Length 8.26 cm (3.25 in.)
Weight 360 g (0.8 lb)

Compatibility

Note: The following shows notable compatibility information. It is not a comprehensive list of all compatible or incompatible products.

Data Loggers

Product Compatible Note
21X (retired)
CR10 (retired)
CR1000
CR1000X
CR10X (retired)
CR200X (retired)
CR206X (retired)
CR211X (retired)
CR216X (retired)
CR23X (retired)
CR295X (retired)
CR300
CR3000
CR310
CR500 (retired)
CR5000 (retired)
CR510 (retired)
CR6
CR800
CR850
CR9000 (retired)
CR9000X
