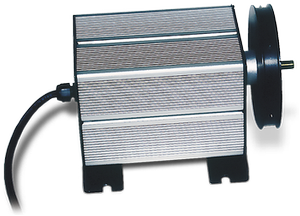

CS410-L Shaft Encoder
Rugged, Low-Power
Ideal for long-term deployment in harsh conditions
weather applications water applications energy applications gas flux & turbulence applications infrastructure applications soil applications

Overview

The CS410 is a shaft encoder that measures water level for Campbell Scientific data acquisition systems. It connects directly to our dataloggers; a QD1 interface is not required. All of our dataloggers are compatible.

Read More

Benefits and Features

  • Measures water level in stilling wells
  • Rugged enough for harsh environments
  • Low power consumption
  • Connects directly with our dataloggers (no interface required)
  • Compatible with all Campbell Scientific dataloggers (including the CR200(X) series)

The "-L" on a product model indicates that the cable length is specified at the time of order.

Images

Detailed Description

The CS410 consists of a pulley attached to a float and counter-weight that rotates as water level rises or falls. When the pulley rotates, the CS410 sends two pulse strings to the datalogger. The datalogger records the pulse strings, and calculates water level by adding or subtracting the clockwise or counter clockwise movement to a running total. The encoder's resolution is 100 counts per shaft revolution, so a 1-foot circumference pulley has a resolution of 0.01 feet.

A complete measurement system requires a float, pulley, float tape or beaded float line, end hooks, appropriate-sized counter weight, and datalogger. See the Ordering Information on the web page for products that are available from Campbell Scientific.

Specifications

Temperature Range -25° to +50°C (not responsive if water surface freezes)
Thread Count 24 per in.
Resolution 100 counts/revolution
Starting Torque < 0.125 inch-ounces
Power Supply 4 to 5.6 V
Current Drain 0.5 mA
Minimum Time between Input Transitions 0.75 ms
Output Pulse Width 0.25 ms (at 25°C)
Signal Magnitude 0 (low), supply voltage (high)
Shaft Outer Diameter 0.8 cm (0.3125 in.)
Dimensions 18 x 12.4 x 10 cm (7 x 4.875 x 4 in.)
Weight 0.82 kg (1.8 lb)

Compatibility

Datalogger Considerations

The CS410 is measured by two pulse count channels on the datalogger; one channel counts "up" pulses, the other counts "down" pulses, and then water level is determined in the datalogger. Although all of our dataloggers are capable of measuring the CS410, the larger dataloggers generally exceed application requirements because CS410 installations are typically remote and usually aren't measured with many other sensors.

Compatible Contemporary Dataloggers

CR200(X) Series CR800/CR850 CR1000 CR3000 CR5000 CR9000X

Compatible Retired Dataloggers

CR500 CR510 CR10 CR10X 21X CR23X CR9000 CR7X
