CS511
CS511
OrderableDissolved Oxygen Sensor
Pricing
Request a quote Have pricing access? Sign in
Configuration
- w/3m per SensorCS511-3mPart Number: 45050-3m
- w/5m per SensorCS511-5mPart Number: 45050-5m
- w/10m per SensorCS511-10mPart Number: 45050-10m
- w/15m per SensorCS511-15mPart Number: 45050-15m
- w/20m per SensorCS511-20mPart Number: 45050-20m
- w/30m per SensorCS511-30mPart Number: 45050-30m
Select a configuration to add to your quote
- Model:
- CS511
- Item Number:
- 45050
- Warranty:
- 1 year
Overview
The CS511, manufactured by Sensorex, is a submersible, rugged, low-maintenance sensor that senses dissolved oxygen in a medium (typically water). It consists of a self-polarizing galvanic cell that generates a millivolt signal proportional to the amount of oxygen present in the measured medium (typically water).
Key Advantages
Submersible, rugged, low-maintenance DO sensor
Technical Description
Oxygen diffuses through the CS511’s membrane onto a cathode that produces a chemical reaction. An electrical current is produced by this reaction, which is converted from microamps to millivolts by an in-line resistor. An in-line thermistor provides automatic temperature compensation.
Because the CS511 is shipped dry, DO electrolyte needs to be added before using the sensor. DO electrolyte as well as spare membranes are included in the sensor’s shipping kit.
Currently, the CS511 is Sensorex’s Model DO6400/T. Prior to June 2008, the CS511 was Sensorex’s Model DO6200/T. Programming, wiring, and most specifications are the same for these two sensors. However, they use different accessories and look different. Replacement parts remain available for the older DO6200/T.
For an image of the older DO6200/T, see the retired version of the CS511 manual. Contact Campbell Scientific for more information.
Product Notes
Benefits
- In-line thermistor provides automatic temperature compensation
- Compatible with most Campbell Scientific dataloggers
Specifications
- Operating Temperature Range
- 0° to 50°C
- Measurement Range
- 0.5 to 50 ppm
(for O2)
- Accuracy
- ±2%
- Output
- 33 mV ± 9 mV (100% saturation); < 2 mV (0% saturation)
- Response Time
- 5 min from 100% to 0% oxygen
- Minimum Water Velocity
- 5 cm s-1 (2 in. s-1) across membrane
- Minimum Submersion Depth
- 6.35 cm
(2.5 in.)
- Pressure
- 0 to 100 psig
- Temperature Compensation
- Automatic from 4° to 40°C
- Probe Electrolyte
- NaCl + glycerol
(prevents freezing)
- Diameter
- 5.72 cm
(2.25 in.)
- Height
- 17.78 cm
(7 in.) from bottom of sensor to end of cable strain relief
- Shipping Weight
- 0.8 kg
(1.75 lb) including sensor and shipping kit
Common Accessories
(4)22261
Small Maintenance Kit for CS511
The 22261 maintenance kit contains the items needed for five membrane changes. Specifically, the kit includes five Teflon membranes, five membrane O-rings, five tensioning washers, and a 250 mL bottle of electrolyte.
Orderable22262
Large Maintenance Kit for CS511
The 22262 maintenance kit contains the items needed for 25 membrane changes. Specifically, the kit includes 25 Teflon membranes, 25 membrane O-rings, 25 tensioning washers, and three bottles (500 mL each) of electrolyte.
Orderable22263
CS511 Spare Parts Kit
The 22263 spare parts kit contains two membrane locks, two tensioning washers, two body O-rings, and one membrane replacement tool.
Orderable39112
DIN Rail Terminal Kit with 1 Terminal and 3 Wires
The 39112 provides the needed DIN rail terminals, separator, and wires to connect any product to a data logger or other peripheral that requires three wires for connection. This kit provides the following wires: black, white, and clear. The color-coding of these wires matches the wire coloring of the product for ease in connection, maintenance, and troubleshooting.
Orderable
Ships With
(4)- 250-mL bottle of electrolyte
- Teflon membranesQty 2
- Membrane O-ringsQty 2
- Membrane replacement tool
Compatibility

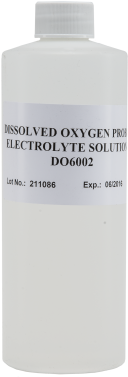

DO Electrolyte
Because the CS511 is shipped dry, DO electrolyte needs to be added before using the sensor. DO electrolyte as well as spare membranes are included in the sensor’s shipping kit.
