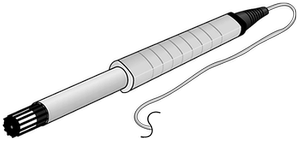

HMP45C-QD Temperature and Relative Humidity Probe for RAWS

Overview

The HMP45C-QD is a rugged, accurate temperature and relative humidity probe. The sensor measures relative humidity over the 0 to 100% RH range and temperature over the -40° to +60°C range.

Read More

Benefits and Features

  • Well-suited for long-term, unattended applications
  • Accurate and rugged
  • Configured for use with the RAWS-F Fire Weather Quick Deployment Station

The "-QD" version of this product has a cable that terminates in a military style connector (instead of pigtails) and is the ideal length for attachment to a RAWS-F Fire Weather Quick Deployment Station.

Images

Detailed Description

For this version of the HMP45C Temperature and RH Probe, the cable has a military style connector instead of pigtails. The connector attaches to the RAWS-F Fire Weather Quick Deployment Station. The HMP45C-QD uses a HUMICAP capacitive polymer H chip to measure relative humidity over the 0 to 100% RH range. A PRT measures temperature over the -40° to +60°C range.

Specifications

Supply Voltage 12 Vdc nominal (typically powered by datalogger)
Current Consumption ≤ 4 mA (active)

Temperature

Temperature Sensor 1000 ohm Platinum Resistance Thermometer
Measurement Range -39.2° to +60°C
Output Signal Range 0.008 to 1.0 V
Accuracy See graph in HMP45C product brochure.

Relative Humidity

Sensor Vaisala’s HUMICAP H-chip
Measurement Range 0.8% to 100% RH (non-condensing)
Output Signal Range 0.008 to 1 Vdc
Accuracy at 20°C
  • ±1% RH (against factory reference)
  • ±2% (0% to 90% range) field-calibrated against references
  • ±3% (90% to 100% range) field-calibrated against references
Temperature Dependence ±0.05% RH/°C
Long-Term Stability Typically, better than 1% RH per year
Response Time 15 seconds with membrane filter (at 20°C, 90% response)
Settling Time 500 milliseconds

Compatibility

The military style connector attaches to the RAWS-F Fire Weather Quick Deployment Station, which has an on-board CR1000.

Mounting

The HMP45C-QD is housed in a 41003-5 10-plate naturally-aspirated solar radiation shield.
