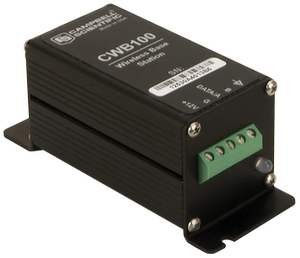

CWB100E 868 MHz Wireless Sensor Base for Europe
Hub of Wireless Sensor Network
Polls and stores data from up to 50 wireless sensors
weather applications water applications energy applications gas flux & turbulence applications infrastructure applications soil applications

Overview

The CWB100E is the master radio in a Campbell Scientific wireless-sensor network. It can poll and store data from up to 50 sensors, and then pass that data to a datalogger. The timing of polling and the number of sensors is configurable. The CWB100E uses a frequency-hopping, spread-spectrum radio for long range and less interference. The 868 MHz frequency is used in Europe and other areas worldwide.

Read More

This product will be discontinued as of 10 April 2017. Please review the CWS-Series and CWB-Series Discontinuation Notice for further details.

Images

Detailed Description

The CWB100E is the base station used in a Campbell Scientific wireless sensor network. It contains an internal 868-MHz spread spectrum radio that receives data from the wireless sensors in the network. The frequency of the CWB100E's internal radio is commonly used Europe. The datalogger is connected to the CWB100E for processing and storing the wireless sensor's data.

Why Wireless?

There are situations when it is desirable to make measurements in locations where the use of cabled sensors is problematic. Protecting cables by running them through conduit or burying them in trenches is time consuming, labor intensive, and sometimes not possible. Local fire codes may preclude the use of certain types of sensor cabling inside of buildings. In some applications measurements need to be made at distances where long cables decrease the quality of the measurement or are too expensive. There are also times when it is important to increase the number of measurements being made but the datalogger does not have enough available channels left for attaching additional sensor cables.

Specifications

Operating Temperature Range -25° to +50°C
Operating Relative Humidity 0 to 100% (non-condensing)
Power Source Datalogger
Voltage 4.5 to 22 Vdc
Standby Typical Current Drain < 1 mA (@ 12 Vdc)
Receive Typical Current Drain 10 mA (@ 12 Vdc)
Transmit Typical Current Drain 20 mA (@ 12 Vdc)
Communication Serial protocol or USB
Terminal Block Connector Bi-directional serial datalogger connection
USB Port Computer connection for configuration
Antenna Type RPSMA antenna connection
Memory Capacity Can store data table for up to 50 wireless sensors.
Dimensions 10.8 x 4.4 x 4.4 cm (4.25 x 1.75 x 1.75 in.) including mounting bracket
Weight 140 g (5 oz)

Internal 25 mW FHSS Radio

Frequency 868 MHz
Where Used Europe
FHSS Channel 16
Transmitter Power Output 25 mW (+14 dBm)
Receiver Sensitivity -110 dBm (0.1% frame error rate)
Standby Typical Current Drain 3 μA
Receive Typical Current Drain 18 mA (full run)
Transmit Typical Current Drain 45 mA
Average Operating Current 15 μA (with 1-second access time)
Quality of Service Management RSSI
Additional Features GFSK modulation, data interleaving, forward error correction, data scrambling, RSSI reporting

Compatibility

Note: The following shows notable compatibility information. It is not a comprehensive list of all compatible or incompatible products.

Dataloggers

Product Compatible Note
CR1000 Must have datalogger OS version 21 or higher.
CR200X (retired)
CR206X (retired)
CR211X (retired)
CR216X (retired)
CR295X (retired)
CR3000 Must have datalogger OS version 21 or higher.
CR6 The CR6 datalogger must have datalogger OS version 4.0 or higher.
CR800 Must have datalogger OS version 21 or higher.
CR850 Must have datalogger OS version 21 or higher.
CR9000X

Additional Compatibility Information

Datalogger Considerations

The datalogger is programmed to interface with the CWB100E and determine a polling interval. The sensors make their measurements as they are polled. The base station polls all sensors and stores the collected data early enough that it can transfer the data as soon as the datalogger requests it. This minimizes the amount of time the datalogger needs to wait for a response from the network through the CWB100E base station.

At the start of each polling interval, the datalogger polls the base station, and sensor values are transferred to the datalogger for storage. This method of data transfer from the sensors to the datalogger provides the fastest and lowest power method available.

Downloads

CWB100 Firmware v.1.04 (711 KB) 06-10-2013

Latest firmware for the CWB100.

View Update History

CWB100 USB Driver () 01-01-2014

Windows USB drivers for the CWB100 are installed via the Device Configuration Utililty. In the Device Configuration Utility, click on the link "install the device driver for the CWB100" in the main body of text for the CWB100.

Note: Driver must be installed before connecting the CWB100 to your computer.
