RETIRED ›
This product is no longer available. Some accessories, replacement parts, or services may still be available.
CR720XL Large I/O Module for CR7

Overview

Either the CR720 or CR720XL I/O Module is required in each CR7 System. The CR720XL provides regulated power for analog and digital functions, 16-bit A/D-D/A conversion (analog interface card), and a precision voltage reference. The CR720XL includes an I/O chassis and contains slots for up to fourteen I/O Cards.

Note: We offer a number of components to add to existing CR7 systems; however, the components necessary for thermocouple psychrometry applications are no longer available.

Read More

Benefits and Features

  • Can be added to or removed from CR700X to support changing measurement needs
  • Provides regulated power for analog and digital functions
  • Performs 16-bit A/D-D/A conversion
  • Contains slots for up to fourteen I/O cards
  • Housed in the ENC 7XL

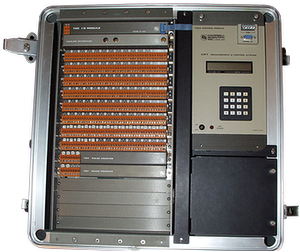

Images

Detailed Description

The CR720XL is an I/O module and analog interface for the CR7 Modular Measurement and Control Datalogger; either the CR720XL or CR720 is required in each CR7. The CR720XL provides regulated power for analog and digital functions, 16-bit A/D-D/A conversion (analog interface card), and a precision voltage reference. This module includes an I/O chassis that contains slots for up to 14 I/O cards. Field use requires an ENC7XL enclosure.

Specifications

-NOTE- Note: Specifications are listed in the CR7 Specifications Sheet.
