Granite 10

Name: Granite 10
Brand: Campbell Scientific
SKU: GRANITE10
Availability: InStock

Measurement and Control Data Acquisition System

Granite 10

OrderableConfigurable

Measurement and Control Data Acquisition System

Pricing

Configuration

Standard DutyGRANITE10-SD
Extended DutyGRANITE10-XD

Qty

Select a configuration to add to your quote

Model:: Granite 10
Item Number:: GRANITE10
Warranty:: 3 years

Overview

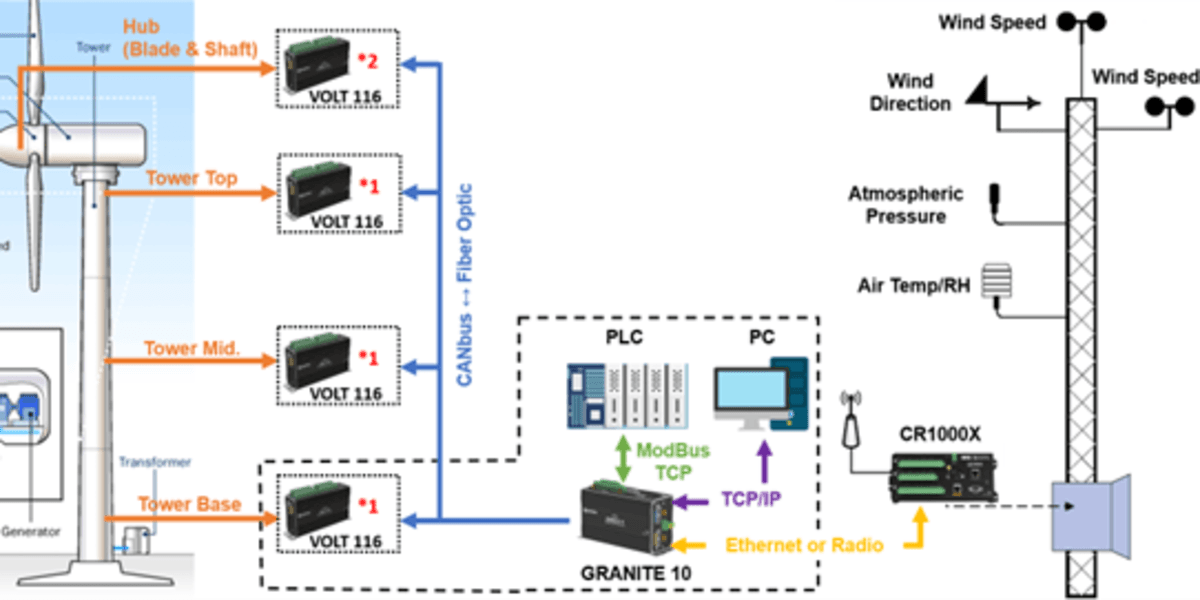

Similar to the Granite™9, the Granite™10 is the most computationally powerful data acquisition device from Campbell Scientific. As an all-digital measurement and control DAQ, the Granite 10 is designed as the core of the data acquisition network, integrating with all GRANITE™ measurement modules, including the Volt 108, Volt 116, Temp 120, and VWire 305. Unlike the Granite 9, however, the Granite 10 also includes four general-purpose CAN channels. With its CAN channels, a larger 128 GB SSD, and extended temperature ranges, the Granite 10 is your ultimate tool for automotive testing.

Key Advantages

Ideal for Automotive Testing Applications
Featuring CAN bus and CAN FD output

Technical Description

The Granite 10 enables you to perform the following:

Standard measurement functions
Advanced math and processing functions
Control functions

Benefits

Traditional network connections via Ethernet port
EPI port switch for high-speed connection to all GRANITE measurement modules
Onboard storage of streaming data with 2 GB of DDR3 SDRAM and a 128 GB solid-state hard drive (SSD)
Built-in GPS for network synchronization
General-purpose CAN channels

Specifications

-NOTE-: Additional specifications are listed in the GRANITE 10 Specifications.
Maximum Program Scan Rate: 10 kHz
Measurement Module Synchronization: ±5 µs
(CPI)
±50 ns
(EPI)
GPS Synchronization: ±200 ns
Maximum Number of Measurement Modules: 15 + 15 + 15
Power Requirements: 9.6 to 32 Vdc (voltage input)
10 to 18 Vdc for battery input (BAT)
Real-Time Clock Accuracy: ±3 min. per year
Operating Temperature Range: -40° to +70°C
(standard)
-55° to +85°C
(extended)
Non-condensing environment
Case Material: Stainless steel 304 and aluminum 6061
Universal Inputs: 12 individually configured inputs for analog or digital functions
Pulse Counters: 8 (C1 to C8)
Voltage Excitation Terminals: 12 (U1 to U12)
Communications Ports: CAN FD
CAN
Ethernet
USB Micro B
USB host
CS I/O
0 to 5 V serial
SDI-12
RS-485
RS-422
CPI/RS-232
EPI
Data Storage Ports: microSD
USB host
Digital I/O: 8 terminals (C1 to C8) configurable for digital input and output.
Terminals are configurable in pairs for 5 V or 3.3 V logic for some functions.
Analog Voltage Accuracy: Accuracy specifications do not include sensor or measurement noise.
±(0.04% of measurement + offset) at 0° to 40°C
±(0.06% of measurement + offset) at -40° to +70°C
±(0.08% of measurement + offset) at -55° to +85°C
(extended temperature range)
ADC: 24-bit
Internet Protocols: Ethernet, PPP, RNDIS, ICMP/Ping, Auto-IP (APIPA), IPv4, IPv6, UDP, TCP, TLS (v1.2), DNS, DHCP, SLAAC, Telnet, HTTP(S), SFTP, FTP(S), POP3/TLS, NTP, SMTP/TLS, SNMPv3, CS I/O IP
Communication Protocols: CAN FD, CAN, CPI, EPI, PakBus, PakBus Encryption, SDM, SDI-12, Modbus RTU / ASCII / TCP, DNP3, custom user definable over serial, UDP, NTCIP, NMEA 0183, I2C, SPI
Warranty: 3 years standard (against defects in materials and workmanship)
Optional: An additional 2 years (against defects in materials and workmanship), bringing the total to 5 years
Battery-backed SRAM for CPU Usage & Final Storage: 4 MB
Data Storage: 4 MB SRAM + 128 MB NOR flash
(Storage expansion of up to 16 GB with removable microSD flash memory card.)
128 GB SSD
Idle Current Drain, Average: Assumes 12 Vdc on BAT terminals; add 2 mA if using CHG terminals.
< 1 mA
Active Current Drain, Average: ~6 W
255 mA input
(24 V input)
495 mA input
(12 V input)
Static Vibrating-Wire Measurements: Not supported
Dimensions: 21.4 x 12.0 x 7.5 cm
(8.4 x 4.7 x 3.0 in.)
Additional clearance required for cables and leads.
Weight: 1.2 kg
(2.7 lb)
