CS658
CS658
OrderableHydroSense II Water Content Sensor with 20 cm Rods
Pricing
- Model:
- CS658
- Item Number:
- 15525
- Warranty:
- 1 year
- Compliance:
- for use only w/HS2 Display
Overview

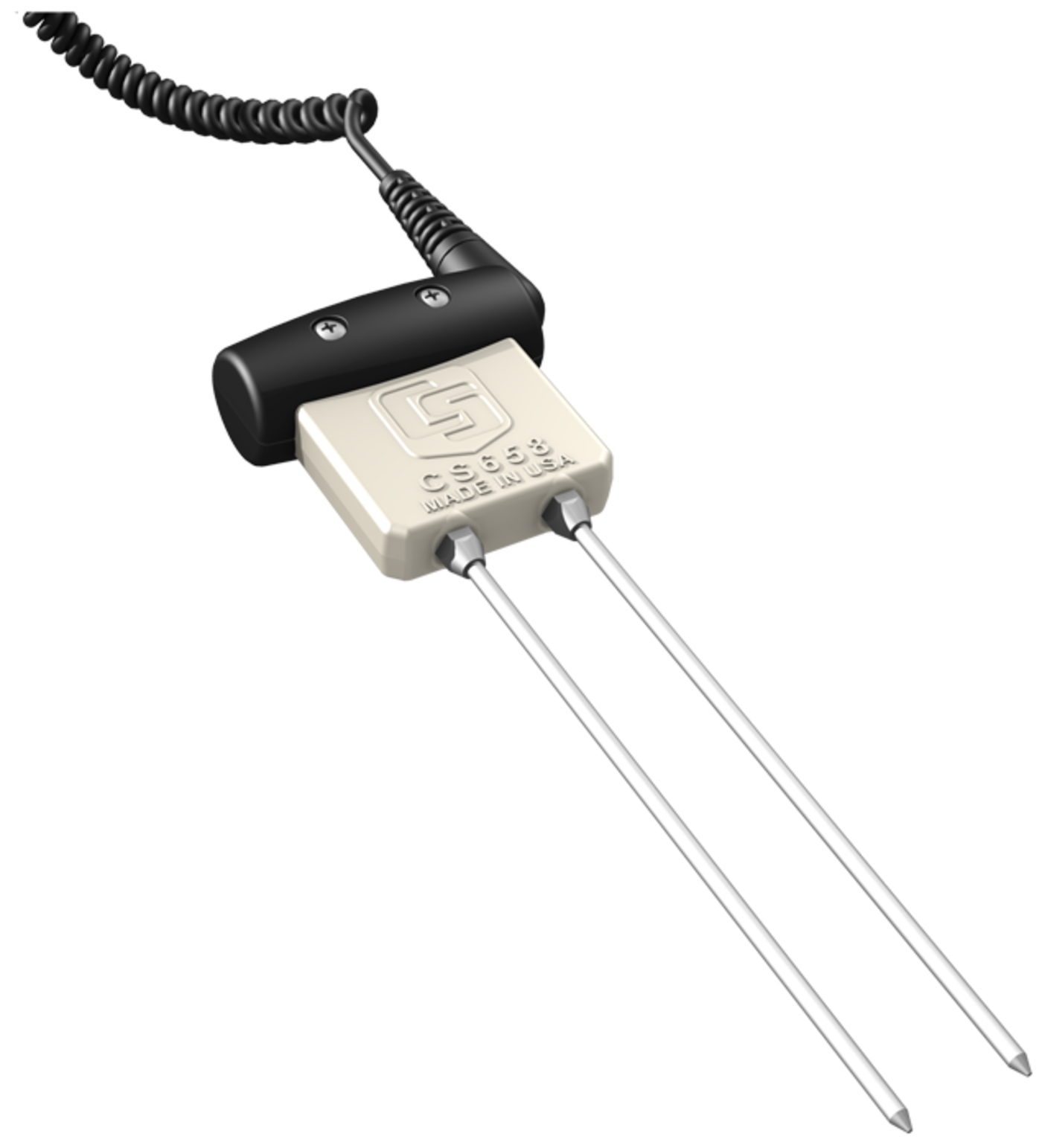

The CS658 is a water content probe used in the Hydrosense II system (not for use with data loggers). This probe has 20 cm rods; another probe, the CS659, has 12 cm rods. When ordered with the HS2 Hydrosense II Display, the CS658 is option -20. It is also available as a replacement part.
Note: The CS658 is designed for use with the HS2 but not with the HS2P.
Technical Description
The CS658 soil moisture probe has been designed to aid insertion into and removal from hard soils. The probe rods use ferrule nuts to secure the rods to the probe housing. A molded plastic grip connects the probe's cable to its housing.
Specifications
- Measurements Made
- Volumetric water content of porous media (such as soil)
- Volumetric Water Content Accuracy
- 3% typical
(solution electrical conductivity < 4 dS/m)
- Required Equipment
- HS2
- Soil Suitability
- Suitable for hard soils.
- Rods
- Replaceable
- Sensors
- Not interchangeable
- Volumetric Water Content Resolution
- < 0.05%
- Volumetric Water Content Range
- 0% to 50% VWC
- Cable
- Spiral, 250 cm (98 in.) extended
- Cable Length
- 1.524 m
(5.0 ft) when coiled
- Ingress Protection Rating
- IP68
- Rod Diameter
- 5 mm
(0.14 in.)
- Rod Length
- 200 mm
(7.9 in.)
- Body Dimensions
- 100 x 92 x 40 mm
(3.9 x 3.6 x 1.6 in.)
- Weight
- 450 g
(15.9 oz)
