RetiredConfigurableTexas Electronics Rain Gage 0.01 in. Tip with 8 in. Orifice
Pricing
- Model:
- TE525WS-LC
- Item Number:
- TE525WS-LC
- Warranty:
- 1 year
Overview

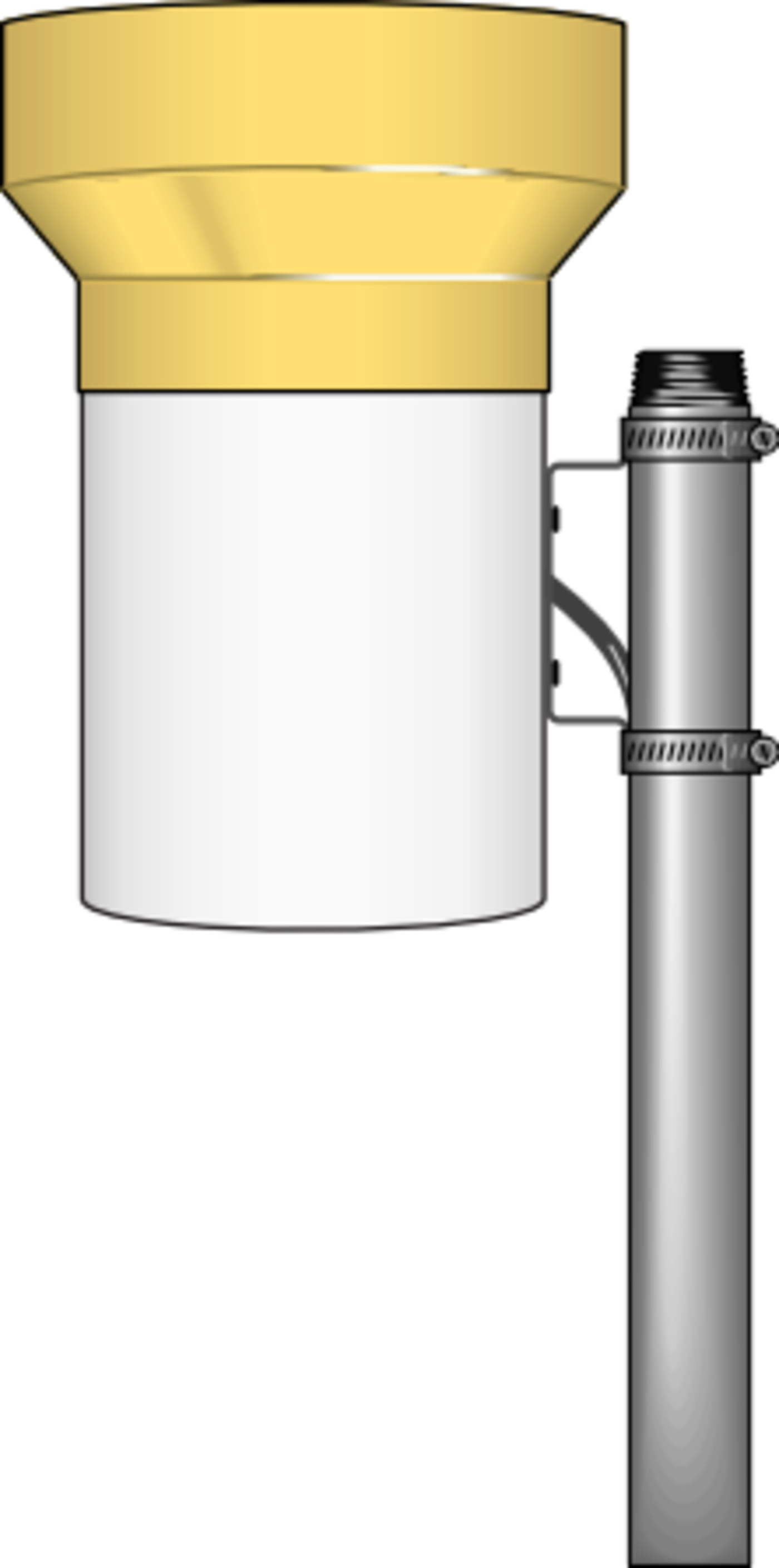

The TE525WS-LC conforms to the National Weather Service recommendation for an 8" funnel orifice. It measures rainfall in 0.01 inch increments. The TE525WS-LC funnels precipitation into a bucket mechanism that tips when filled to a calibrated level.
Key Advantages
Technical Description
The cable on this version of the TE525WS tipping bucket rain gage has a connector rather than the standard pigtails. The connector attaches to the connector panel on a CS110 Electric Field Meter or MetData1 Weather Station.
The TE525WS-LC conforms to the National Weather Service recommendation for an 8" funnel orifice. It measures rainfall in 0.01 inch increments. The TE525WS-LC funnels precipitation into a bucket mechanism that tips when filled to a calibrated level.
Specifications
- Sensor Type
- Tipping bucket/magnetic reed switch
- Material
- Anodized aluminum
- Temperature
- 0° to 50°C
- Resolution
- 1 tip
- Volume per Tip
- 8.25 ml/tip
(0.28 fl. oz/tip)
- Rainfall per Tip
- 0.254 mm
(0.01 in.)
- Accuracy
- 1.0%
up to 2 in./h (50 mm/h)
- Funnel Collector Diameter
- 20.3 cm
(8 in.)
- Cable
- 2-conductor shielded cable
- Height
- 26.7 cm
(10.5 in.)
- Tipping Bucket Weight
- 1.0 kg
(2.2 lb)
- Cable Weight
- 0.1 kg (0.2 lb) per 3.048-m (10-ft) length
Ships With
(2)- Hose clamps from original mfgQty 2
- Screws from original mfgQty 3
