8219

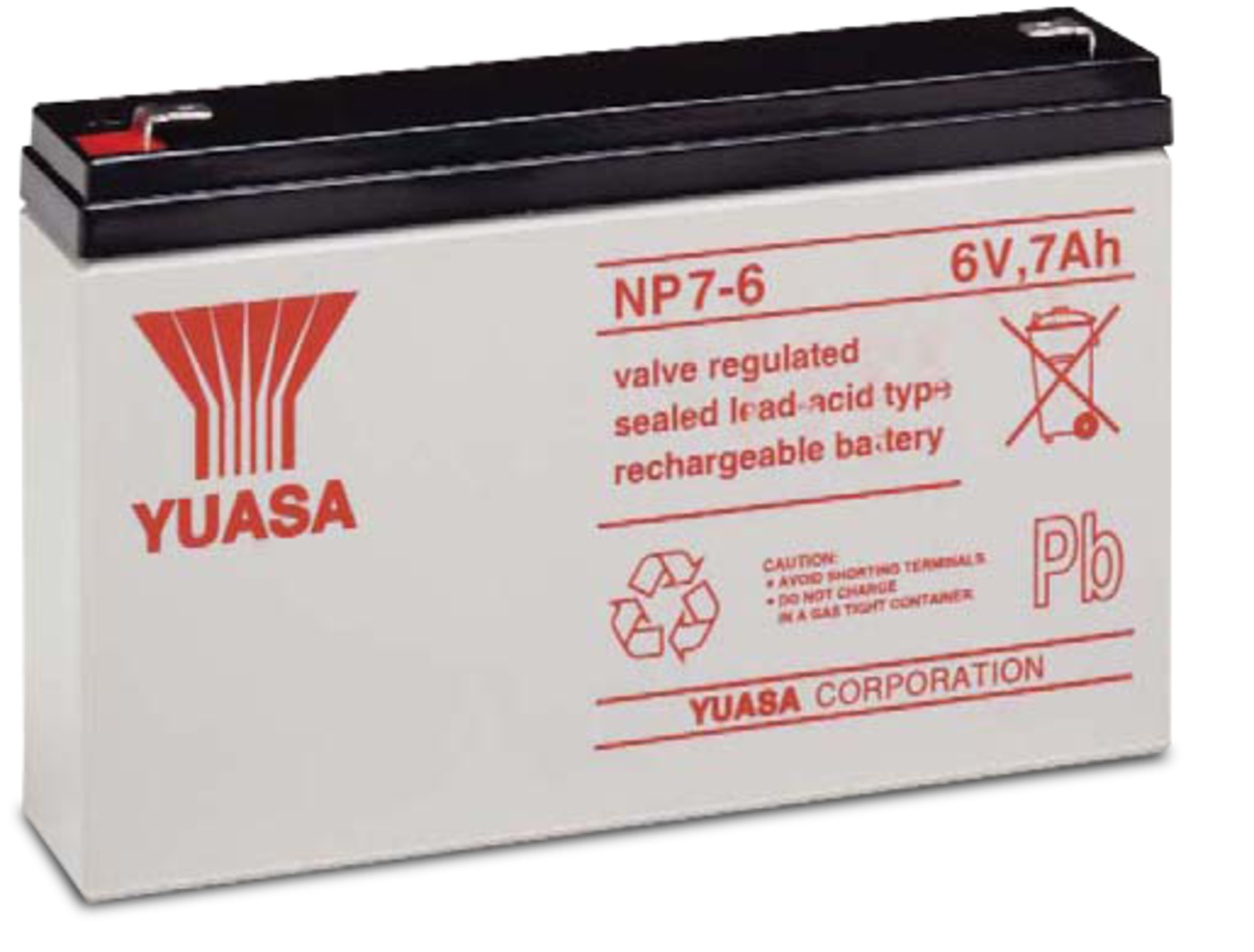

6 V 7 Ah Lead Acid Battery
8219
Orderable6 V 7 Ah Lead Acid Battery
Overview
The 8219 provides a 6 Vdc 7 Ah sealed rechargeable battery. This battery is used in the rechargeable base of a CR23X, CR3000, or CR5000 datalogger. It is also included in the 8271 Sealed Battery Module for the CR9000(X)-series dataloggers. To provide 12 Vdc, two of these batteries are wired in series. For the CR9000X, four batteries are used to create a 12 V, 14 Ah source. For the CR9000XC, two batteries are used. Customers can generally replace the batteries.
Specifications
- Manufacturer Information
- YUASA NP7-6
- Voltage
- 6 Vdc
- Capacity
- 7 Ah, 20 hr to 1.75 vpc
(@ 30°C)
- Type
- Valve-regulated sealed lead-acid (VRLA), rechargeable
- Terminals
- Faston tab 187 A, 0.47 cm (0.185 in.) x 0.64 cm (0.25 in.)
- Dimensions
- 15.24 x 3.18 x 10.16 cm
(6.0 x 1.25 x 4.0 in.)
- Weight
- 1.25 kg
(2.75 lb)
