8061
8061

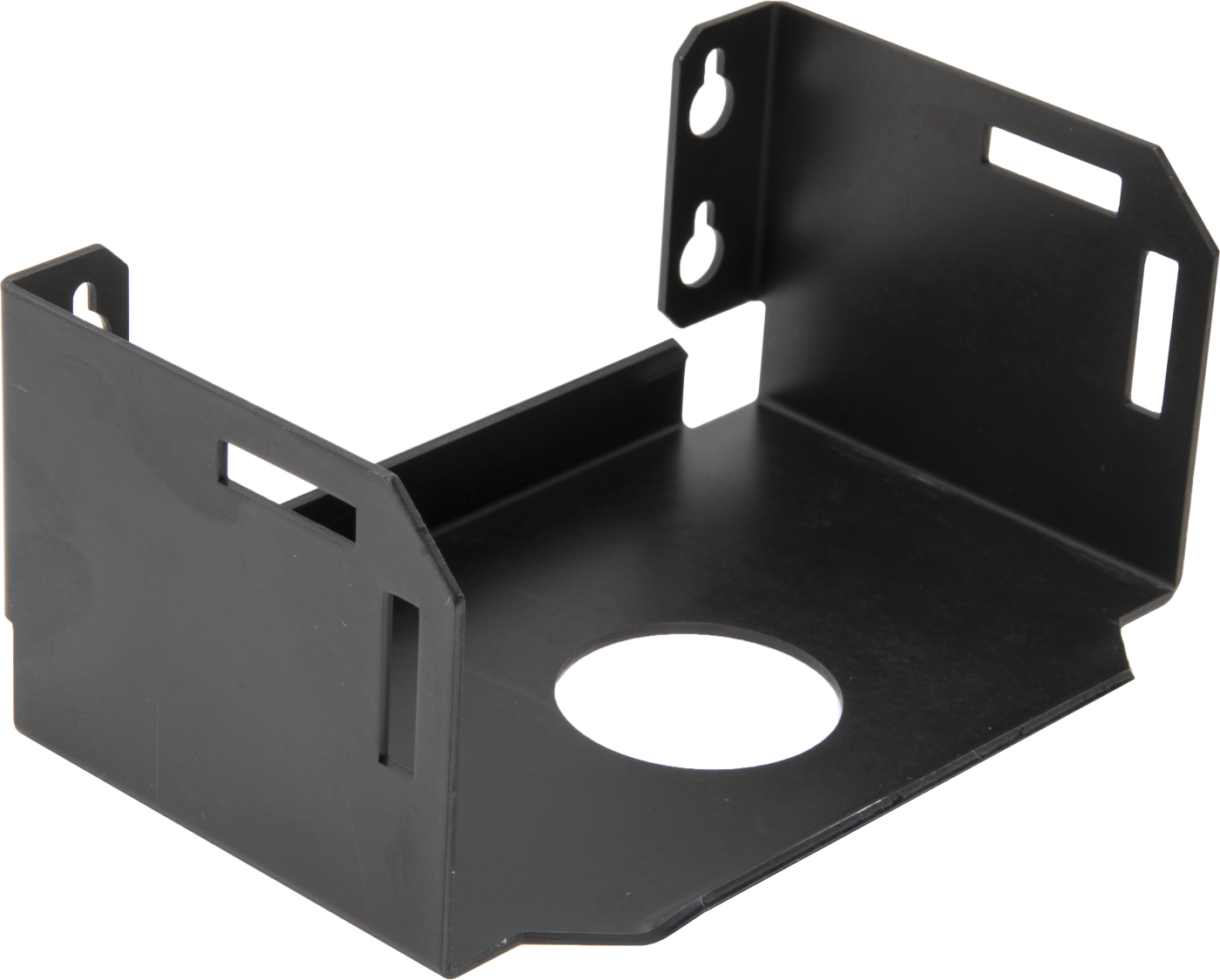

OrderableBP12 Shelf Mounting Bracket
Overview
The 8061 is the main component of the BP12's mounting hardware (without grommets, screws, and Velcro strap). Four pn 505 screws and four pn 6044 grommets attach the bracket to an enclosure backplate. The 5207 Velcro strap secures the battery to the 8061 bracket. Screws, grommets, and the Velcro strip are listed as Other Accessories in the Ordering Info.
Specifications
- Dimensions
- 15.88 x 10.16 x 6.99 cm
(6.25 x 4.0 x 2.75 in.)
- Weight
- 158.76 g
(0.35 lb)
Other Accessories
(3)5207
Velcro Strap, 1 in. x 18 in.
The 5207 holds the battery to the 8061 bracket.
Orderable505
Screw #6-32 x .375 Pan Phillips
Four 505 screws are used to attach the 8061 bracket to an enclosure backplate. Four 6044 grommets are also required (see below).
Orderable6044
Grommet for #6 or #8 Screw
Four 6044 grommets are used to attach the 8061 bracket to an enclosure backplate. Four 505 screws are also required (see above).
