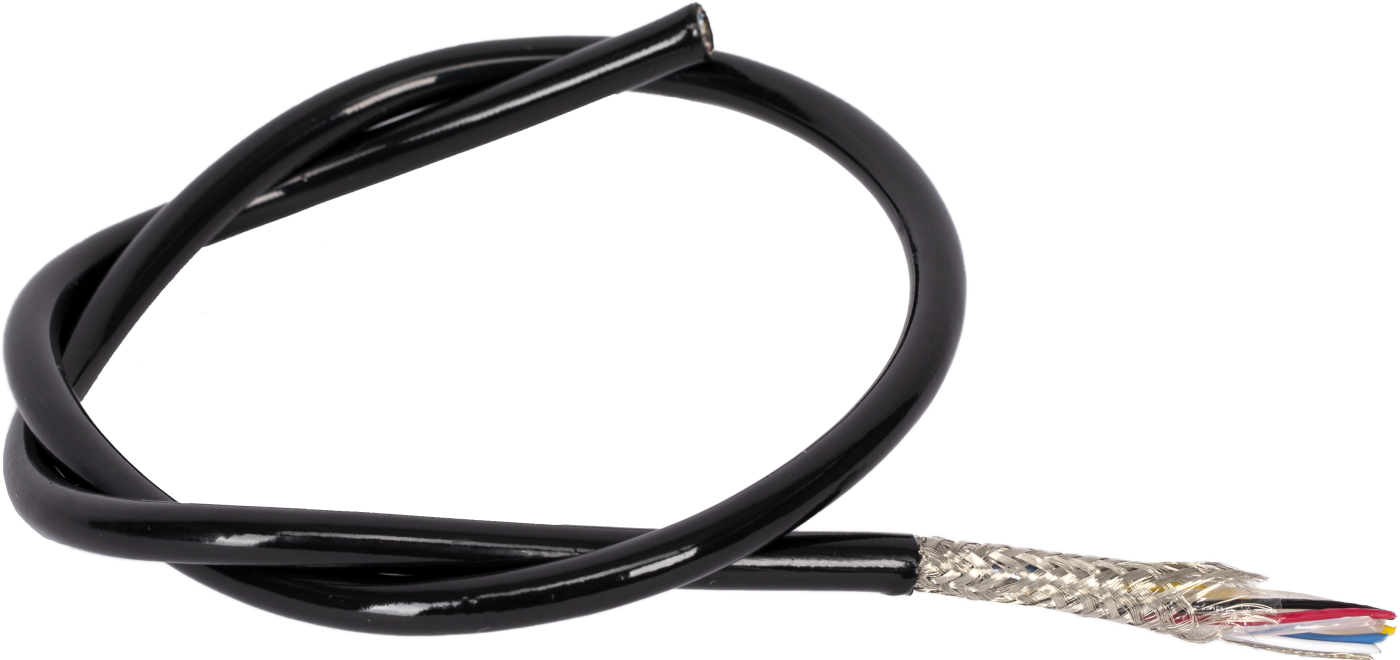

26 AWG 5-Conductor Shielded, Vented Hytrel Cable
21871

21871

Orderable

26 AWG 5-Conductor Shielded, Vented Hytrel Cable

Pricing

Sign in for pricing
Model:
21871
Item Number:
21871
Warranty:
No Warranty

Overview

Our CS450 and CS455 pressure transducers are fitted with this cable. The 21871 consists of a vented, 26 AWG, 5-conductor cable with a Hytrel jacket. The Hytrel jacket allows the cable to remain flexible, even in harsh conditions. The 21871 also includes a shield.

Specifications

Conductors
26 AWG 19/38 tinned copper
Insulation
Nominal 0.25 mm (0.01 in.) thickness, polyethylene
Color Code
1 - Black
2 - Red
3 - White
4 - Blue
5 - Yellow
Vent Tube
Nominal 1.02 mm (0.04 in.) ID x 2.03 mm (0.08 in.) OD natural polyethylene tubing
Drain Wire
26 AWG 7/34 tinned copper
Braid Shield
Minimum 85% coverage, 40 AWG tinned copper
Jacket
Nominal 0.686 mm (0.027 in.) thickness, black Hytrel
Cable Outer Diameter
5.89 mm

(0.232 in.)

5.99 mm

(0.236 in.) maximum

Dimensions
30.48 x 0.64 x 0.64 cm

(12.0 x 0.25 x 0.25 in.)

Weight
13.61 g

(0.03 lb)
