OrderableBP24 Mounting Bracket
Overview

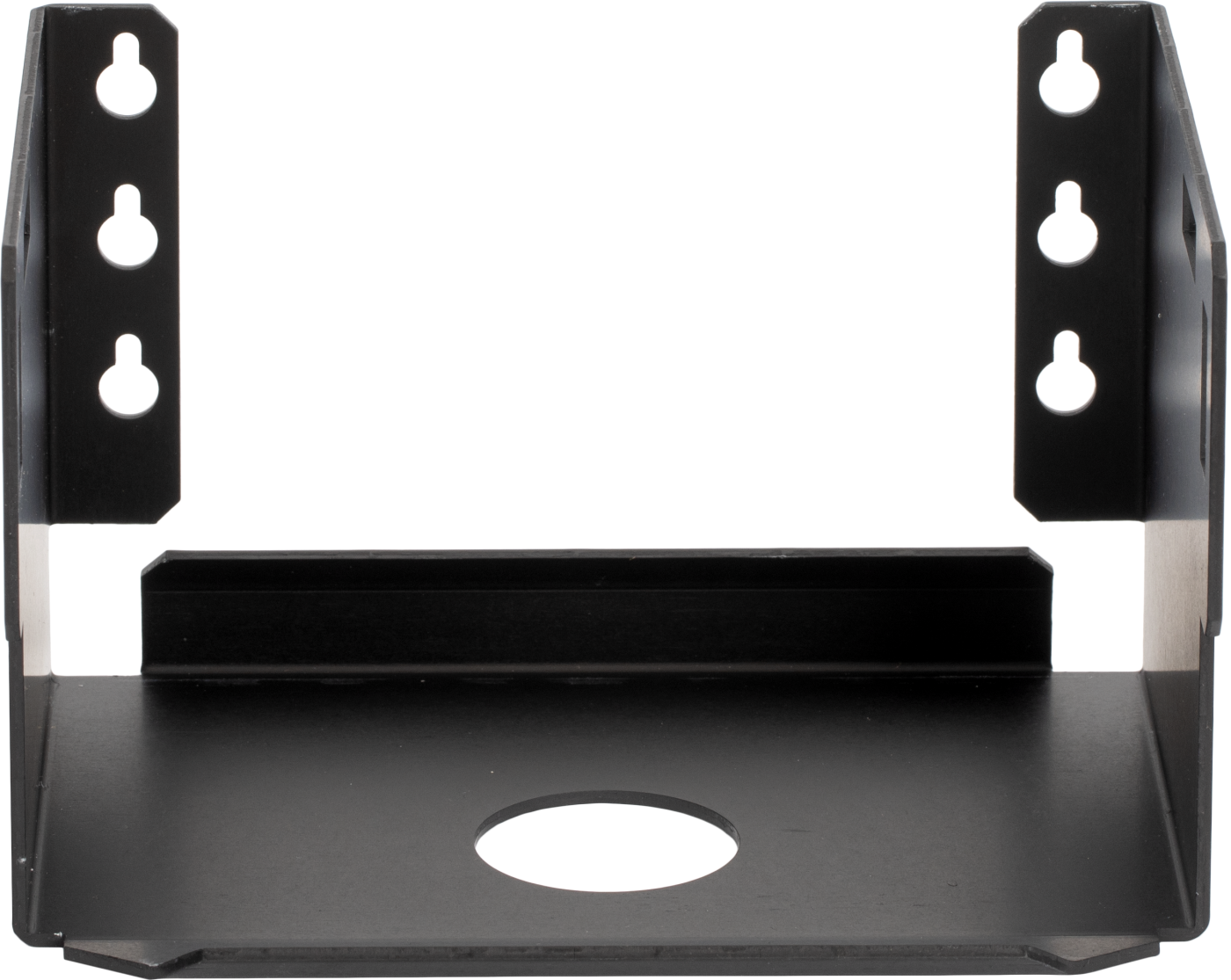

The 10073 is the main component of the BP24's mounting hardware (without grommets, screws, and Velcro strap). Four screws (pn 505) and four grommets (pn 6044) attach the bracket to an enclosure backplate. The 20640 Velcro strap secures the battery to the 10073 bracket. Screws, grommets, and the Velcro strap are listed as Other Accessories in Ordering Info.
Specifications
- Dimensions
- 18.1 x 13.7 x 11.4 cm
(7.13 x 5.38 x 4.5 in.)
- Weight
- 340.2 g
(0.75 lb)
Other Accessories
(3)20640
Velcro Strap, 1 in. x 22 in.
The 20640 Velcro strap holds the battery to the 10073 bracket.
Orderable505
Screw #6-32 x .375 Pan Phillips
Four 505 screws are used to attach the 10073 bracket to an enclosure backplate. Four 6044 grommets are also required (see below).
Orderable6044
Grommet for #6 or #8 Screw
Four 6044 grommets are used to attach the 10073 bracket to an enclosure backplate. Four 505 screws are also required (see above).
