CS658P
CS658P
OrderableWater-Content Reflectometer for HS2P, 20 cm Rods
Overview

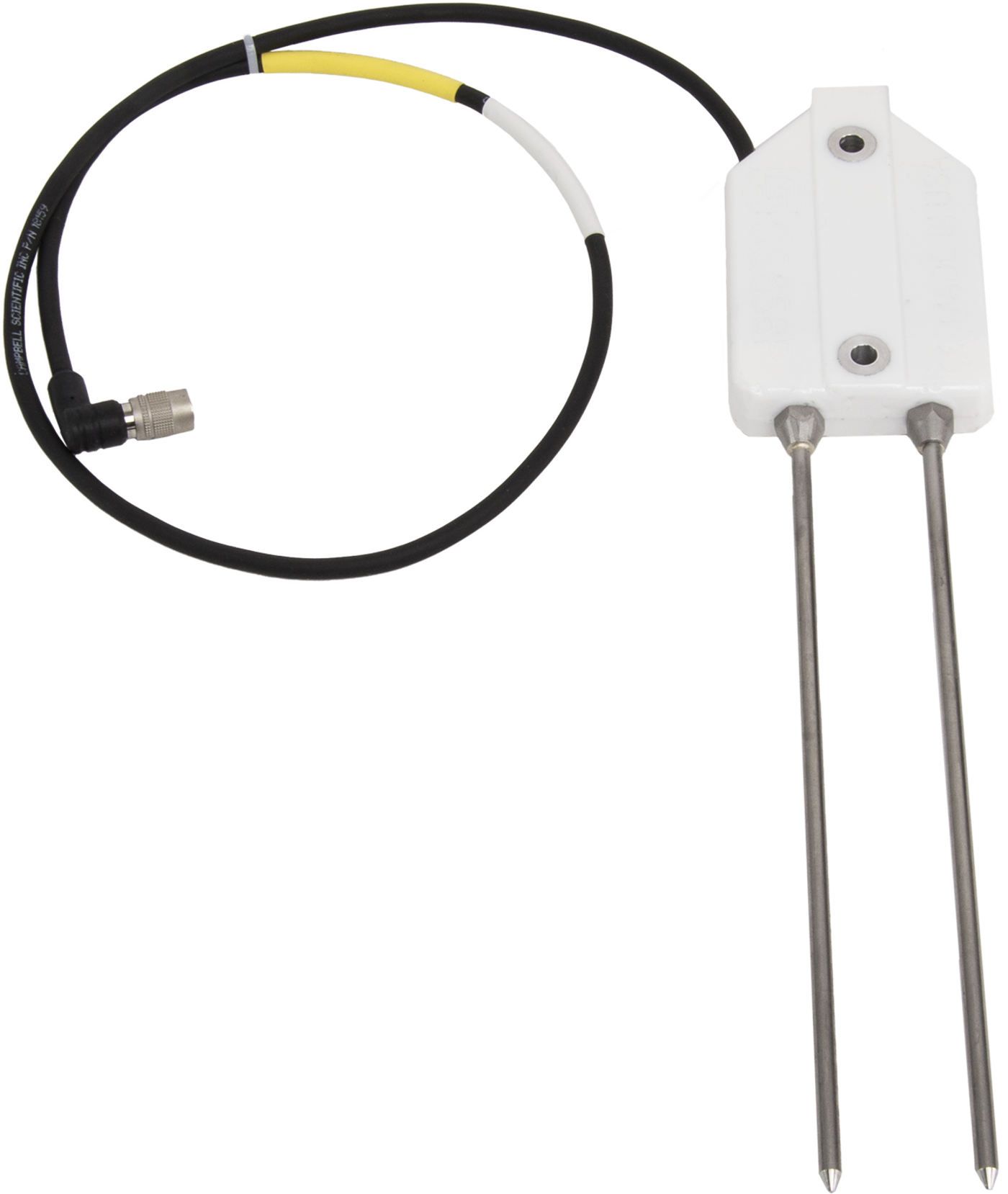

The CS658P is a water content probe used in the HS2P system (not for use with data loggers). (The CS658P is designed for use with the HS2P but not with the HS2.) This probe has 20 cm rods; another probe, the CS659P, has 12 cm rods. When ordered with the HS2P, the CS658P is option -20. It is also available as a replacement part.
Specifications
- Volumetric Water Content Accuracy
- 3% typical
(solution electrical conductivity < 4 dS/m)
- Volumetric Water Content Resolution
- < 0.05%
- Volumetric Water Content Range
- 0 to 50% VWC
- Ingress Protection Rating
- IP68
- Rod Diameter
- 5 mm
(0.14 in.)
- Rod Length
- 200 mm
(7.9 in.)
- Body Dimensions
- 100 x 92 x 40 mm
(3.9 x 3.6 x 1.6 in.)
- Weight
- 303.91 g
(0.67 lb)
Replacement Parts
(2)26485
20 cm TDR Rods for CS658 (quantity of 2)
The 26485 provides two 20 cm rods. If only one rod needs to be replaced, customers may order the 26483.
Orderable26483
20 cm TDR Rod for CS658 (quantity of 1)
The 26483 provides one 20 cm rod. The 26483 is available when only one of the CS658P rods needs to be replaced.
Orderable
Compatibility
The CS658P is used with the HS2P soil content system only. (The CS658P is designed for use with the HS2P but not with the HS2.) The rods of the CS658P and CS659P are not interchangeable.
