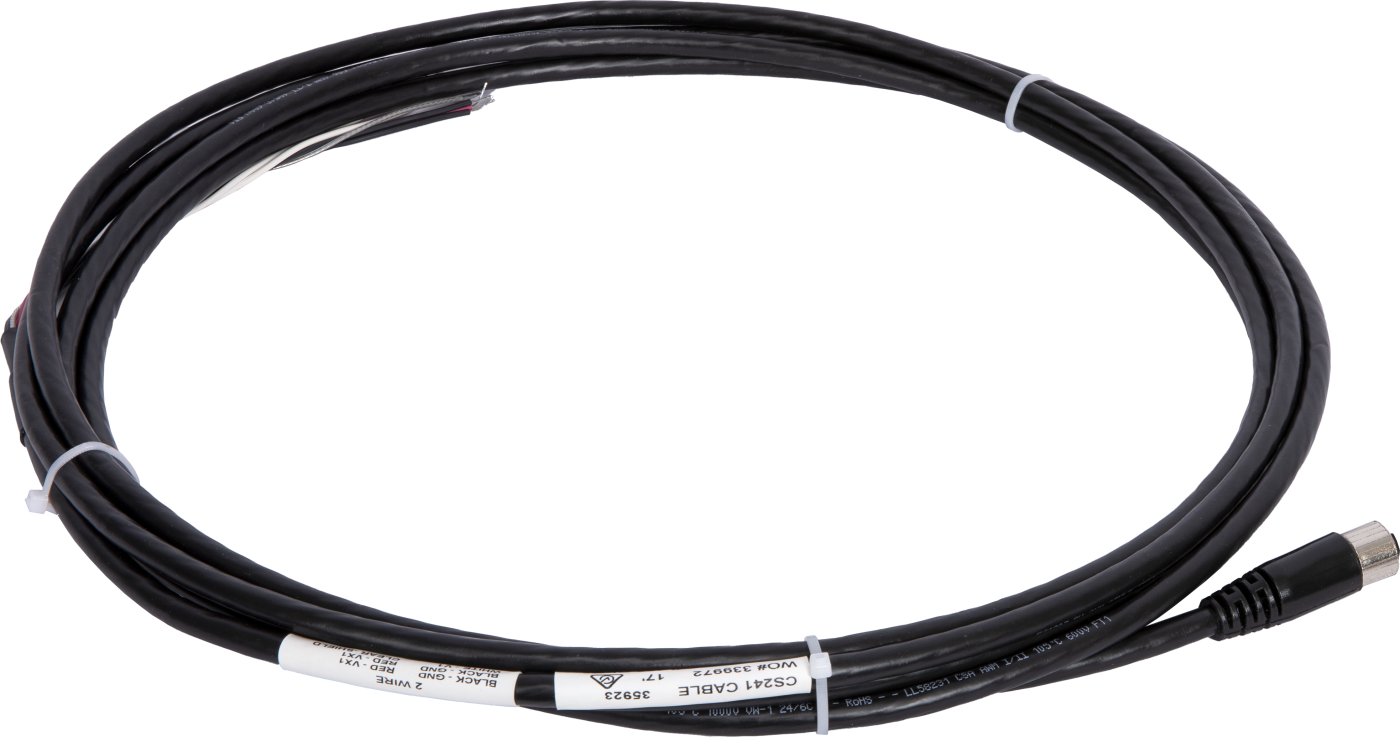

CS241CBL
CS241 Replacement Cable
CS241CBL
OrderableCS241 Replacement Cable
Pricing
Configuration
Sign in for option pricing- w/5m (17ft) per Cable -PF w/Ferrules on Wires-5m
- CS241CBL-L CS241 Cable w/15m per Sensor -PF w/ Ferrules on WiresCS241CBL-15m
- w/22m (75ft) per Cable -PF w/Ferrules on Wires-22m
- CS241CBL-L CS241 Cable w/30m per Sensor -PF w/ Ferrules on WiresCS241CBL-30m
- w/45m (150ft) per Cable -PF w/Ferrules on Wires-45m
- w/100m (328ft) per Cable -PF w/Ferrules on Wires-100m
Select a configuration to add to your quote
- Model:
- CS241CBL
- Item Number:
- 45048
Overview
The CS241CBL is the cable used on the CS241 Pt-1000 Class A, Back-of-Module Temperature Sensor. The CS241CBL is designed to withstand the extreme rigors of solar applications by providing maximum reliability and flexibility.
Benefits
- Approved by UL AWM 2586 1000V 105°C; CSA AWM 600V 105°C FT
- Aluminum/Mylar shield
- 24 AWG tinned copper drain (cabled, touching foil)
- Stranded bare copper conductors
- PVC jacket
- PVC/nylon insulation
- Tinned copper braid shield, 85% coverage
- Sunlight, ozone, and UV resistant
- Direct burial
- Moisture resistant
- 10x bend radius
- Wide temperature range
Specifications
Conductors
- Wire Size and Type
- 24 AWG (7/32) tinned copper
- Insulation Type
- PVC
- UL
- AWM 10012 1000V 105°C
- Filler
- Fibrillated polypropylene as required for uniform round construction
- Drain
- 24 AWG (7/32) tinned copper
(cabled, touching foil)
- Shield
- Aluminum/Mylar
(100% coverage, 25% minimum overlap, foil facing in)
- Nominal Wire Diameter
- 0.61 mm
(0.024 in.)
Compliance
- -NOTE-
- Compliance information can be found in the Documents section of the web page.
- Approvals
- UL AWM 2586 1000V 105°C; CSA AWM 600V 105°C FT
- EMC Compliance
- Conforms with Electromagnetic Compatibility Directive (EMC).
- RoHS2
- Conforms with the Restriction of Hazardous Substances Directive (RoHS2).
