CR216

Datalogger with 2.4 GHz Spread-Spectrum Radio
CR216

CR216

End of life

Datalogger with 2.4 GHz Spread-Spectrum Radio

No longer available to order

This product is retained for service, documentation, and compatibility information.

Replaced by

  • CR300

    Measurement and Control Datalogger

  • CR310

    Measurement and Control Datalogger

Model:
CR216
Item Number:
18183
Warranty:
3 years

Overview

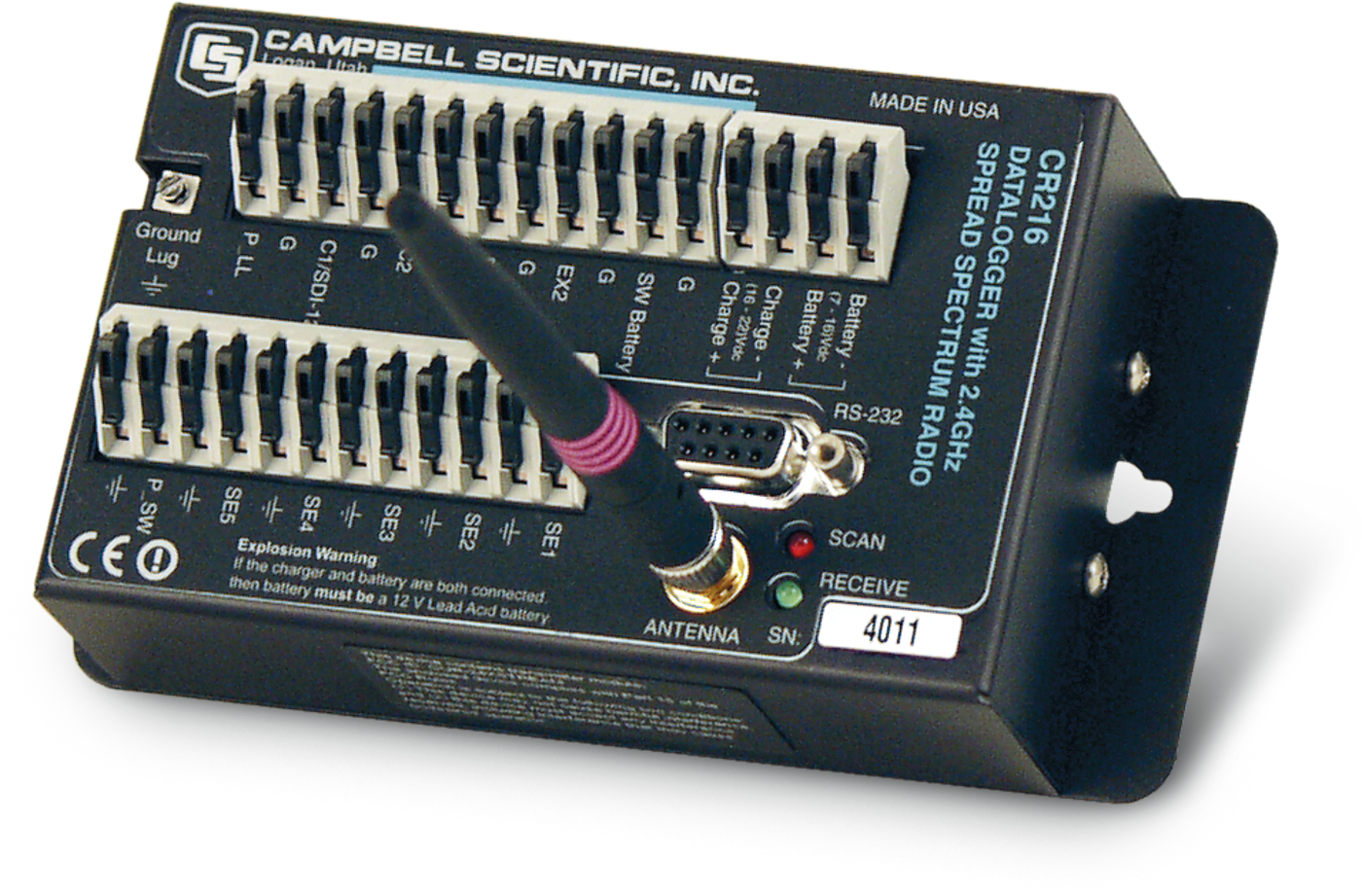

The CR216 datalogger combines an on-board 2.4 GHz spread-spectrum radio with the functionality of the CR200 Datalogger. The CR216 provides both measurement and communication capability in a small, rugged package.

The CR216's input channel configuration and small size is optimal for measuring one or two sensors. When paired with an ENC200 enclosure and the small 16869 battery, the packaged CR216 has a deployment size of only 6 inches by 7 inches. If an alternate spread-spectrum radio is required, see our CR206 and CR211 dataloggers.

Product Notes

see RF416 for antennas

Benefits

  • Ideal where only a few sensors will be measured
  • Replaces the CR215 Datalogger

Specifications

-NOTE-
Note: Additional specifications are listed in the CR200-Series Specifications Sheet.
Internal Radio Operating Frequency Range
2.450 to 2.482 GHz
Program Storage
6 KB program storage

(non-volatile)

Data Format
Table based
Data Logger Operating System (OS)
PakBus
Software Support
Short Cut, PC400, or LoggerNet

Other Accessories

(12)

Compatibility

Campbell Scientific’s SDM devices and multiplexers are not supported.

Sensors
The CR216 cannot make differential measurements and is not compatible with thermocouples, our geographic position sensor, fuel moisture/temperature probe, and soil heat flux sensors. However, it can measure a variety of sensors including SDI-12 sensors and 4 to 20 mA sensors. Our CS625 Reflectometer, 109 Thermistor, and CS15 Electric Current Sensor were specifically developed for our CR200-series dataloggers. Other compatible sensors include wind sets, tipping buckets, and barometers. For a complete list of compatible sensors, see the CR200-series brochure.

Communications
The CR216 can communicate with a PC via direct connect, NL100 Ethernet interface, MD485 multidrop modem, and digital cellular modems. Data can be viewed on the CD295 DataView II display or a PDA (PConnect or PConnectCE software required).

The CR216's internal spread spectrum radio can transmit data to other CR216 loggers or RF416 spread spectrum radios. Certain CR216 settings must match the RF416 settings for communications between the data logger and radio to be successful. The factory default settings of these devices do not match; therefore, they must be reconfigured before communications can take place. Refer to the following application note for more information.

Quick Reference Guide for Setting Up RF401-to-CR206 Communications

If the CR216 is in the transparent mode, it can communicate with the retired CR215 loggers or RF415 radios.

Enclosures
Applications with minimal power requirements can use the ENC200 enclosure to house the data logger and the #16869 sealed rechargeable battery. The ENC200 cannot house a barometer or a battery that is larger than the #16869. However, an ENC10/12 or ENC12/14 enclosure is adequate for most CR216-based systems.

Power Supplies
When connected to the on-board charging circuit, the sealed rechargeable battery should be 7 Ahr or smaller. Using larger batteries with the data logger's built-in charger may result in excessive PC board heating. This is especially a concern when the battery is deeply discharged or failing with a shorted cell. Campbell Scientific also recommends that solar panels be 10 W or less and wall chargers be 1 A or smaller.

Compatible software

  • Short Cut
  • PC200W
  • PC400 (version 1.0 or higher)
  • LoggerNet (version 2.1 or higher)
  • PConnect (version 3.0 or higher)
  • PConnectCE (version 2.0 or higher)
  • VisualWeather (version 2.0 or higher)

Before March 2005, a CD was shipped with PakCom PC software and PakBus ActiveX (OCX). Effective, 3 March 2005, our DevConfig, PC200W, and Short Cut packages began to include support for the CR200-series dataloggers. These programs are available for download from our website or are on our ResourceCD.
