ClariVue20CBL
Replacement Cable for ClariVue 20
ClariVue20CBL
OrderableReplacement Cable for ClariVue 20
Pricing
Request a quote Have pricing access? Sign in
Configuration
- w/10m per Sensor w/Ferrules on Wires-10mPart Number: 45034-10m
- w/20m per Sensor w/Ferrules on Wires-20mPart Number: 45034-20m
- w/30m per Sensor w/Ferrules on Wires-30mPart Number: 45034-30m
Select a configuration to add to your quote
- Model:
- ClariVue20CBL
- Item Number:
- 45034
Overview

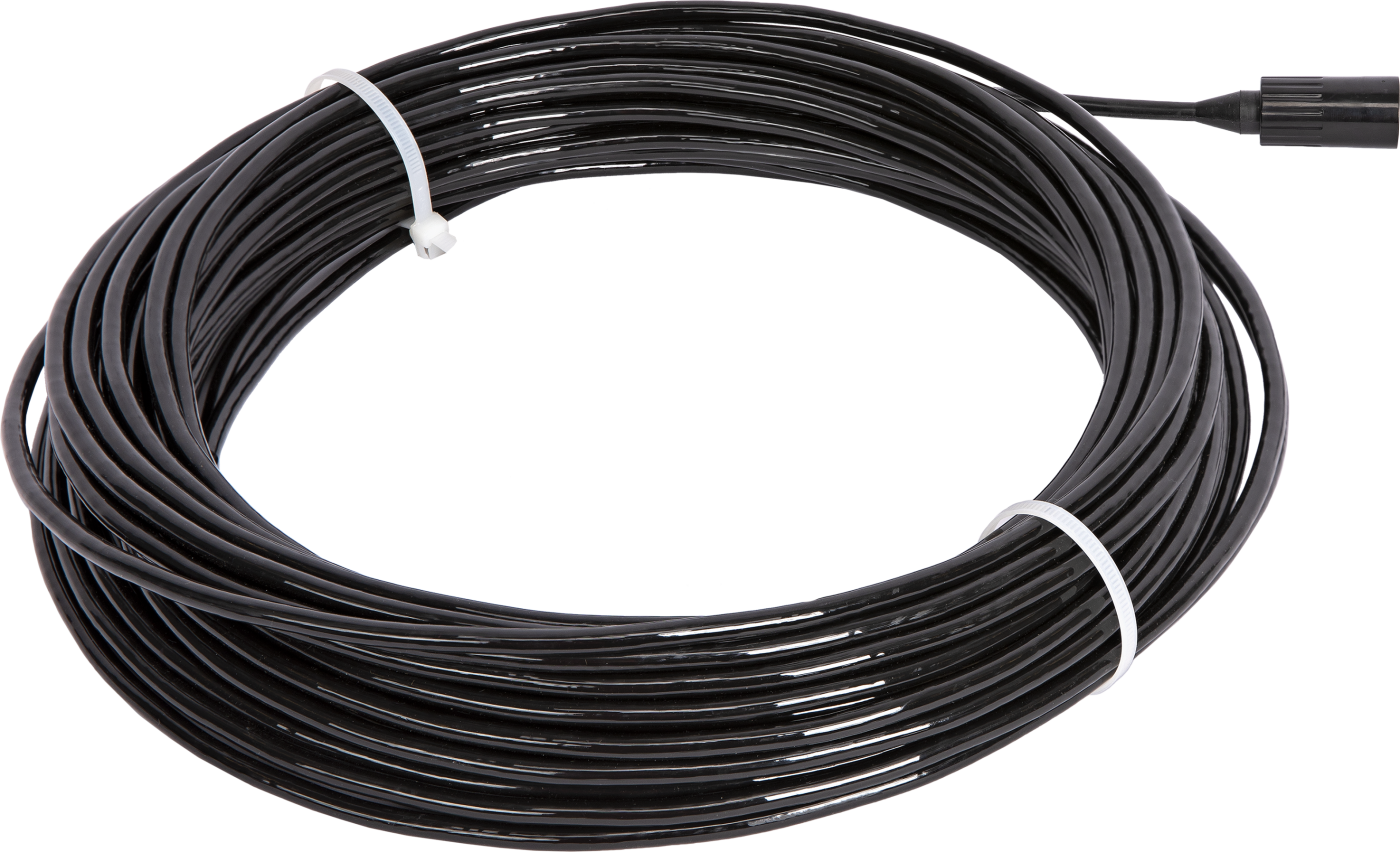

The ClariVue™20CBL is a replacement cable for the ClariVue™20 ISO 7027-Compliant, Side-Scatter, Turbidity Sensor and may be purchased to replace a damaged cable. The cable consists of six aluminum, Mylar-shielded conductors (20 AWG 19/32 tinned copper) insulated in polypropylene with a drain wire. The cable jacket is composed of black UV-resistant polyurethane. The ClariVue 20CBL is filled with a water-blocking compound that ensures water does not damage the sensor nor any equipment that is connected to the sensor.
Specifications
- Number of Conductors
- 6
- Conductors
- 20 AWG 19/32 tinned copper with drain
- Shield
- Aluminum Mylar foil
- Cable Jacket Material
- Polyurethane
- Cable Jacket Thickness
- 1.65 mm
(0.065 in.)
- Cable Outer Diameter
- 8.0 mm
(0.315 in.)
